1933 Ford 3 Window Coupe – BluePrint Roadster
FollowVehicle Quick Facts
Profile ID: 64239
Year: 1933
Make: Ford
Model: 3 Window Coupe
Markets: Classic & Antique, Driven Daily, Muscle Car, Performance, Replica / Kit, Rod & Custom
Vehicle Type: American
Contact: BluePrint Engines
Vehicle Story

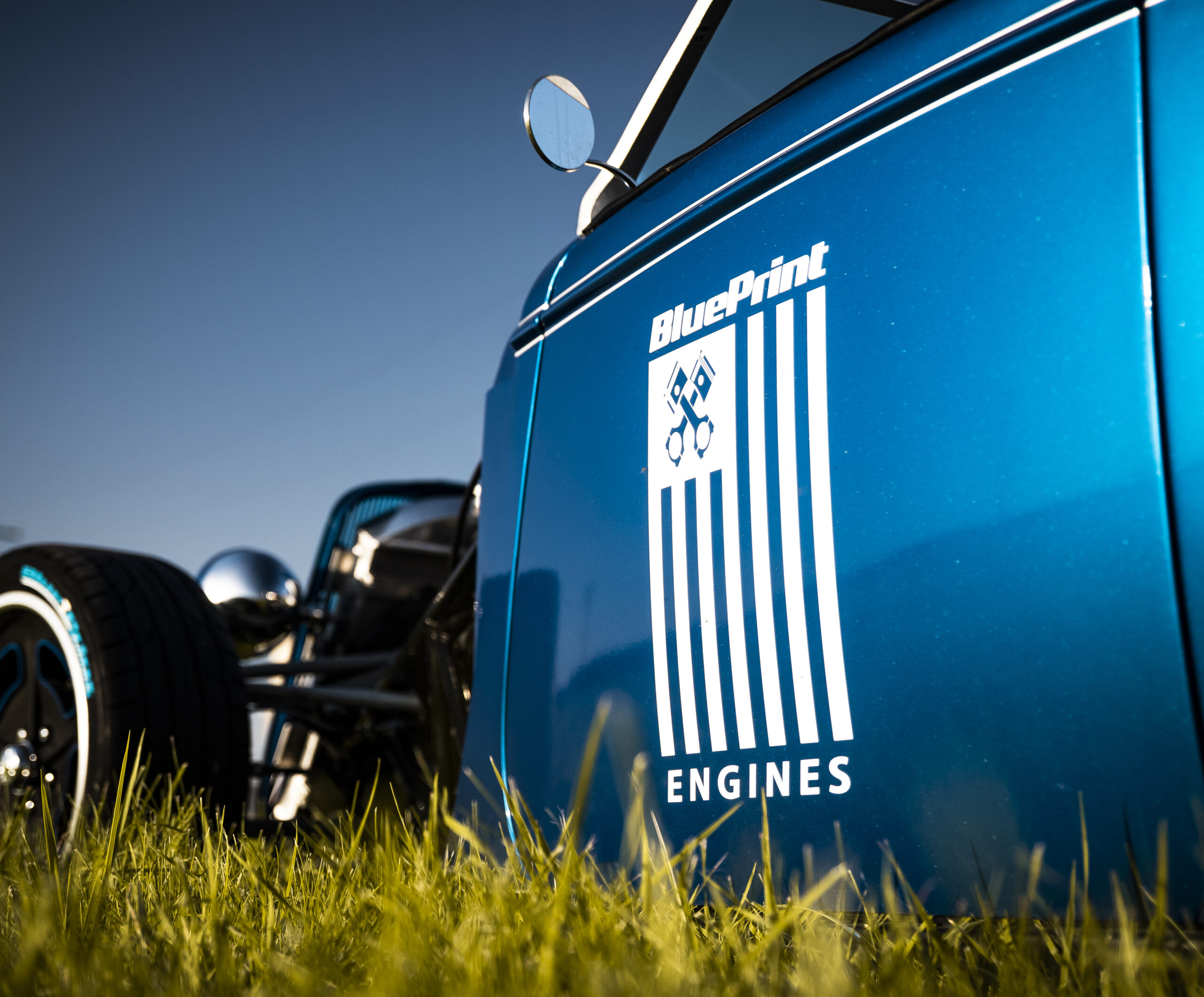

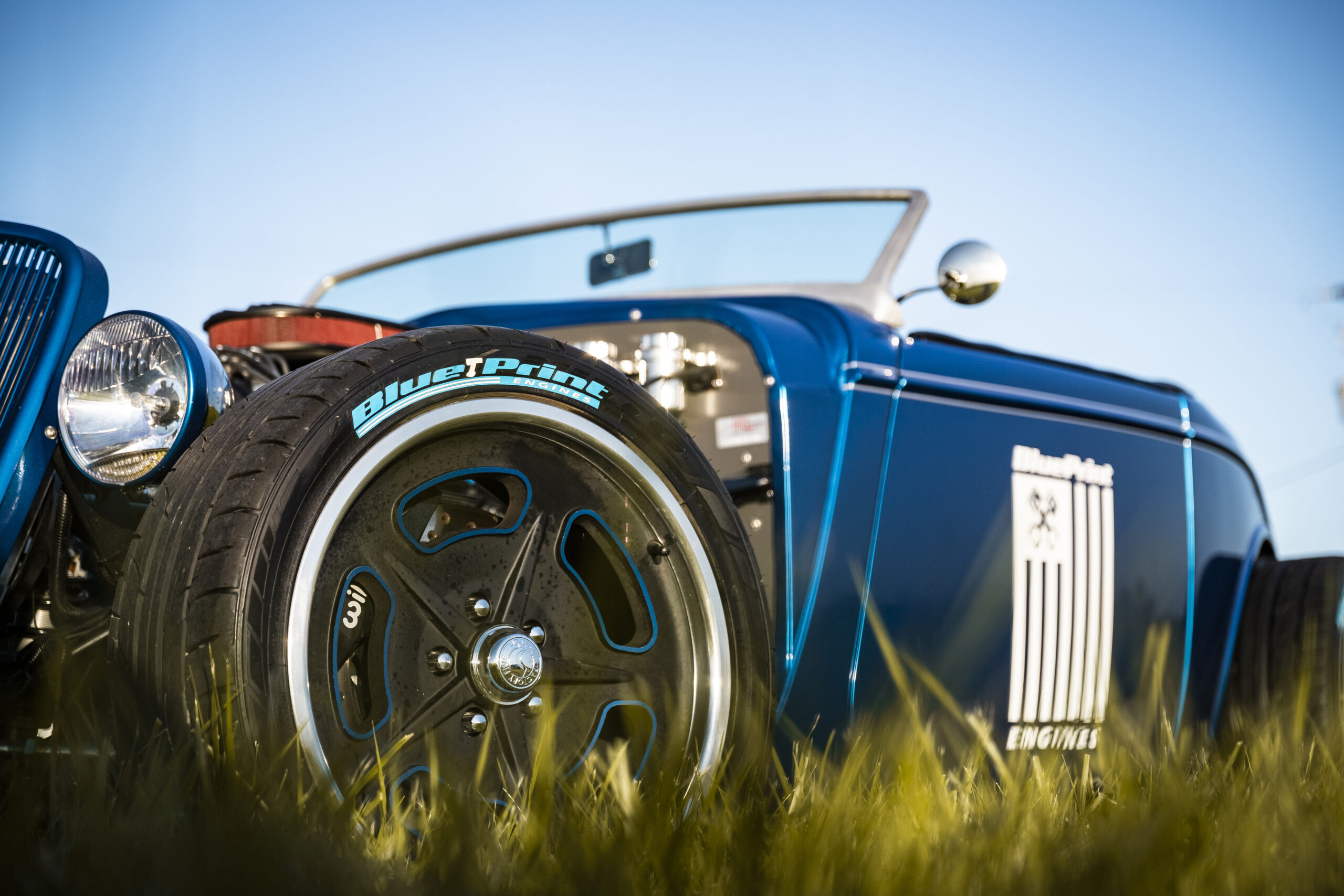

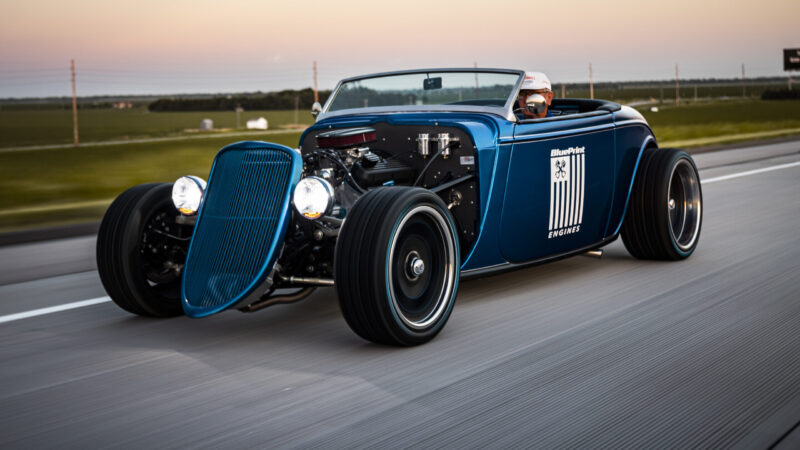

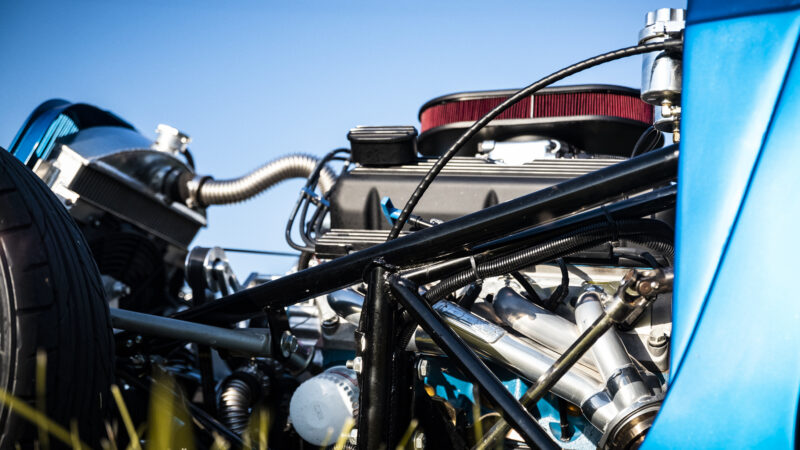

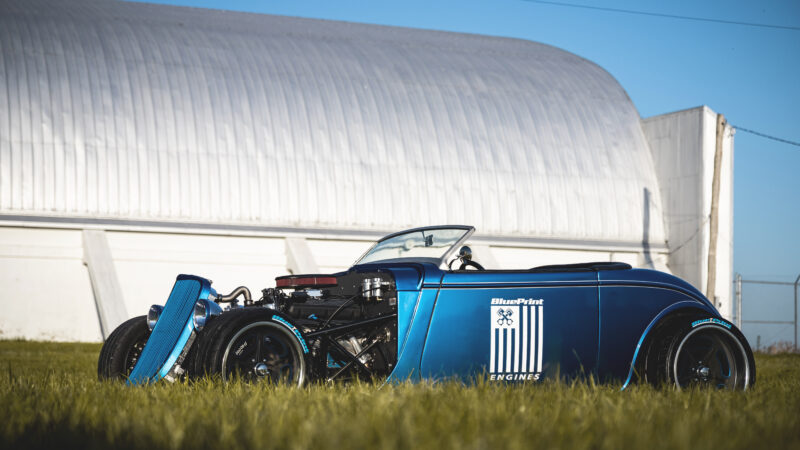

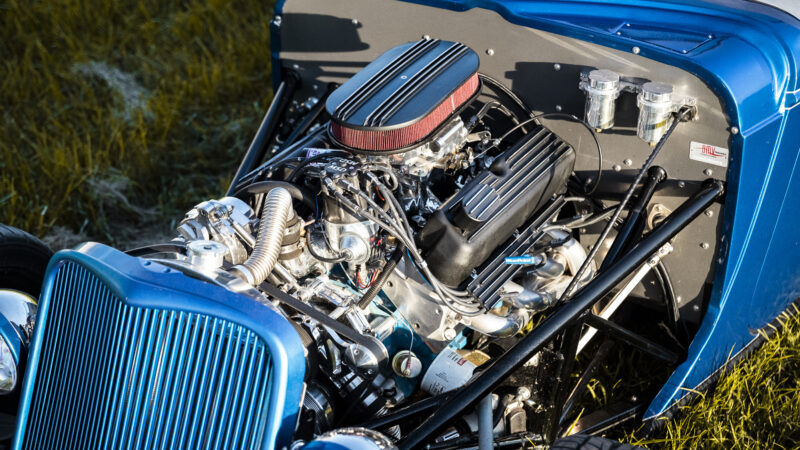

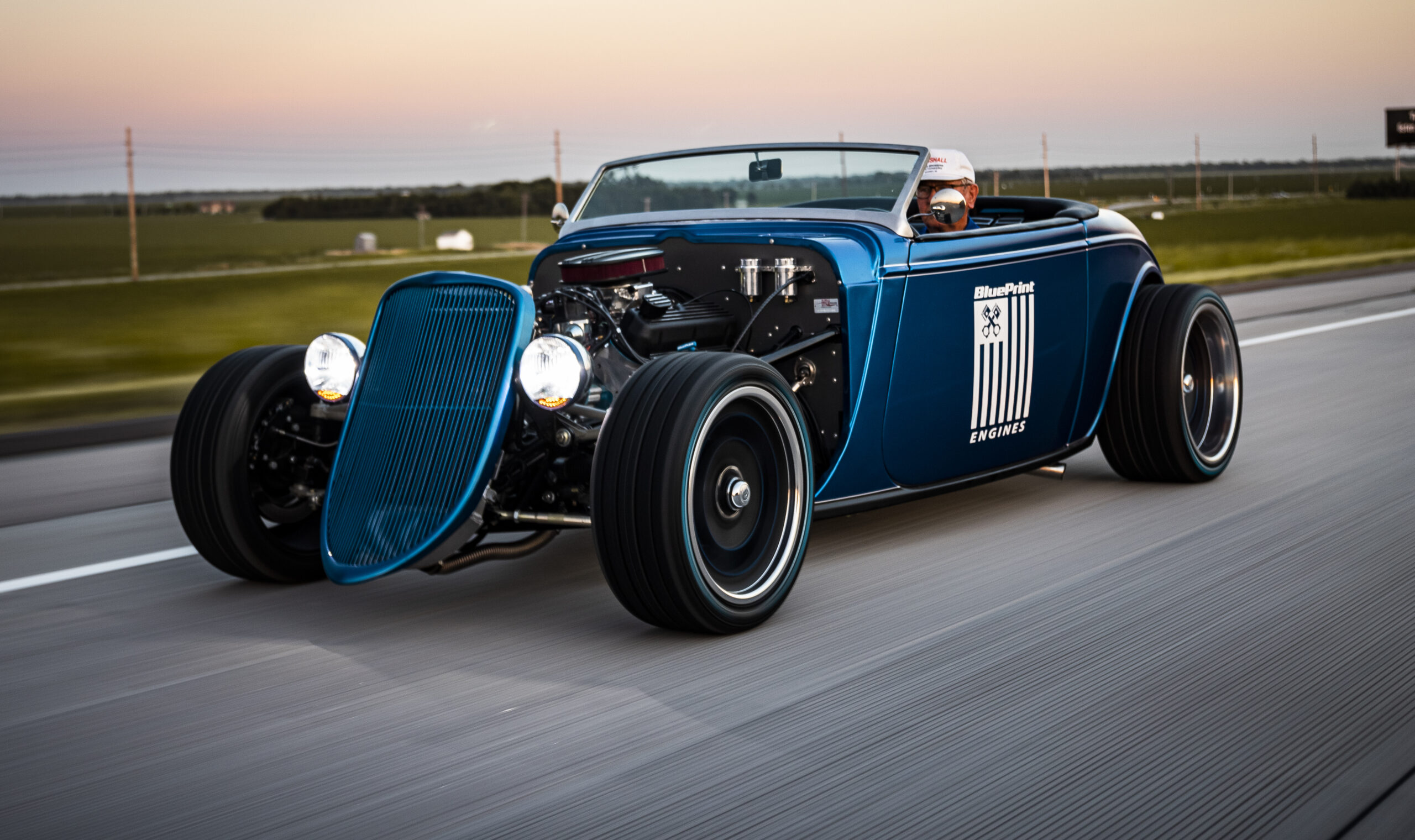

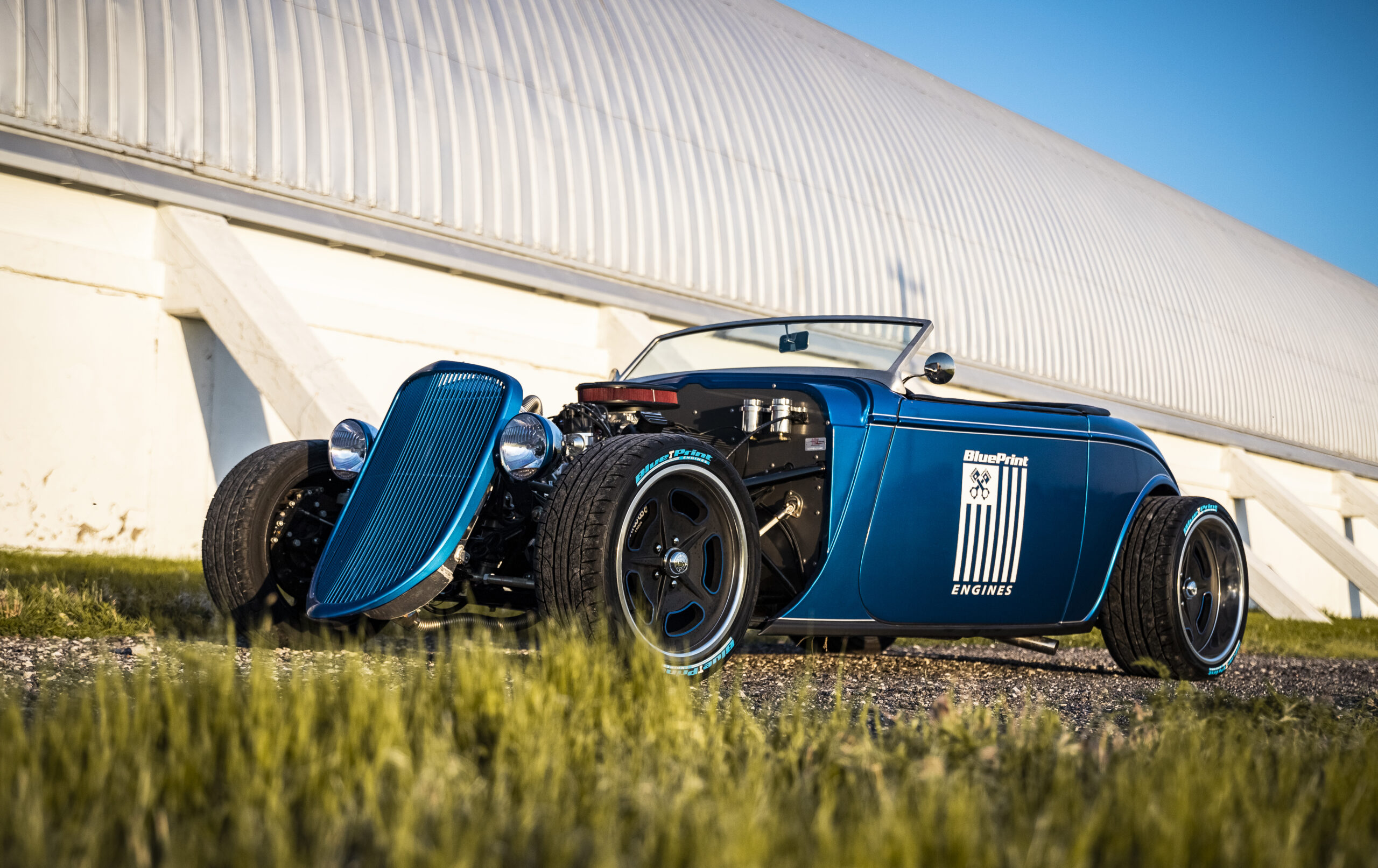

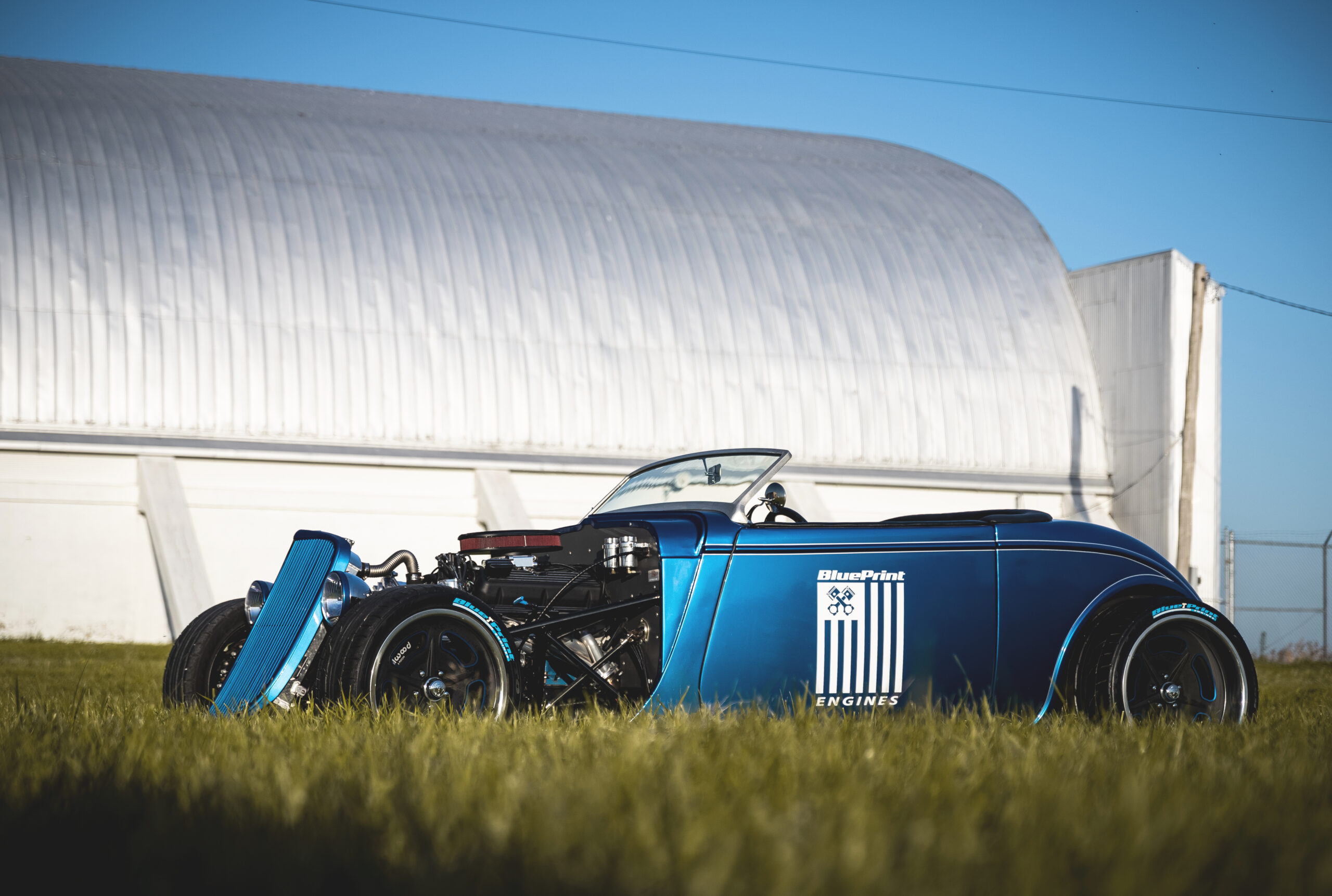

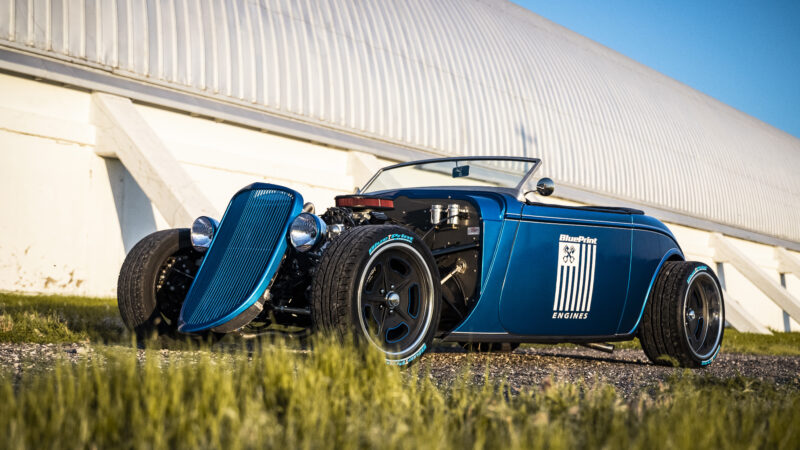

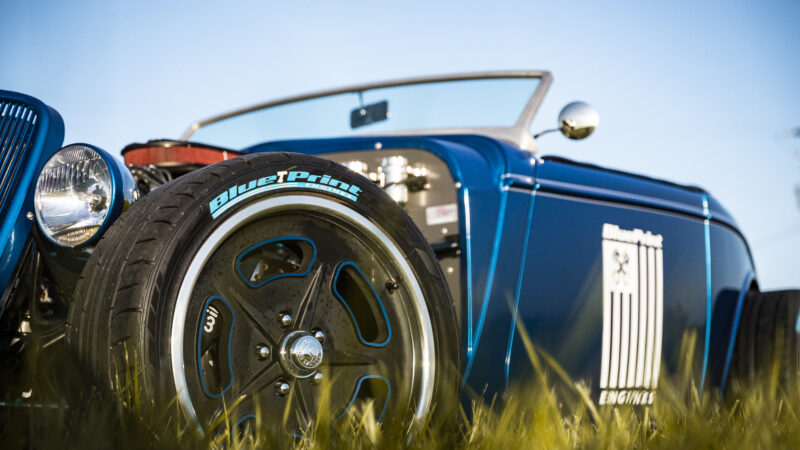

The BluePrint Roadster was built up in a collaboration with Factory Five. BluePrint wanted a great, driveable and sexy looking Roadster to promote the BluePrint Engine line up at events across the country and locally to our visitors in our Kearney, NE plant. As you can see the Roadster has a beautiful stance and drives like a dream. The BluePrint built 302ci small block Ford compatible engine producing 370hp and 350ft. lbs of torque and the TKX 5-Speed transmission provide plenty of power for this light weight Roadster. Below are some additional specifications
Horsepower & Torque:
370 hp / 350 ft. lbs.
Compression:
9.5 to 1
Fuel Delivery:
Holley Sniper 2 EFI complete system. Includes electric external mount fuel pump kit.
Manifold:
Aluminum Air Gap
Ignition/Distributor:
Ready to run distributor with ignition coil

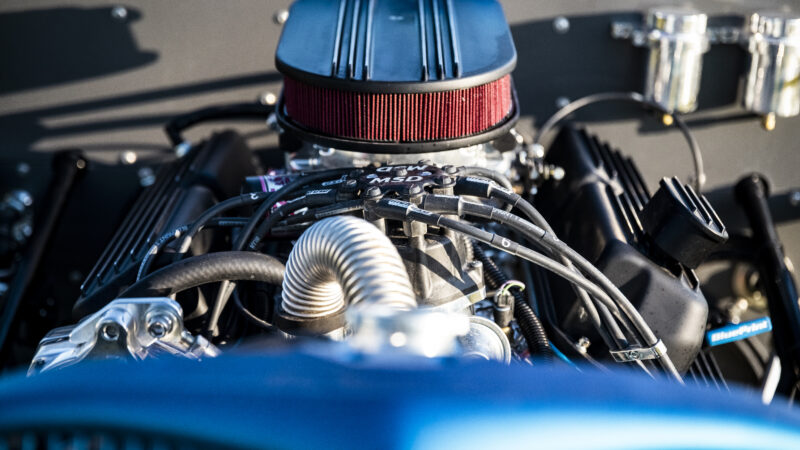

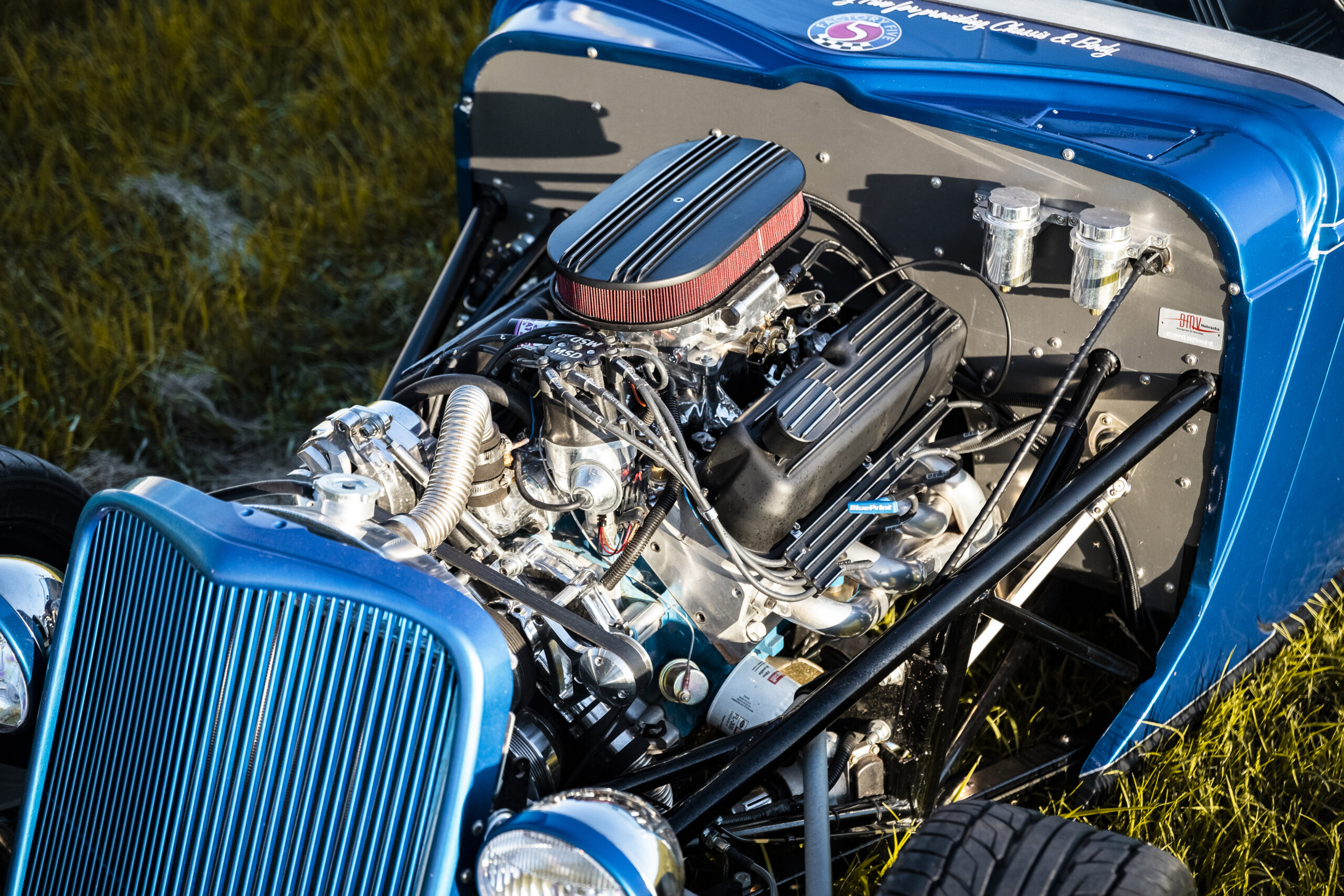

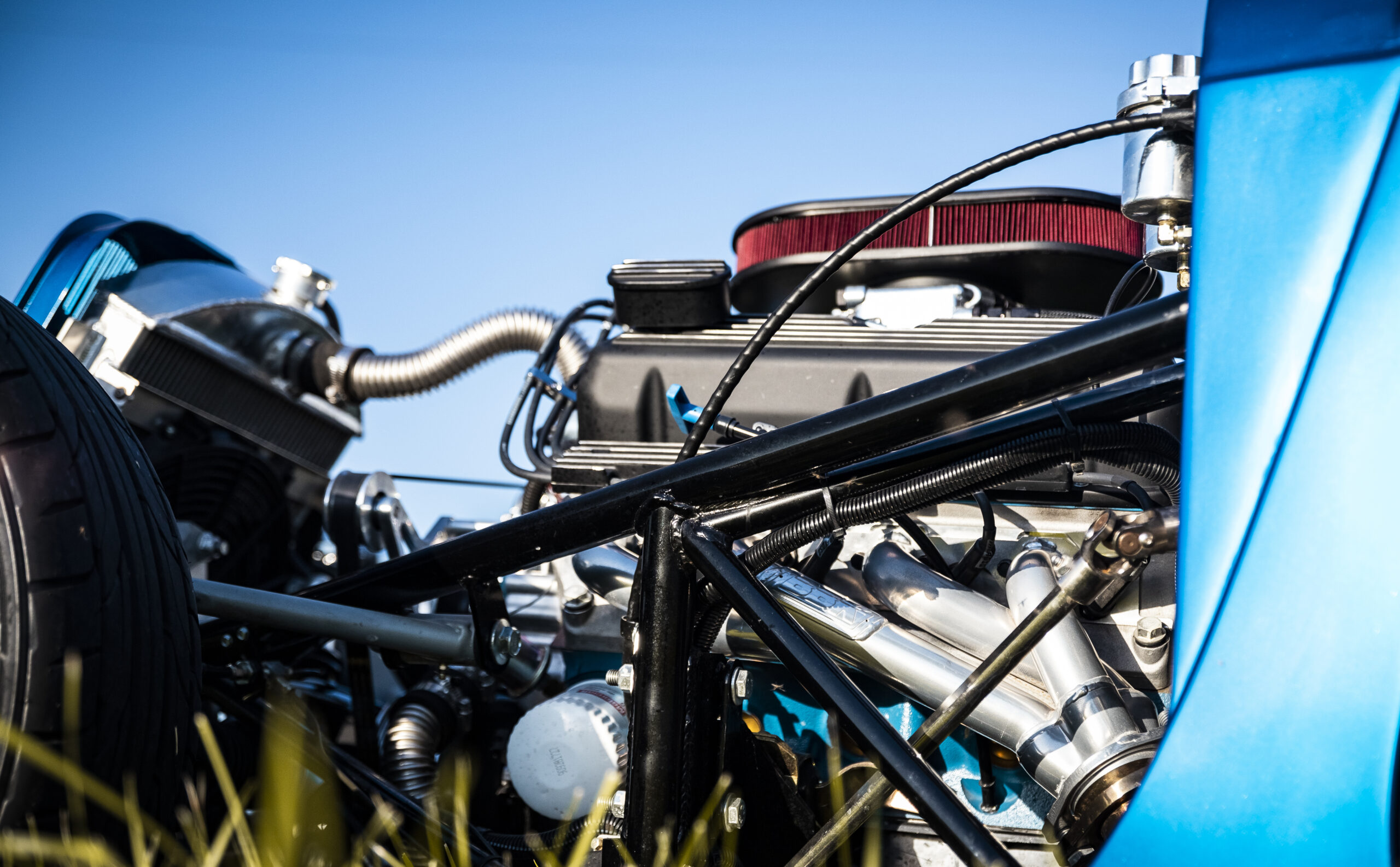

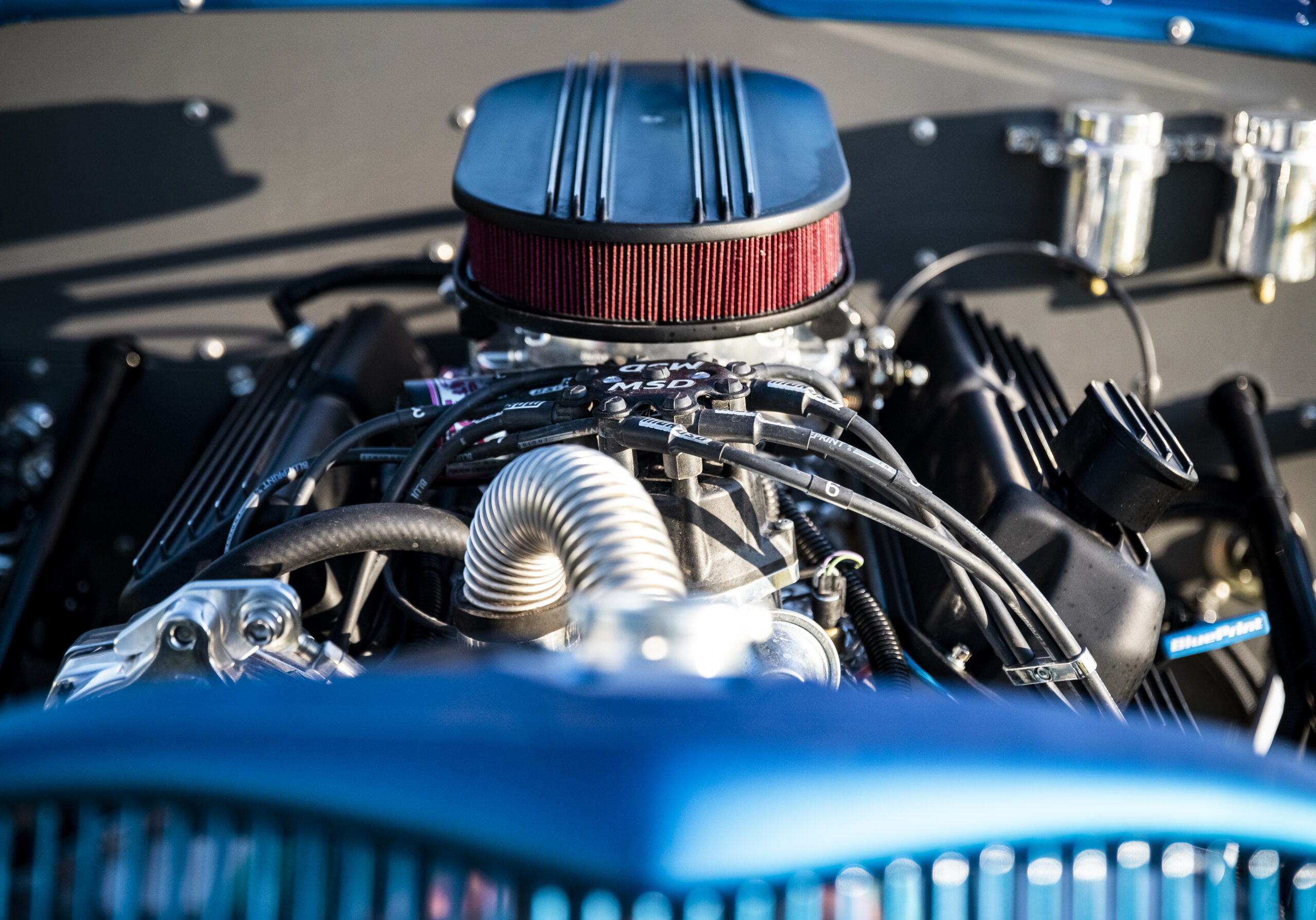

Block:
NEW BluePrint Engines High-Strength cast iron block
Increased deck thickness and strength webbing
Priority main oiling
4-bolt main
4.000″ bore
1-piece rear main seal
Improved water jacket design
Rotating Assembly:
Steel crankshaft
Rods w/ 150,000 psi bolts
Hypereutectic pistons
Balanced rotating assembly
Hydraulic roller camshaft
Heavy duty roller timing set
Heads:
BluePrint Performance Aluminum
58-60cc Chamber, 190cc runner
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
(BP Aluminum Head Part# HP9009)
Cam Specs:
Roller, .543 Intake
.554 Exhaust & 218 Intake
226 Exhaust duration @ .050 – 112 degree lobe separation
Also Includes:
Valve covers
Harmonic balancer
Water pump
Air cleaner
Spark plugs & wires
Timing cover
Painted oil pan
Brass freeze plugs
