Vehicle Story

1934 "Henry" Ford Tudor Project: Build Sheet

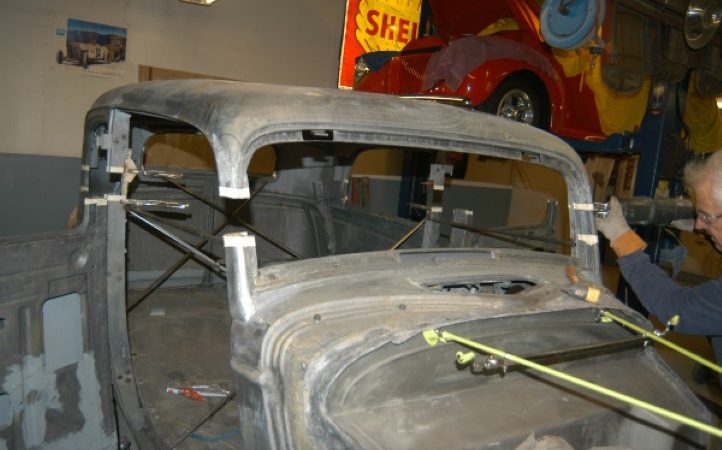

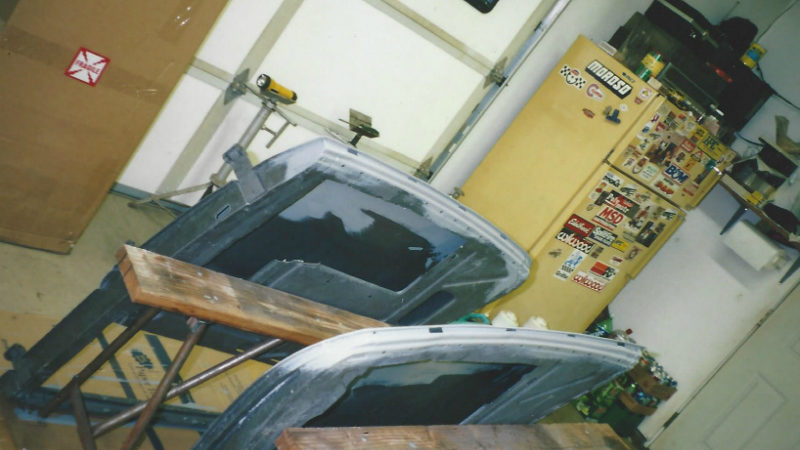

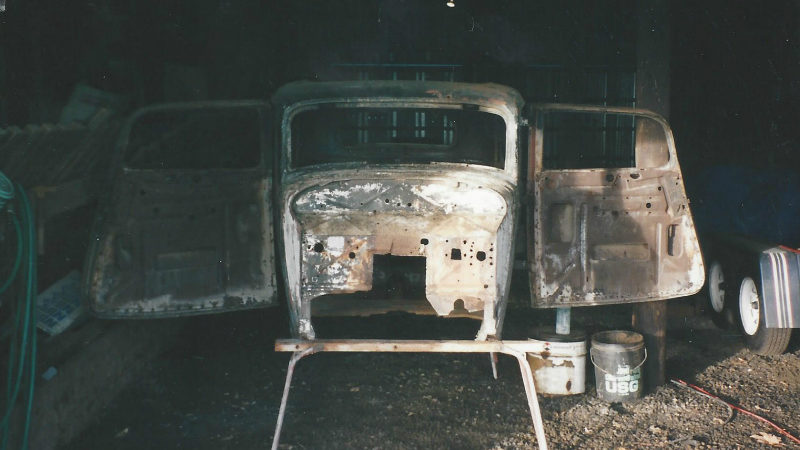

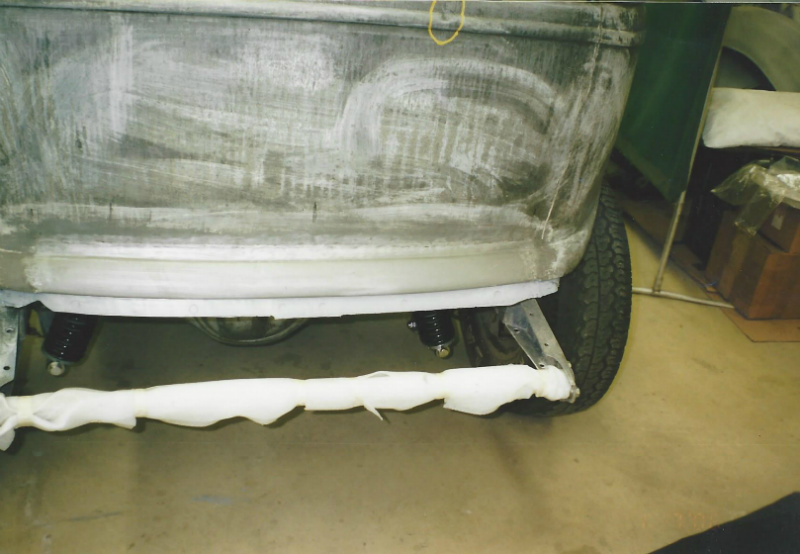

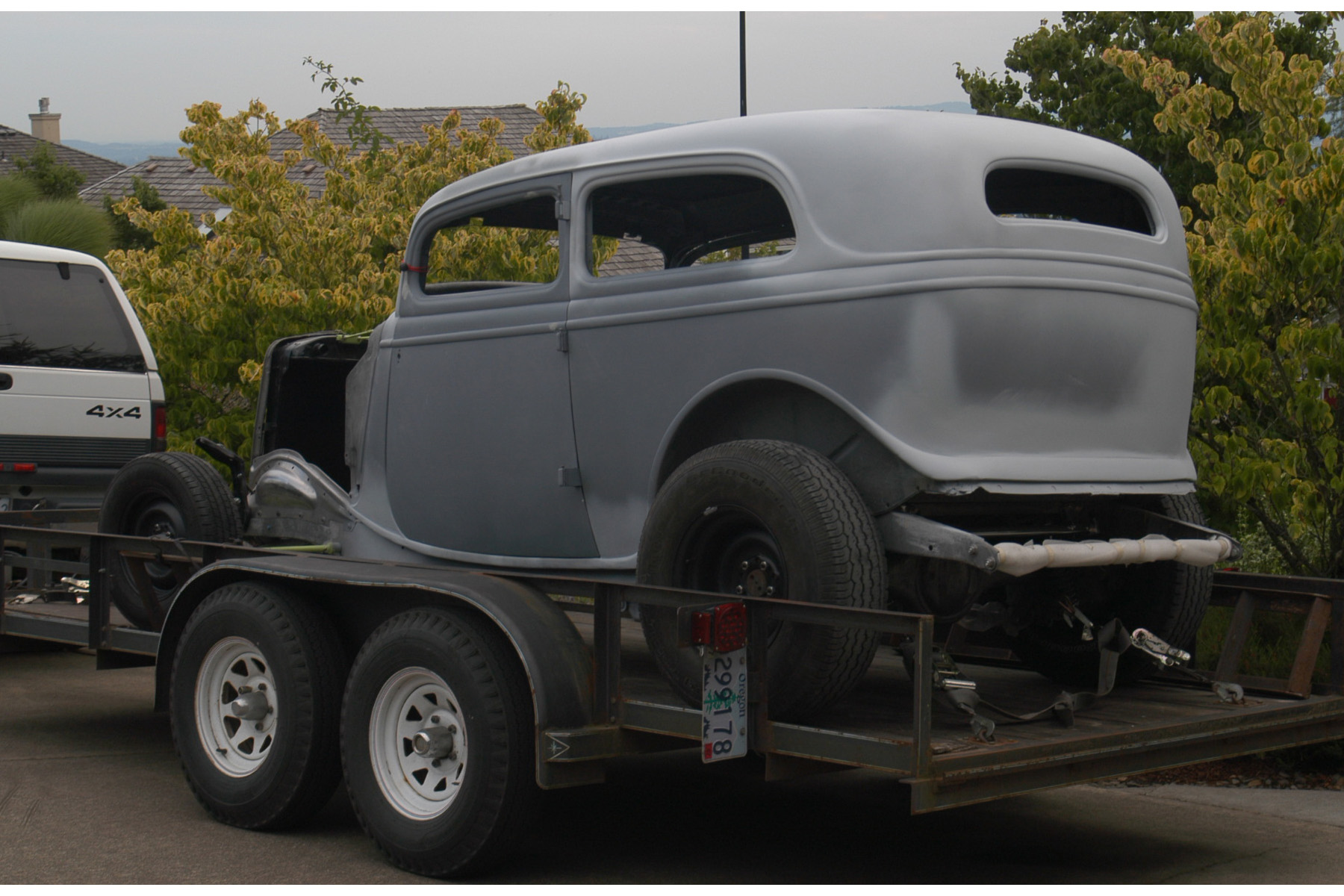

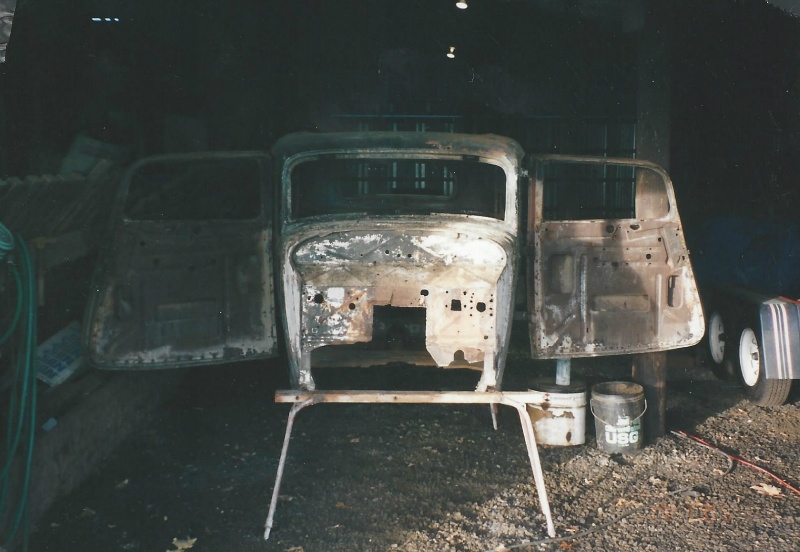

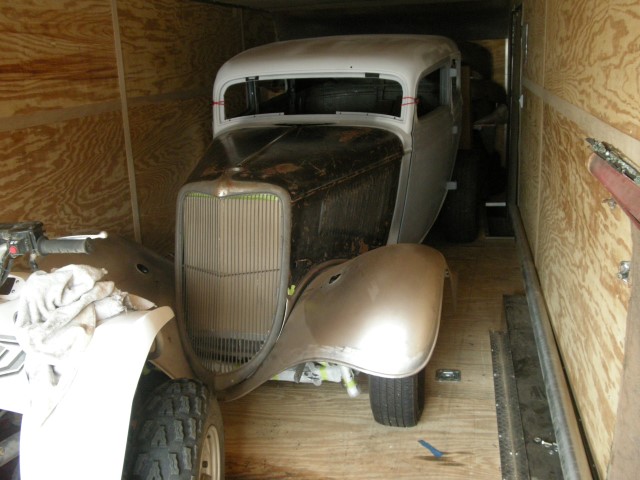

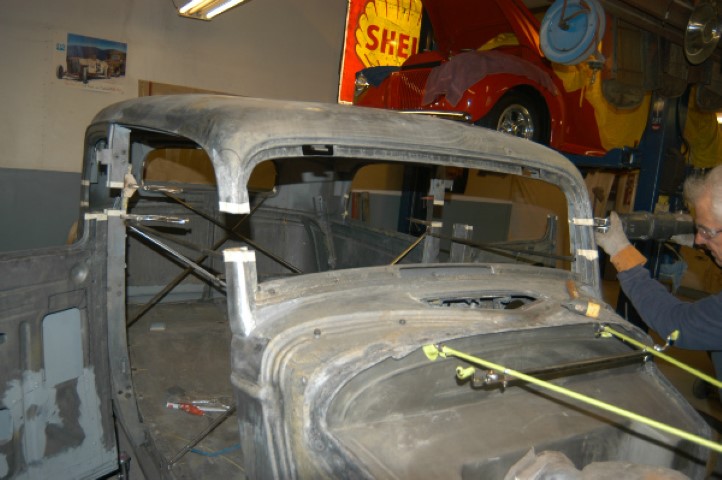

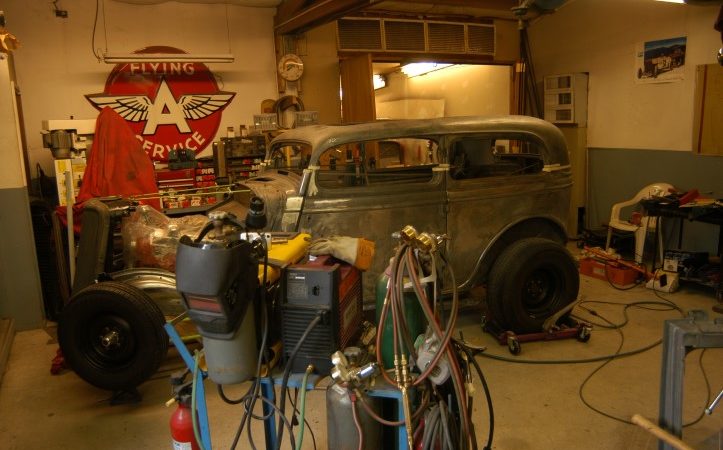

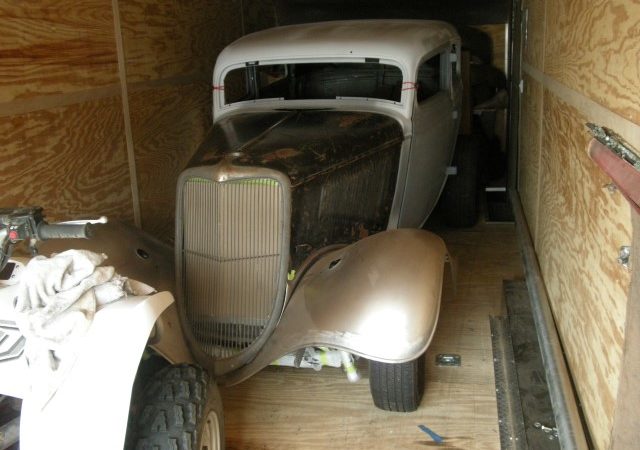

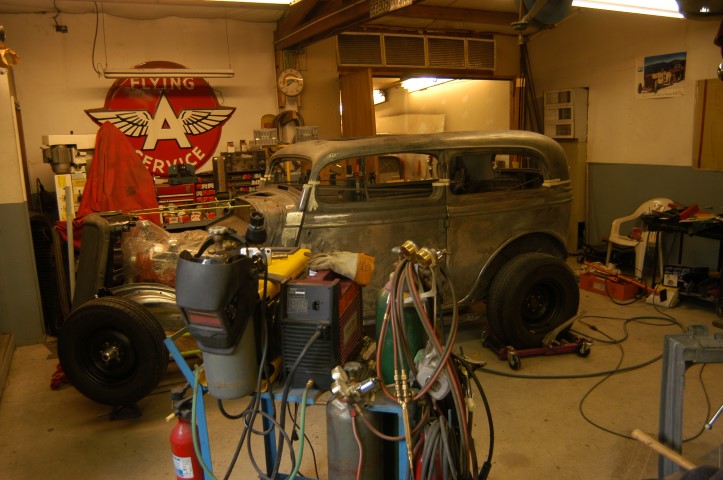

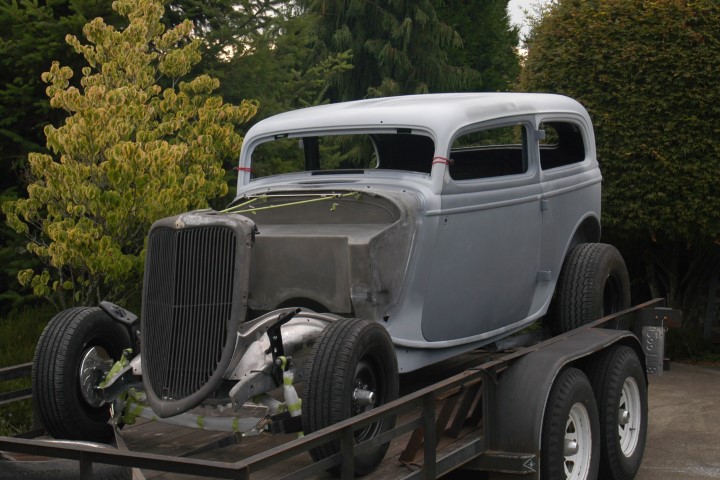

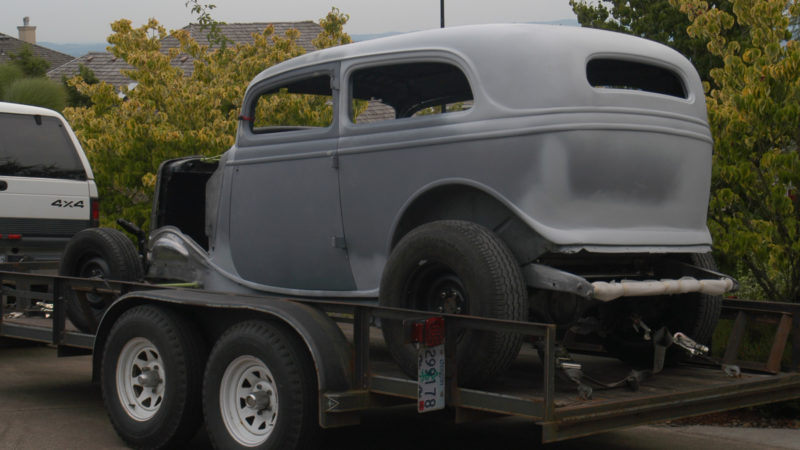

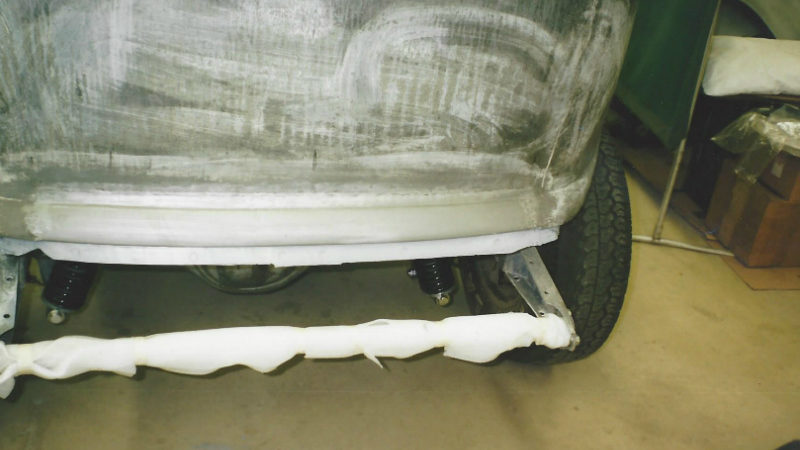

This Professionally upgraded/restored 1934 Original Ford Tudor Sedan was being built to be driven. The sheet metal is in excellent condition with the replacement of the floor and rockers. Repairs were also made to the door skins, rear lower belt line and typical areas requiring patch panels. The Tudor is chopped 3-inches with a filled roof opening. My build quality can be viewed in my "Service Profile" link below, for the 34 Ford Coupe “Black Ice” and 33 Ford Herzog Rumble Seat Roadster. Both are award winning cars.

Chassis:

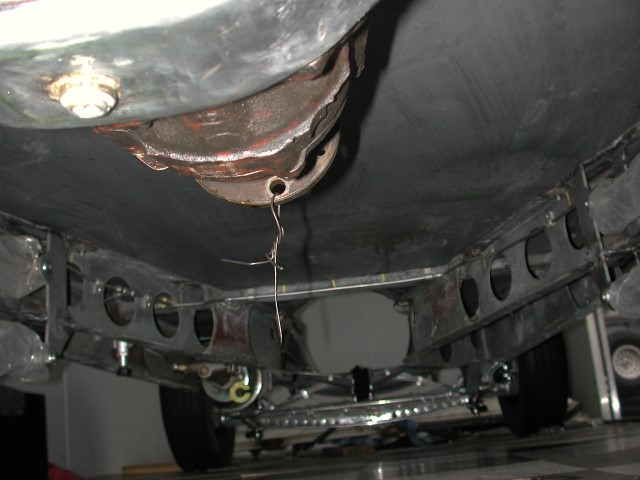

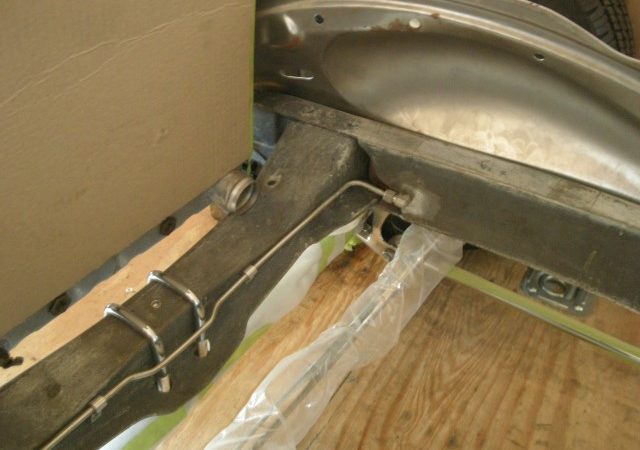

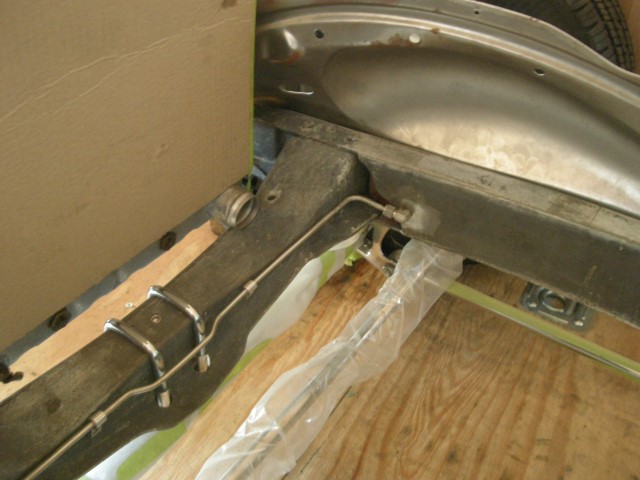

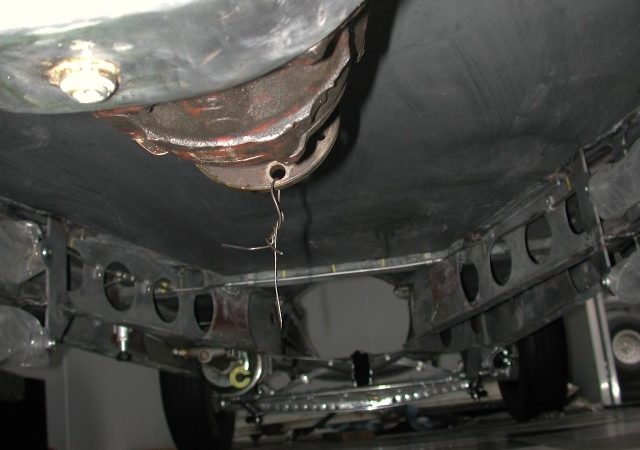

  • Frame: Original, boxed and treated
  • Wheelbase: Stock 114 inches

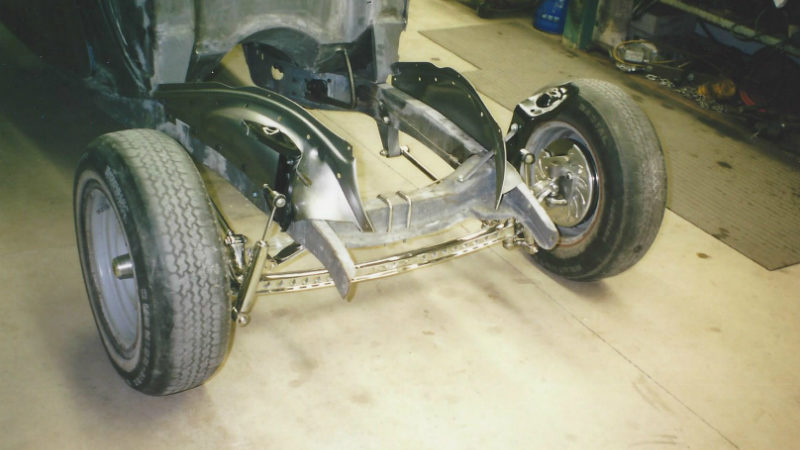

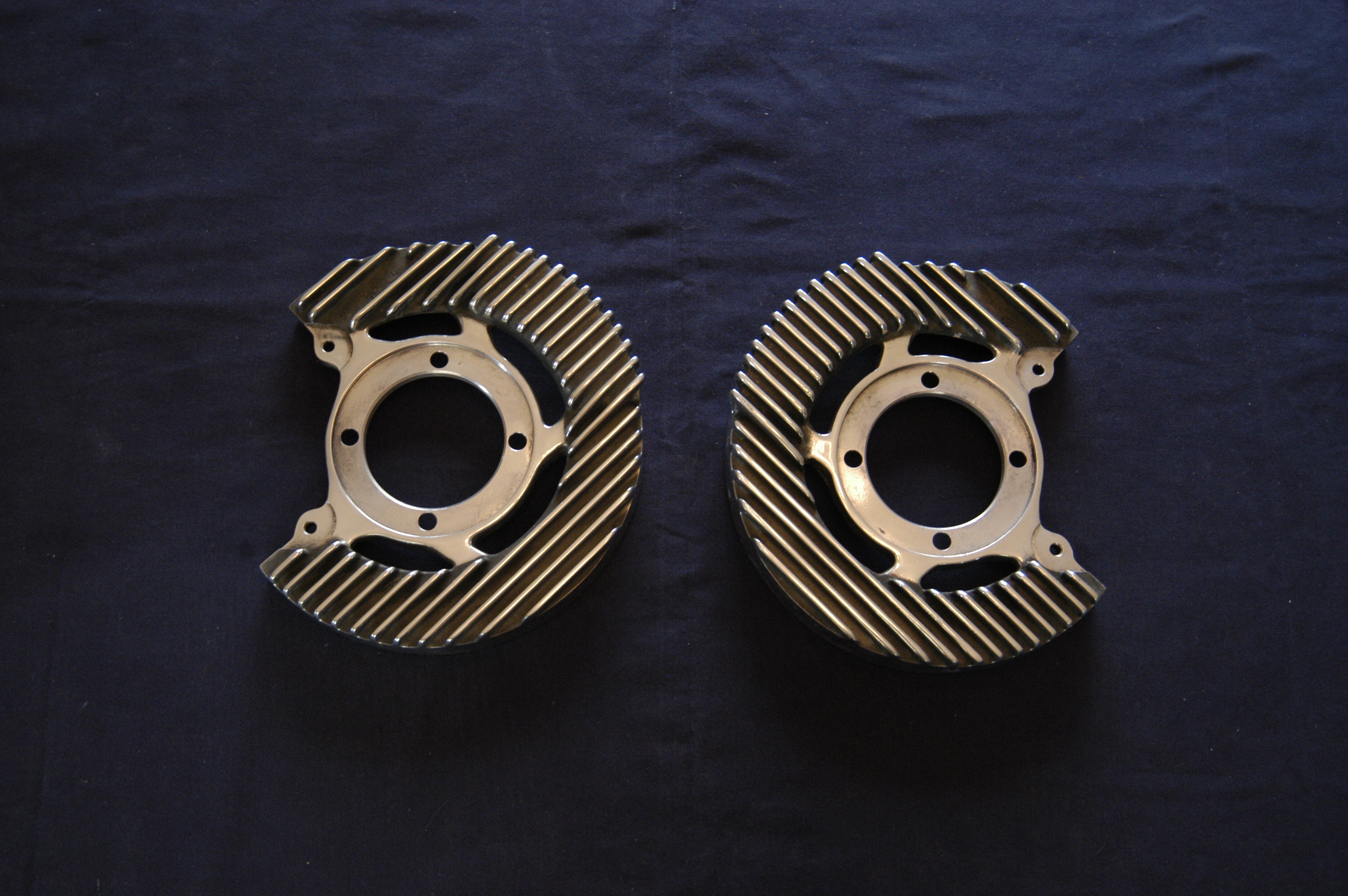

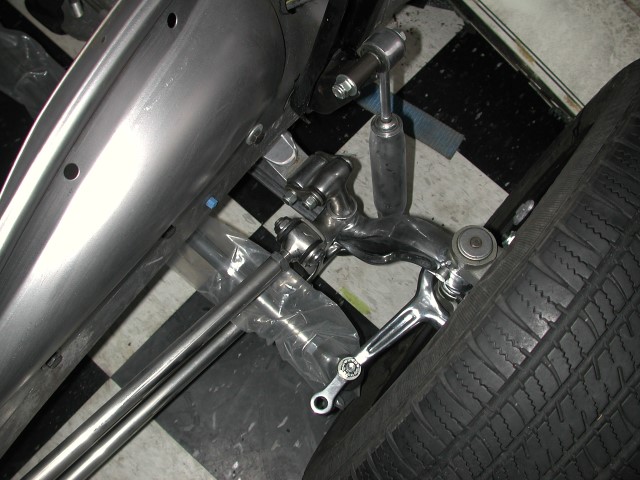

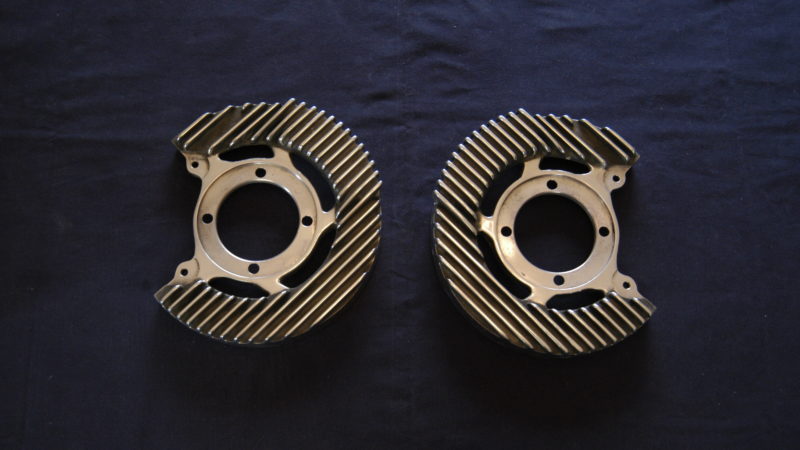

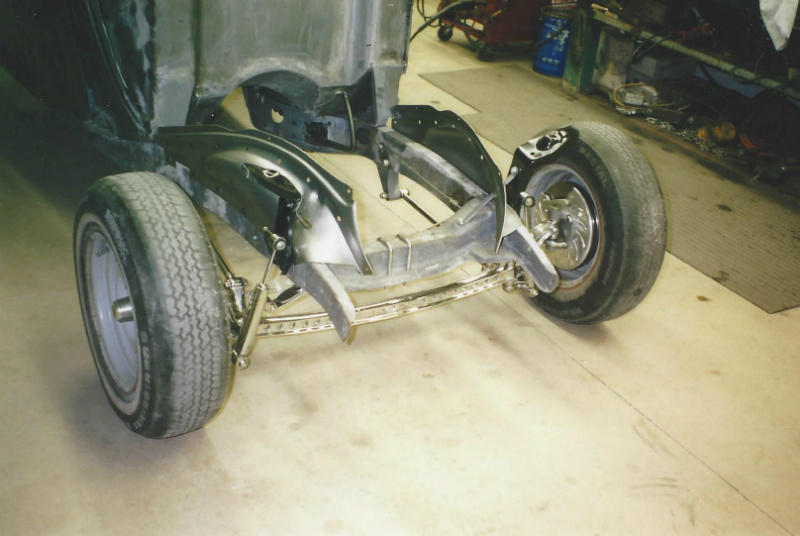

  • Front Suspension: 4” dropped Super Bell axle, chrome plated Posie Spring, chrome parallel 4 bar radius rods, chrome panhard bar, chrome spindles and finned aluminum premium backing plates

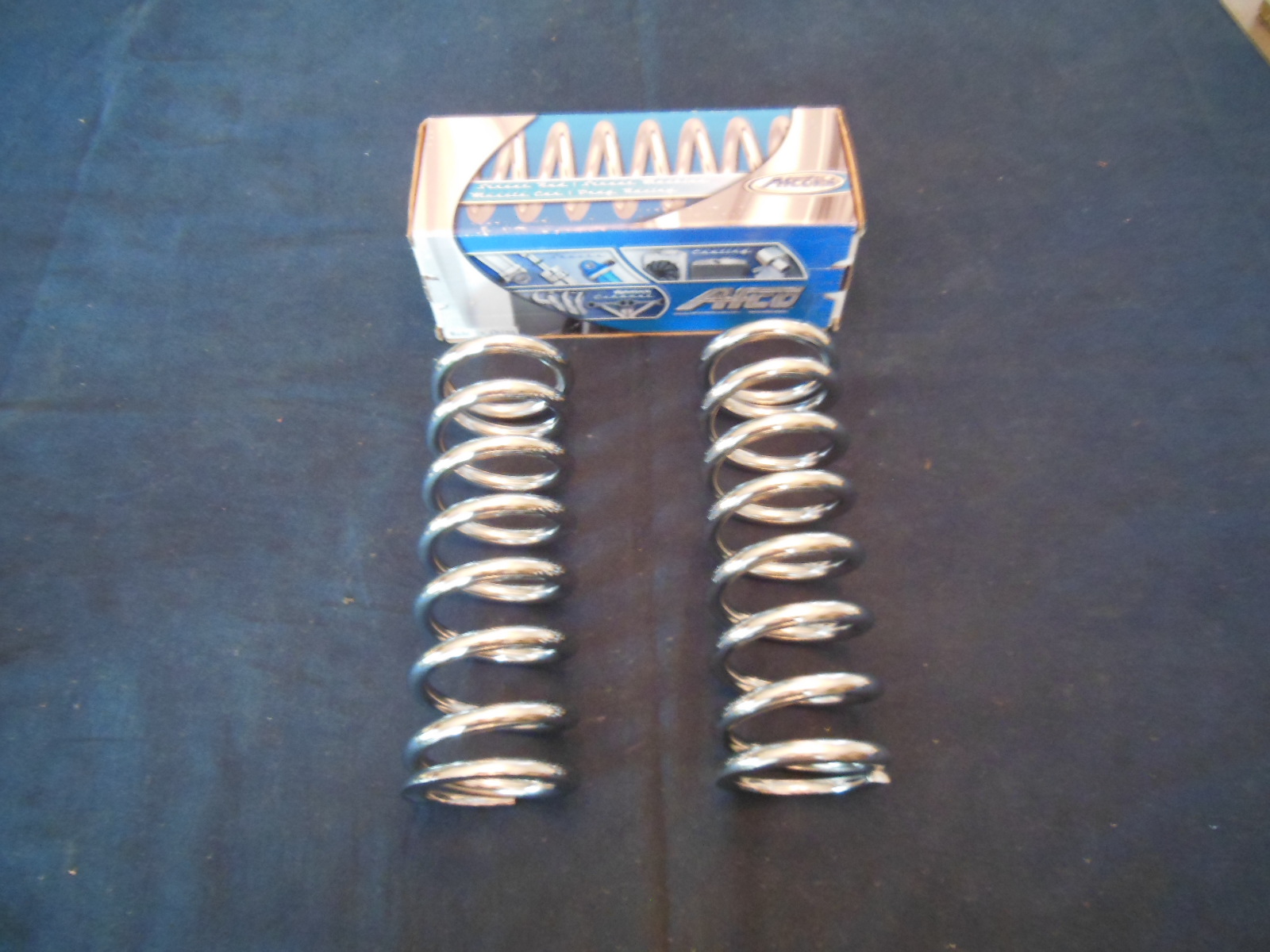

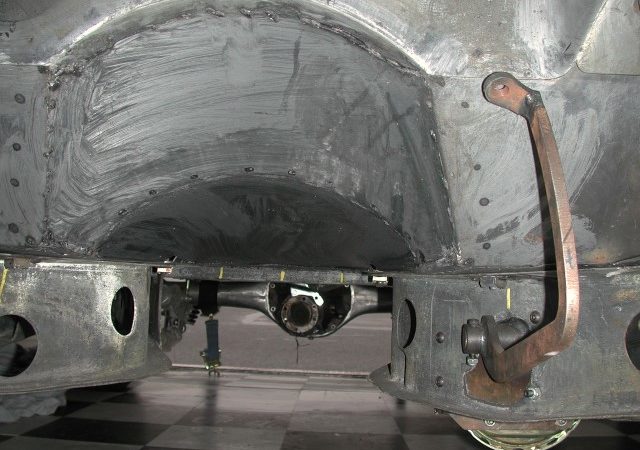

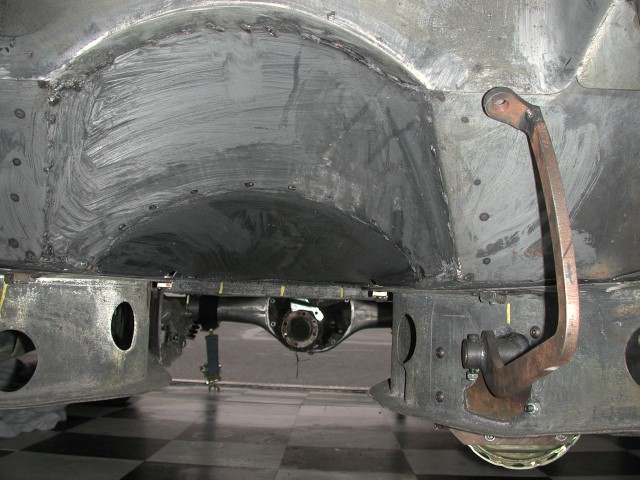

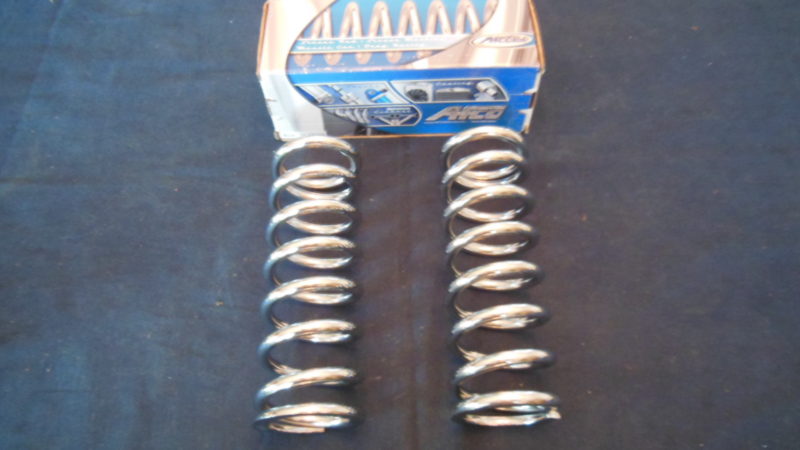

  • Rear Suspension: Chrome parallel 4 Bar w/ coil-over shocks, Chrome panhard and sway Bar and Lincoln 9-inch differential

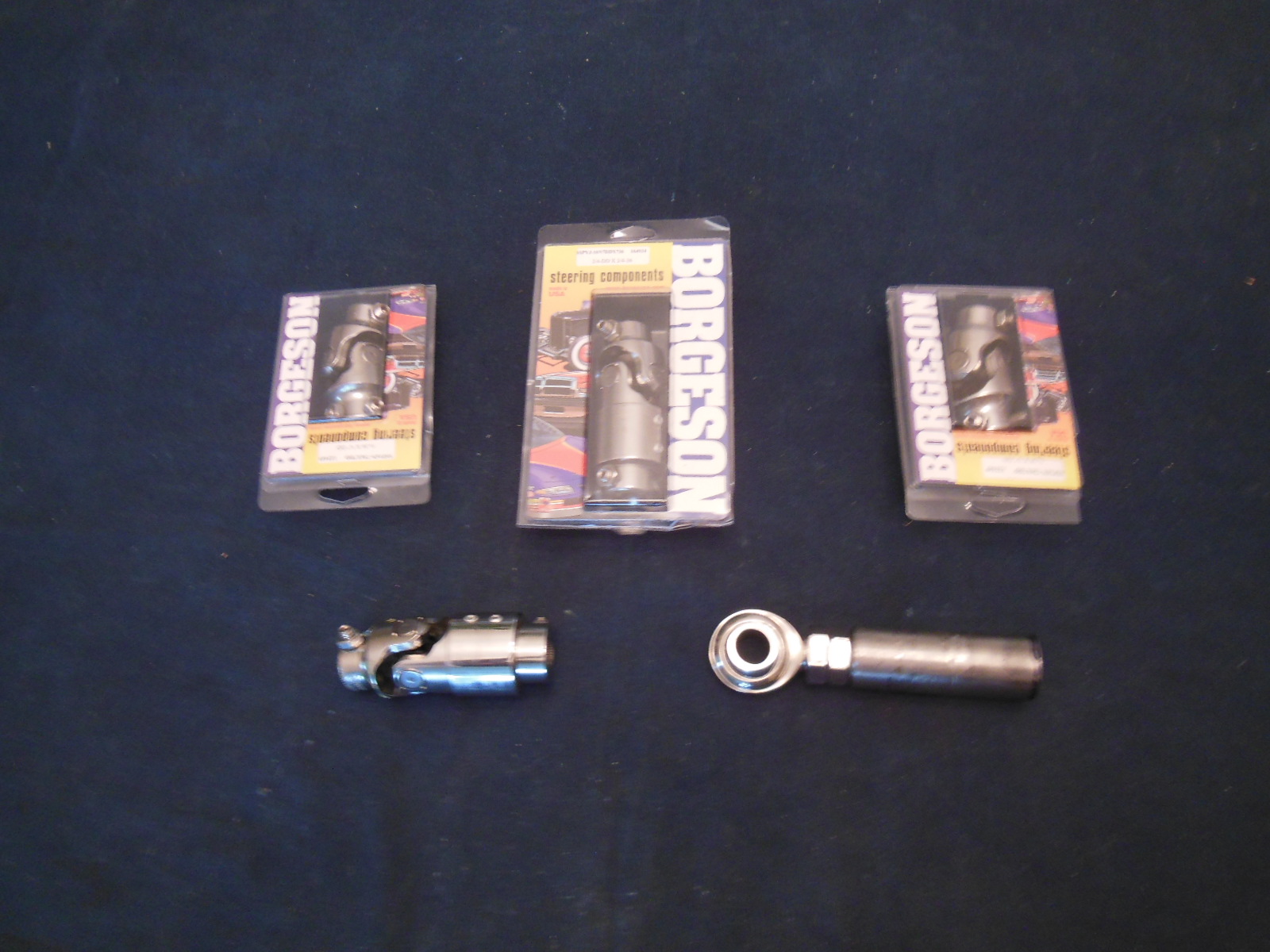

  • Steering: Vega with Borgeson stainless steel u-joints
  • Master cylinder assembly: Power under floor for Automatic Transmission installation
  • Brakes: 4 Wheel Disc: Wilwood - front, Lincoln - rear
  • Front wheels/tires: 15” x 6” rollers
  • Rear wheels/tires: 15” x 6” rollers

Body

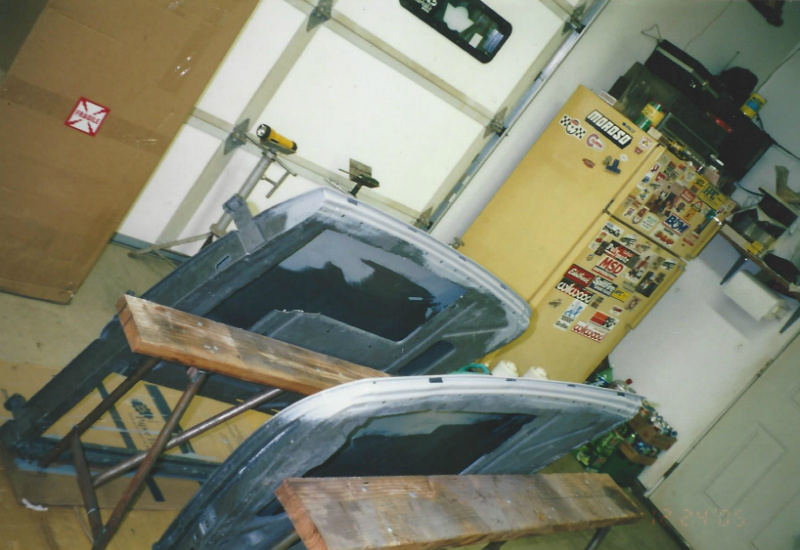

  • Original restored and chopped & filled Henry Ford steel body
  • Original un-chromed Grille
  • New after-market, splash shields, steel fenders, fender supports and fuel tank cover
  • New Rootlieb 4-piece Hood #620 Plain Tops/ Stock Sides w/ louvers
  • New Bob Drake reproduction running boards
  • Bitchin “Big Block” firewall
  • Original windshield

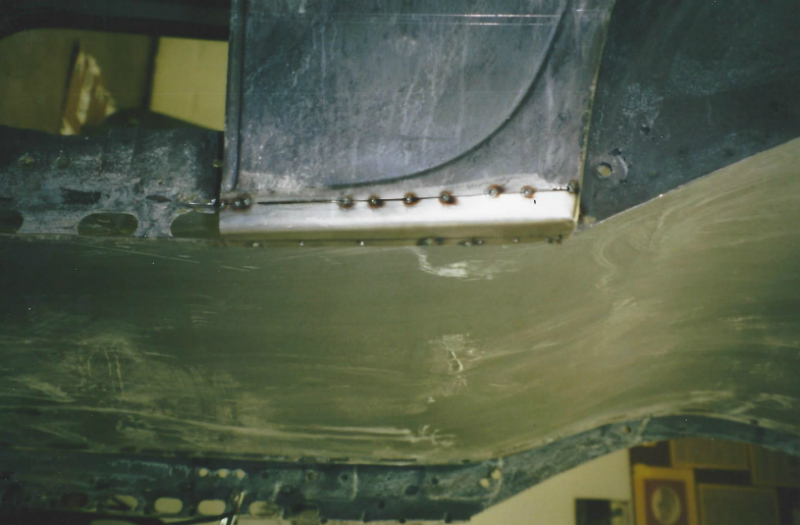

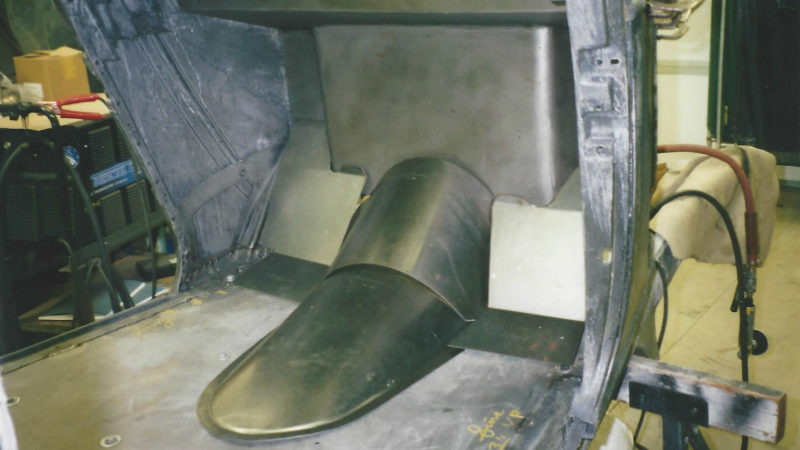

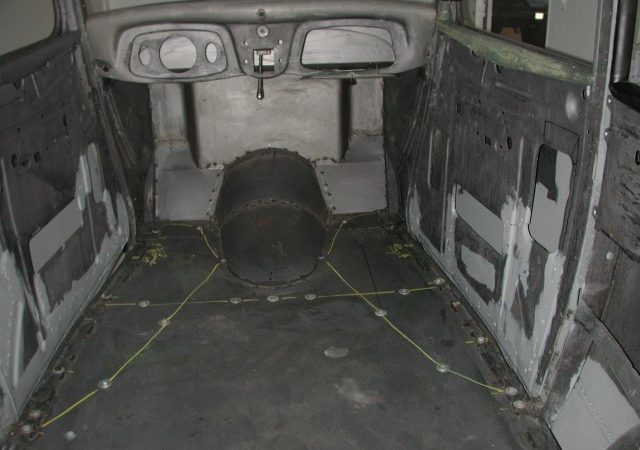

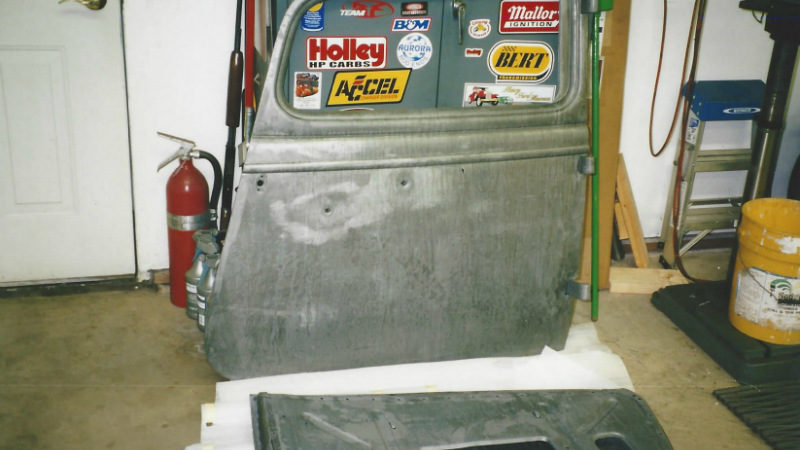

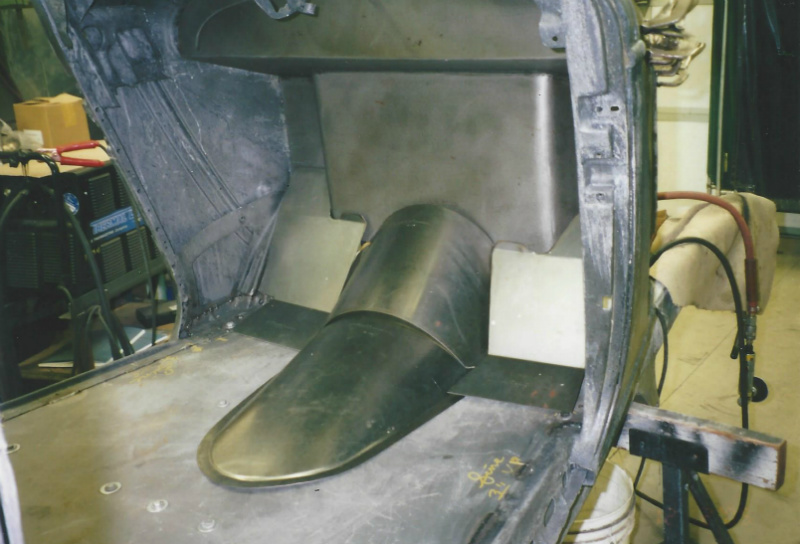

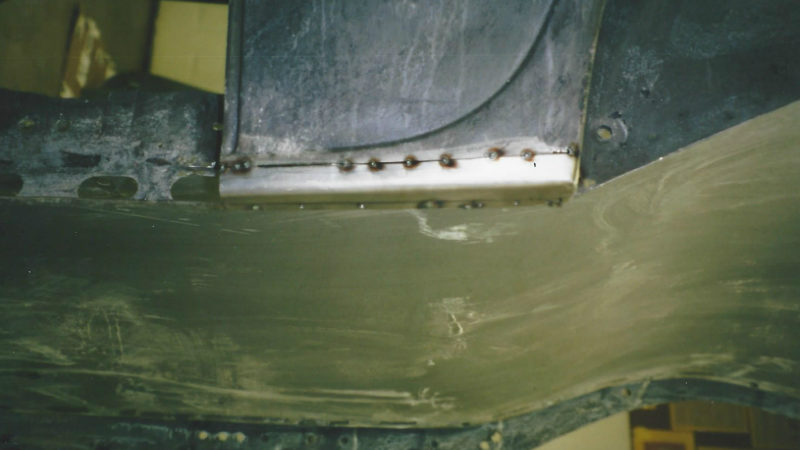

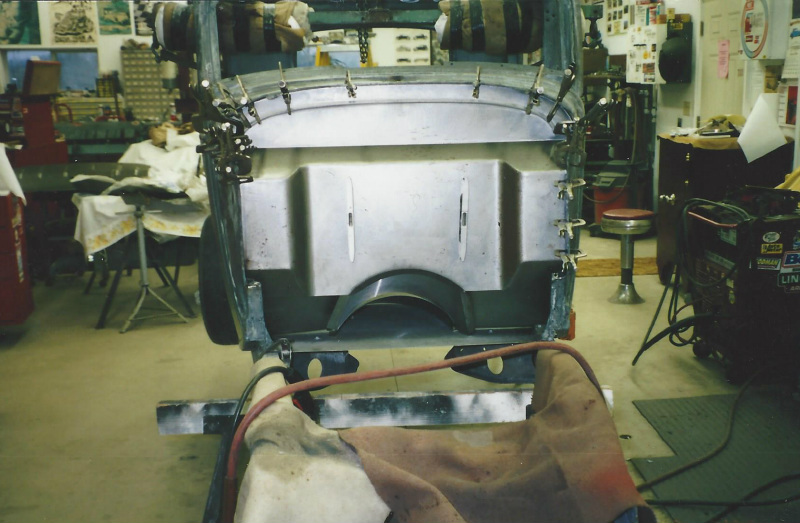

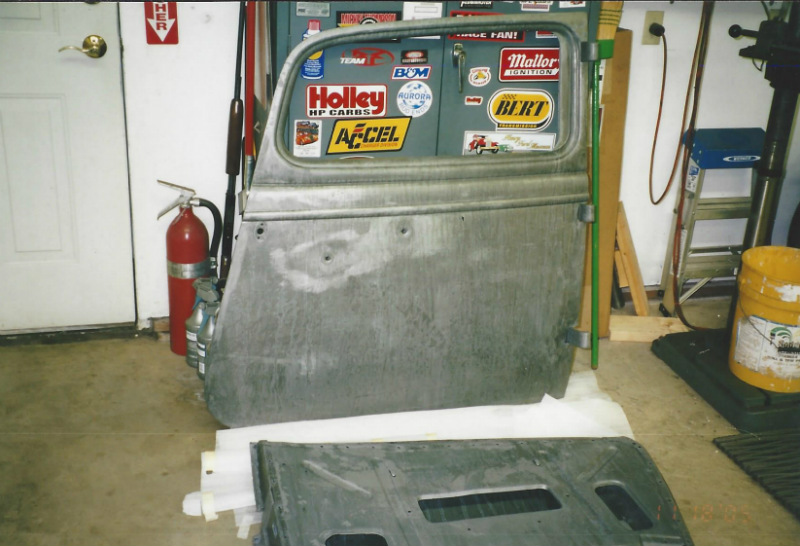

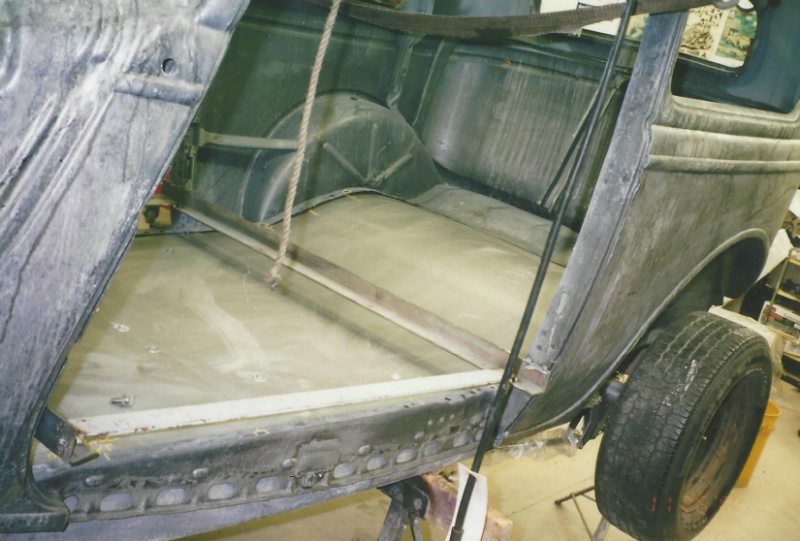

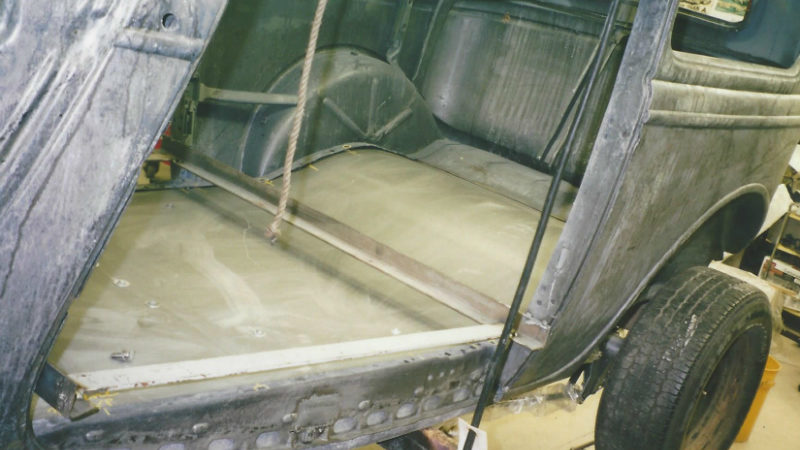

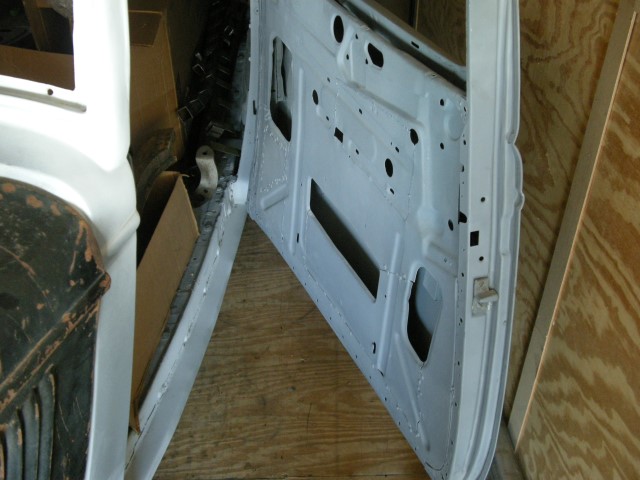

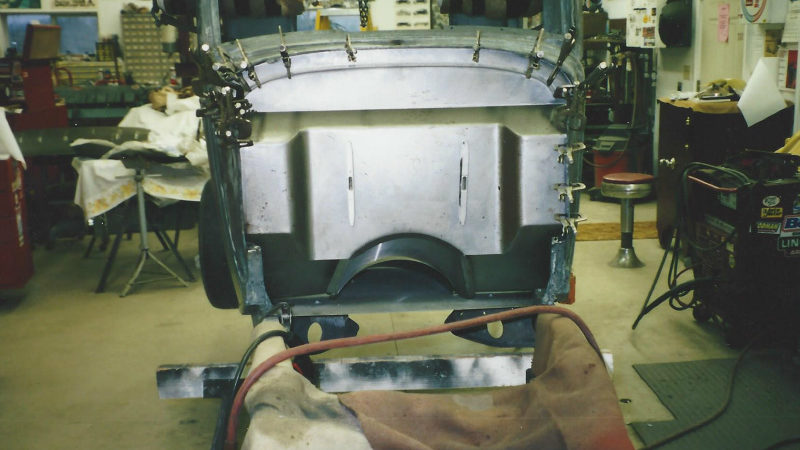

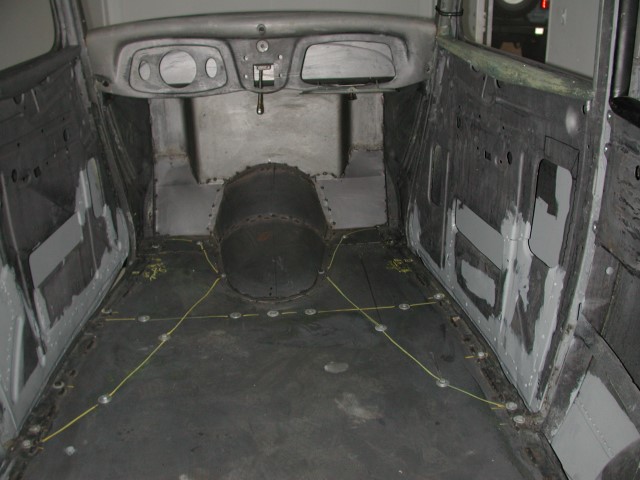

  • Body work: New floor, rockers, door skins & patch panels.

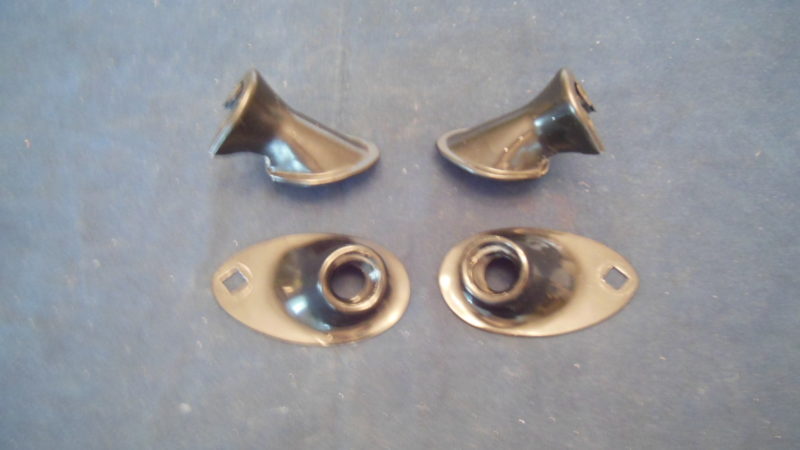

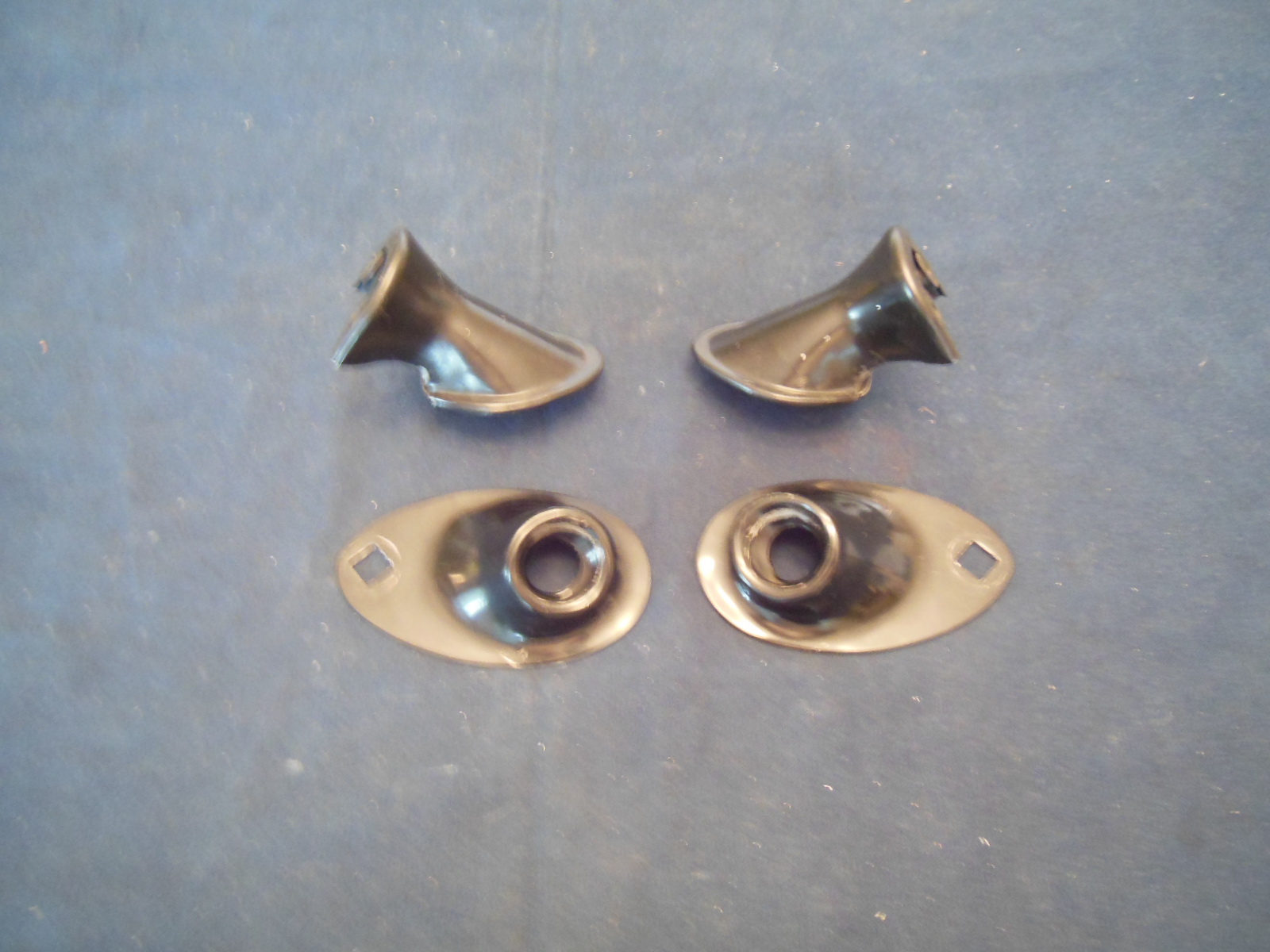

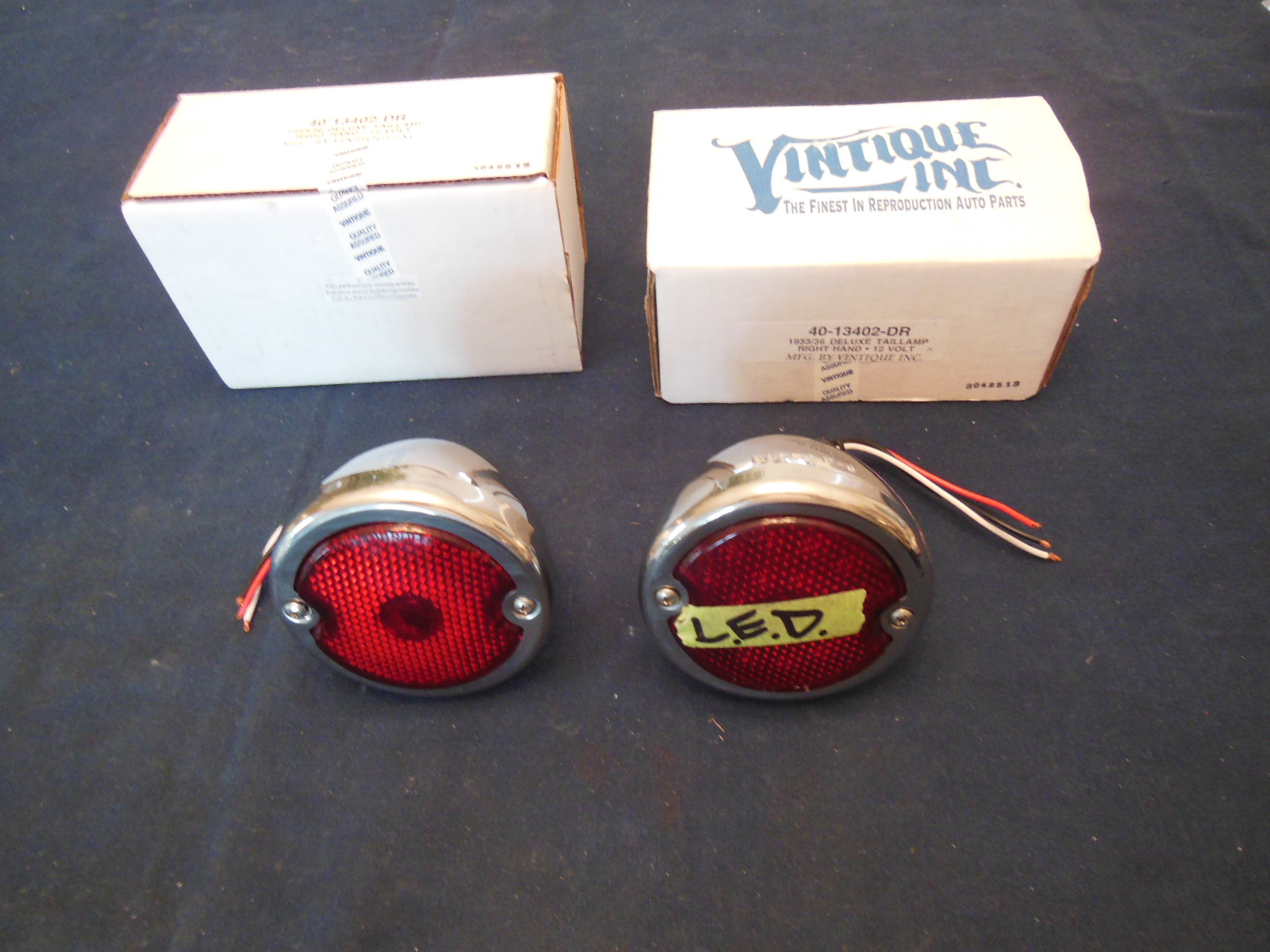

  • Headlight*/Tail light stanchions: Chopped or original / Original

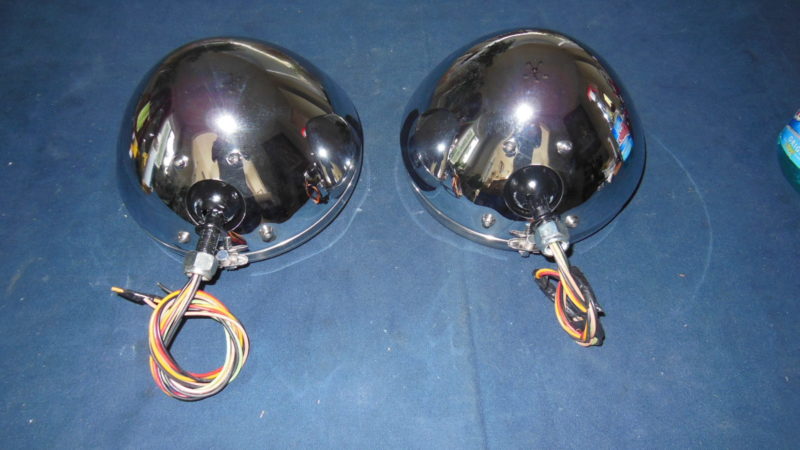

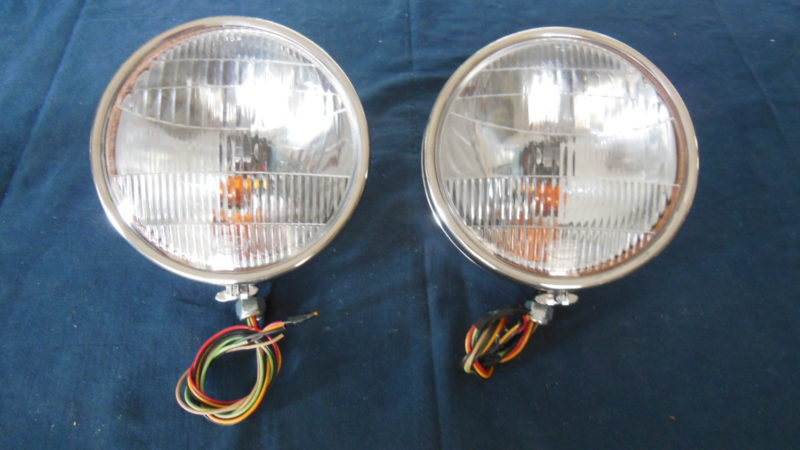

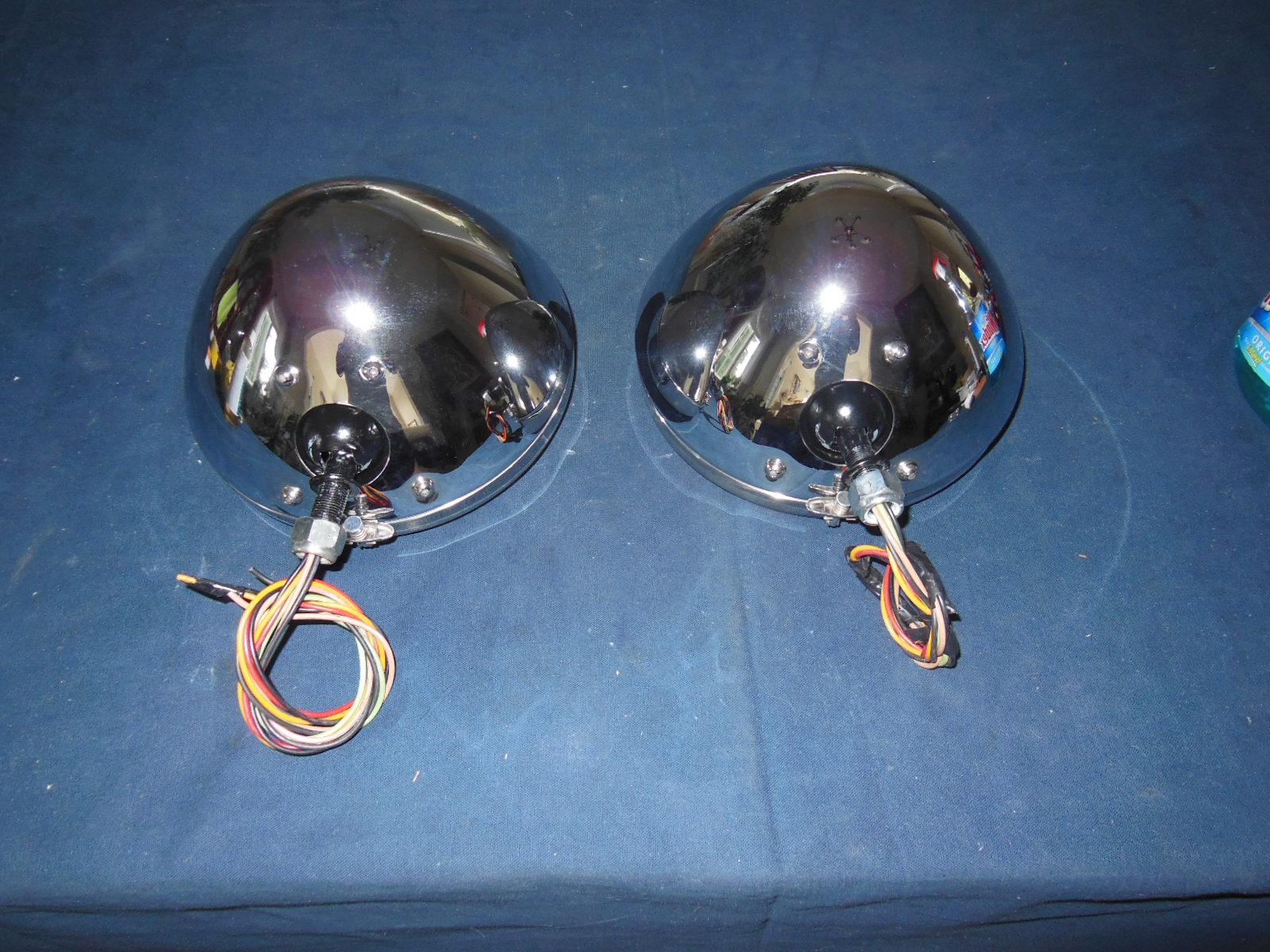

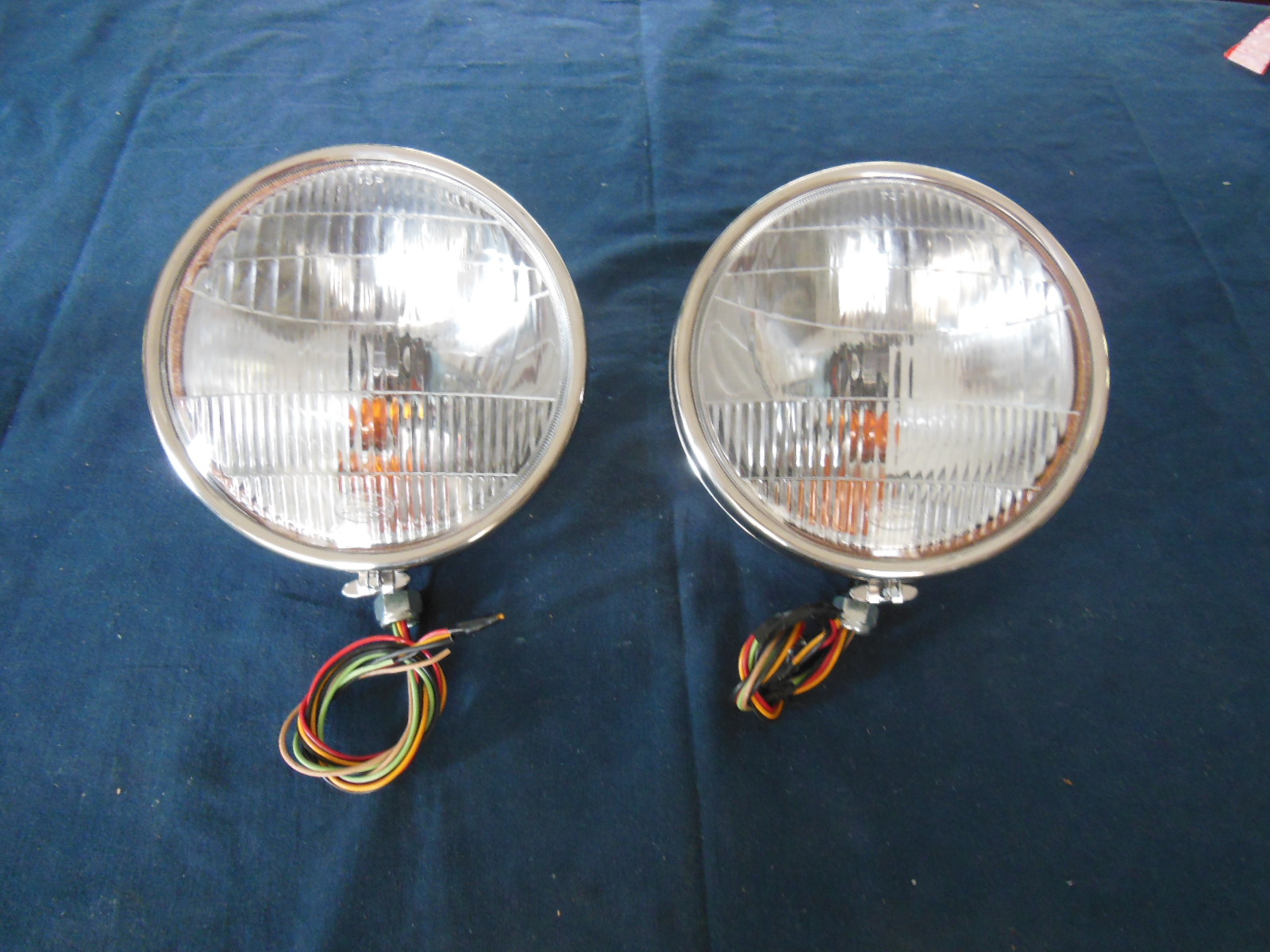

  • Chrome plated Bob Drake 34 Ford Commercial Headlights with turn park/signal lamps included

Interior

  • Dashboard: (1) Original, (1) Modified to choose from
  • Steering Column and Drop: Lime Works
  • 39 Ford Banjo steering wheel

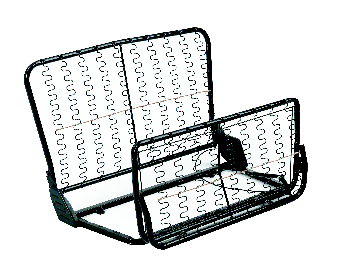

  • Seats: Front & Rear - Glide Engineering w/ foam for chopped top

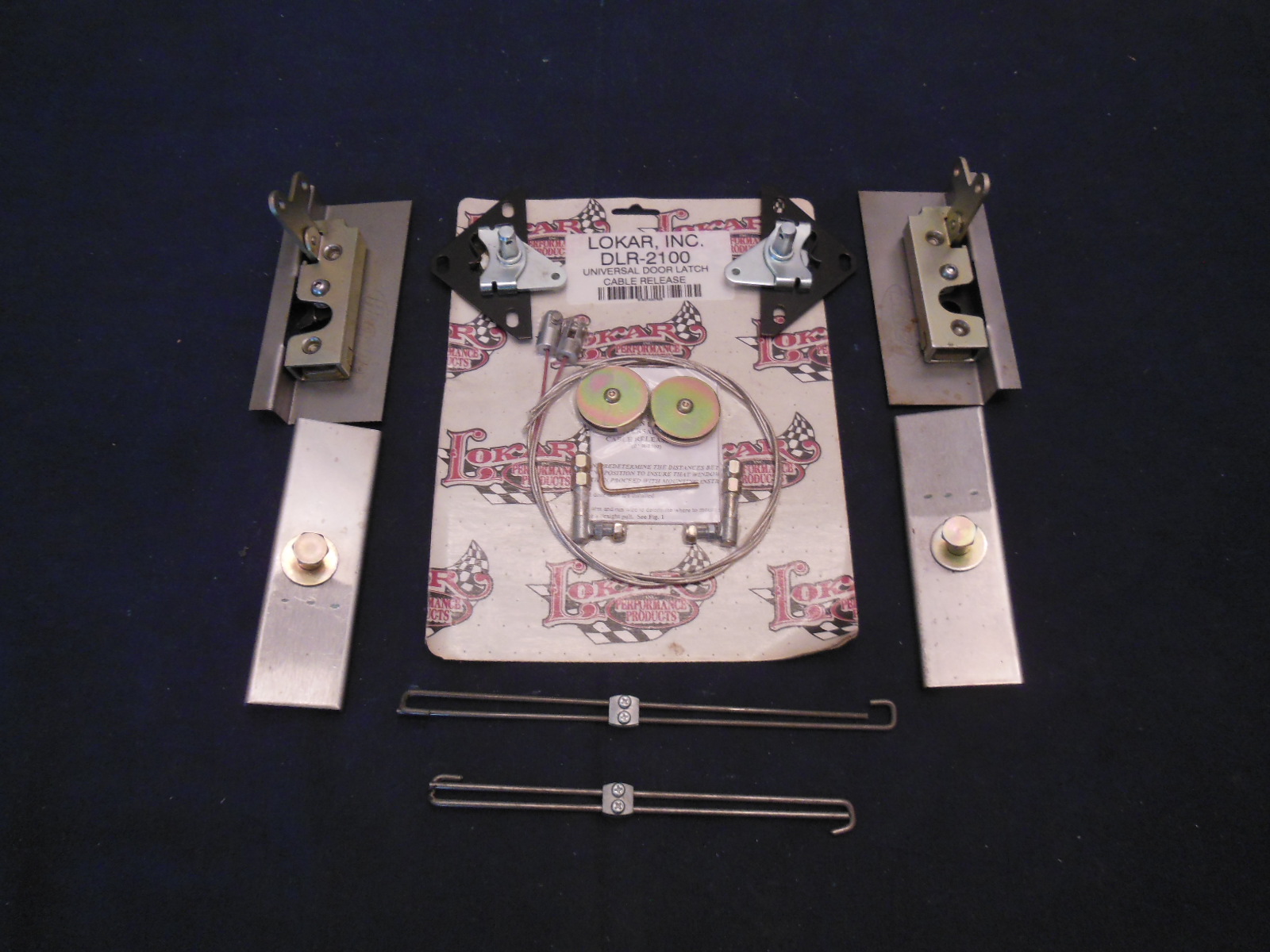

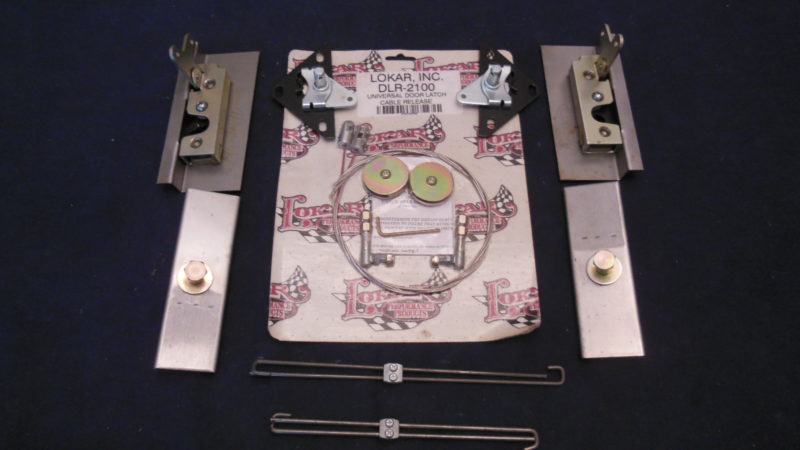

  • Bear Claw Door latches

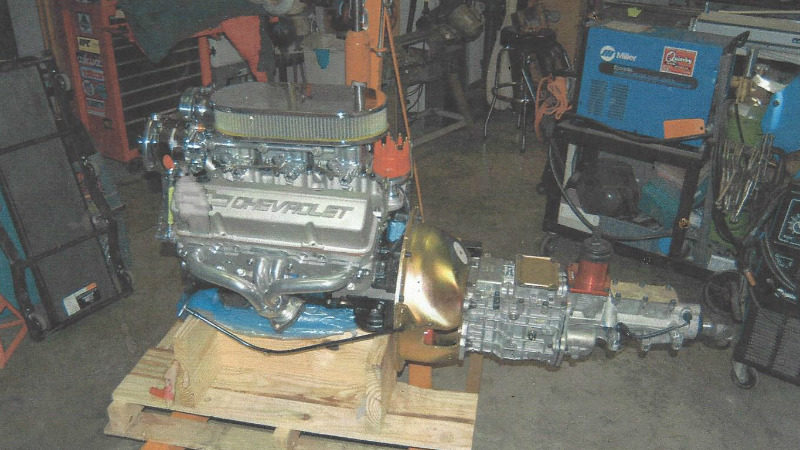

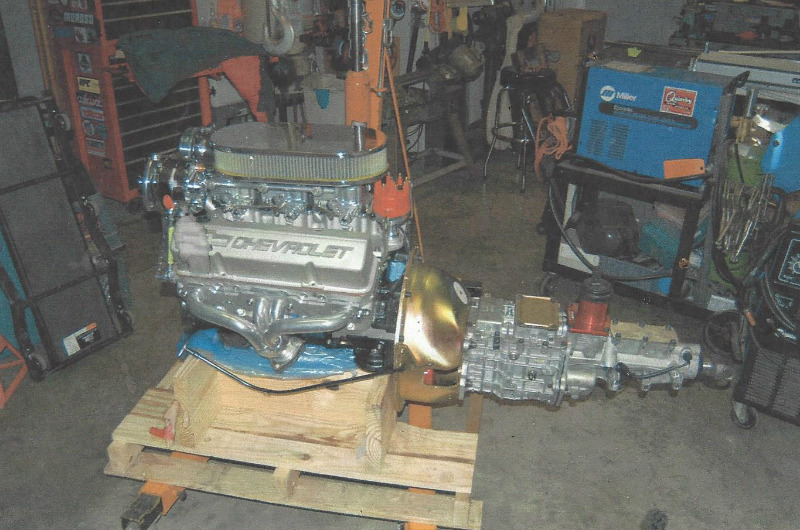

Engine, Clutch/Transmission (optional)

  • Make: Chevrolet ZZ383 High Performance Engine 12498772
  • Displacement: 383 cubic inches
  • Peak Horsepower: 425 @ 5500 RPM
  • Peak Torque: 450 ft.lb. @ 4500 RPM
  • Fuel Pump: Edelbrock
  • Alternator & Starter: Powermaster
  • Induction: Demon Triple D Six Shooter

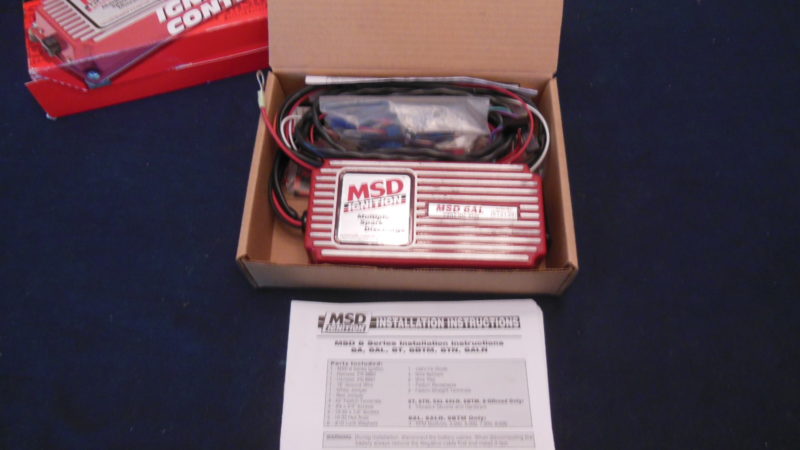

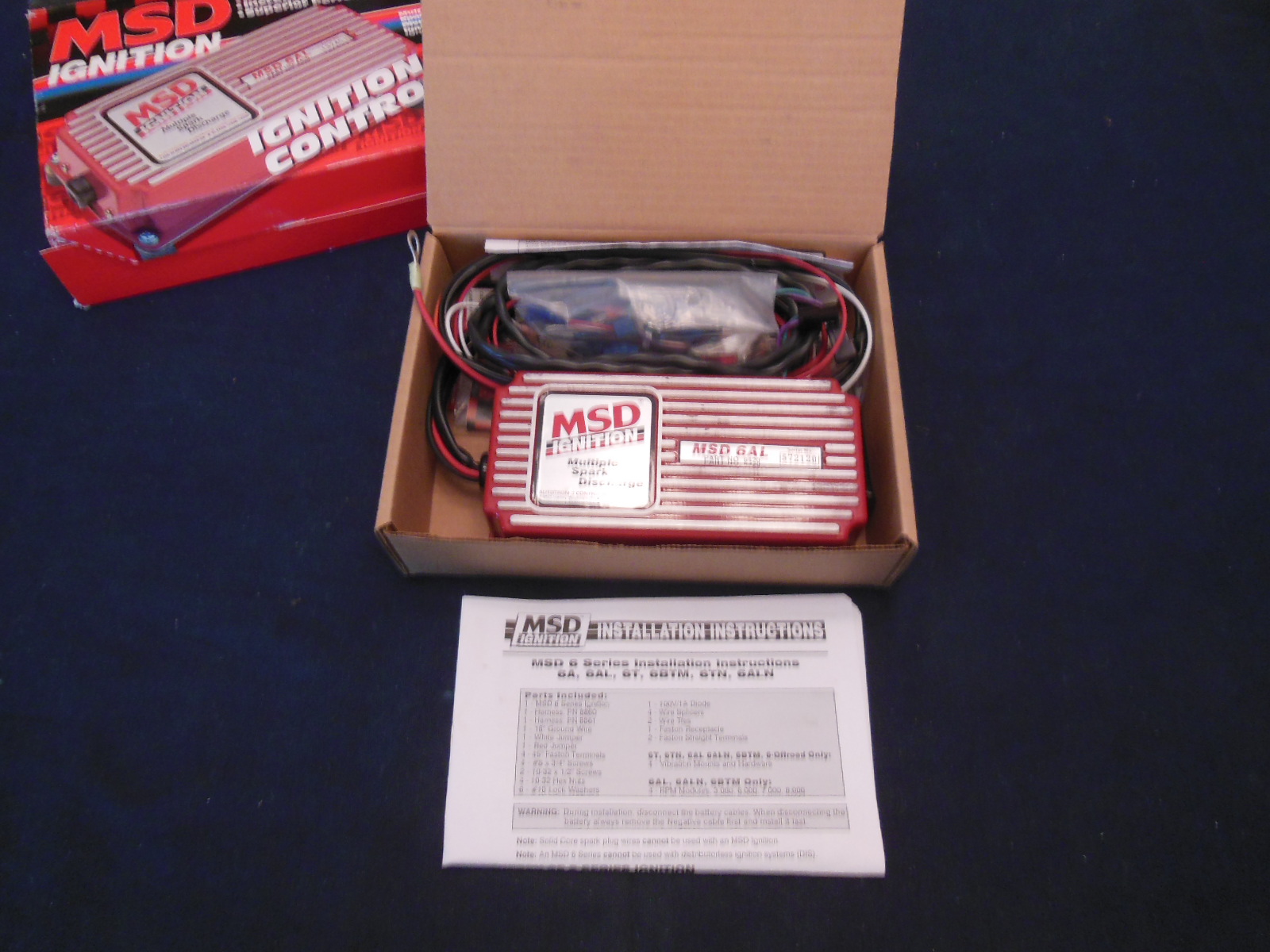

  • Ignition: MSD-Billet Small Diameter PN8570 w/ Ignition Controller 6AL

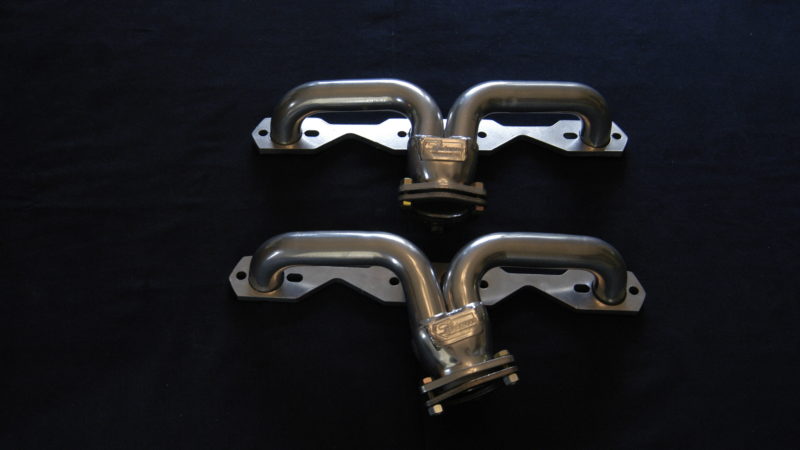

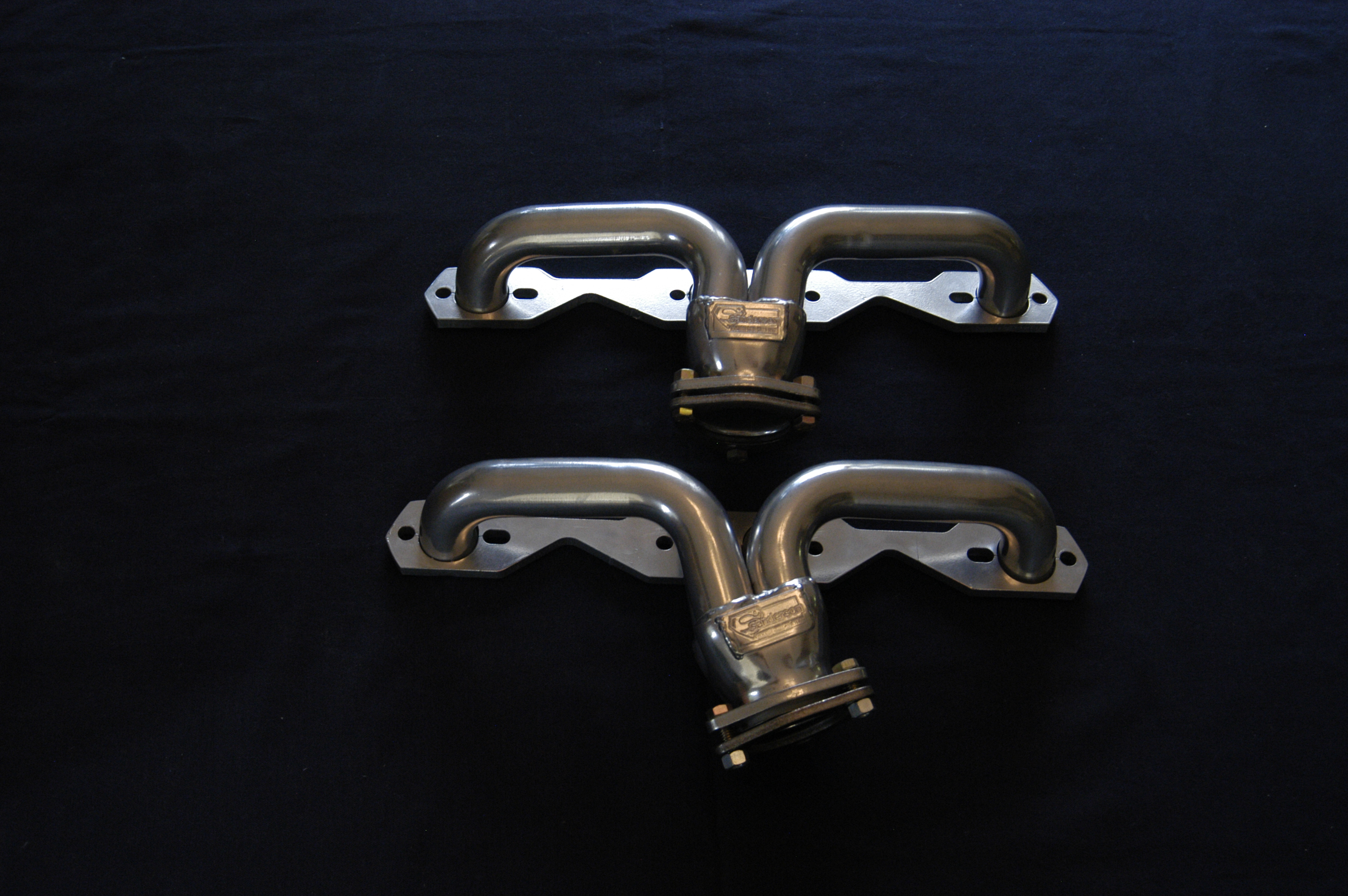

  • Headers - Sanderson Block Huggers
  • McLeod 12-inch pressure plate, disk, scatter shield, (Bellhousing) & Hydraulic TOB
  • Tremec 5 Speed TKO with yoke, rare front shift position and old school shift lever
