1955 Chevrolet 150 – 1PDQ55

Chassis

• Links/Kits:
  • RideTech - Parallel 4-link with diagonal Panhard Bar
• Brake Calipers:
  • Wilwood Disc Brakes - Dynalite Big Brake Front Hub Kit with 12.19" vented rotors (P/N 140-10440)
• Brake Pads:
  • Wilwood Disc Brakes - BP-10 (PN 150-8850K)
• Brake Rotors:
  • Wilwood Disc Brakes - 12" front, 11" rear
• Coatings:
  • POR-15 – American Icon – High-Performance Coatings - Frame coated in POR-15 before painting
• Coilovers:
  • QA1 - Single-adjustable Proma Star front and rear
• Control Arms:
  • Fatman Fabrication - Fatman Fab Stage 3 Mustang II Kit
• Fuel Tank:
  • Rick’s Tanks - 16-gallon stainless steel
• Master Cylinder:
  • Wilwood Disc Brakes - Dual master 7/8-bore
• Spindles:
  • Classic Performance Products | CPP - 2-inch drop spindles
• Steering:
  • Flaming River Industries - XL Front Steer Power R&P SKU: FR40004 (I think)

Drivetrain

• Bellhousing:
  • Lakewood
• Differential:
  • Richmond Gear - stock posi unit from '69 Camaro, 12-bolt posi, 3.73:1 ring and pinion
• Flywheel:
  • Centerforce Clutches - 11-inch steel
• Lubricants:
  • Driven Racing Oil
• Ring/Pinion:
  • Richmond Gear - 3.73:1
• Shifter:
  • American Powertrain - White Lightning for T-56
• Throw out bearing:
  • Centerforce Clutches
• Tires:
  • Continental Tire - Extreme Contact D/W (245/40R19 front, 275/35R20 rear)
• Transmission:
  • American Powertrain - Tremec Magnum T-56 6-speed by American Powertrain
  • TREMEC - Magnum T-56 6-speed wide-ratio with .50 final overdrive
• Transmission Fluid:
  • Driven Racing Oil
• U Joints:
  • Yukon Gear & Axle
• Wheels:
  • Intro Wheels - Intro Magnum Wheels (19x8.5 front, 20x10 rear)

Engine

• Air Cleaner:
  • K&N Engineering, Inc. - K & N
• Alternator:
  • Powermaster Performance - 140 amp - one wire GM brushed aluminum
• Battery:
  • Optima Batteries - Red Top
• Battery Disconnect:
  • Flaming River Industries
• Cables:
  • Lokar Performance Products - braided stainless throttle cable
• Camshaft:
  • Comp Cams - High Energy solid roller (.550/.575-inch lift, 244/255 deg duration @.050, 110 deg-LSA)
• Connecting Rods:
  • Lunati
• Coolant:
  • Pennzoil
  • VP Racing Fuels
• Crankshaft:
  • Callies Performance Products - Forged Steel crankshaft
• Crate Engine:
  • Edelbrock - Racing Head Service 355ci with BDS 6-71 supercharger
• Cylinder Heads:
  • Dart Machinery, LTD - 72cc CNC-ported cast-iron
• Distributor:
  • FAST- Fuel Air Spark Technology
• ECU:
  • FAST- Fuel Air Spark Technology - FAST XFI
• Exhaust Headers:
  • Doug’s Headers - 1 3/4" primaries, 3" collectors
• Fasteners:
  • ARP – Automotive Racing Products
• Fuel Filter:
  • Aeromotive Inc.
• Fuel Injection:
  • FAST- Fuel Air Spark Technology - XFI
• Fuel Management:
  • FAST- Fuel Air Spark Technology - XFI
• Fuel Pump:
  • Aeromotive Inc. - Phantom
• Fuel Regulator:
  • FAST- Fuel Air Spark Technology
• Gaskets:
  • Fel-Pro
  • Cometic Gasket
• Ignition:
  • MSD Performance - 6AL CD ingnition
• Injectors:
  • FAST- Fuel Air Spark Technology - Throttle body
• Intake Manifold:
  • Blower Drive Service
• Lifters:
  • Comp Cams - solid roller
• Lubricants:
  • Driven Racing Oil - 20w-50
• Oil Pan:
  • Stef’s Fabrication Specialties - 7qt. brushed aluminum racing pan
• Plumbing/Fittings:
  • J&J Hi-Performance
• Pushrods:
  • Comp Cams
• Cooling - Radiator:
  • Griffin Thermal Products - Griffin polished aluminum 4-core
• Rings:
  • Total Seal, Inc.
• Rocker Arms:
  • Comp Cams - roller
• Spark Plug Wires:
  • FAST- Fuel Air Spark Technology
• Spark Plugs:
  • Autolite
• Starter:
  • TCI Automotive - mini-high-torque
• Super Charger:
  • Blower Drive Service - Polished aluminum 6-71
• Throttle Body:
  • FAST- Fuel Air Spark Technology - XFI
• Timing Components:
  • Comp Cams
• Valve Covers:
  • Billet Specialties
• Valve Springs:
  • Comp Cams - Dual springs
• Valves:
  • Comp Cams
• Water Pump:
  • Tuff Stuff Performance - polished aluminum

Exterior

• Car Care Products:
  • Griots Garage Inc. - Car wash and wax, car washing products and drying towel
  • Mothers Polish - Aluminum polish
• Door Handles:
  • Danchuk Manufacturing, Inc.
• Emblems:
  • Danchuk Manufacturing, Inc.
• Hinges - Hood:
  • Eddie Motorsports, Inc. - polished and clear-coated billet aluminum
• Hood Latch:
  • Eddie Motorsports, Inc. - polished billet aluminum
• Paint & Primers:
  • PPG Industries Inc. - PPG Deltron Black Base with Blue Pearl
• Rust Prevention:
  • POR-15 – American Icon – High-Performance Coatings
• Tail Lights:
  • Danchuk Manufacturing, Inc. - LED
• Trim:
  • Danchuk Manufacturing, Inc.
• Weather Stripping:
  • Danchuk Manufacturing, Inc. - Doors, trunk, windows
  • Soffseal
• Windows:
  • Classic Industries
• Windshield Wipers:
  • Danchuk Manufacturing, Inc.

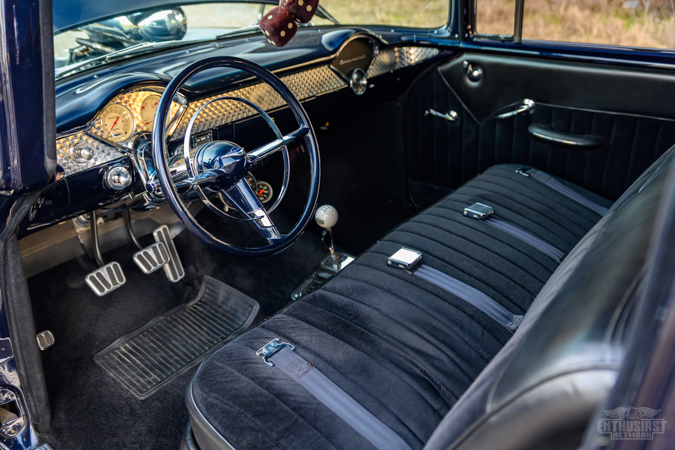

Interior

• Dash:
  • Back Roads Fabrications - Machine turned trim from Backwoods, Chrome parts from Danchuk
  • Danchuk Manufacturing, Inc.
• Door Handles:
  • Danchuk Manufacturing, Inc.
• Gauges:
  • Classic Instruments - Classic Instruments gauge cluster, Autometer tach and blower gauge
  • AutoMeter Products - tach and blower gauge
• Harnesses/Belts:
  • Juliano’s Hot Rod Parts
• Pedals:
  • Lokar Performance Products - Eliminator floor mount and brake/clutch pedal covers
• Rust Prevention:
  • POR-15 – American Icon – High-Performance Coatings
• Shift Knob:
  • American Powertrain
• Sound Dampening:
  • Dynamat Inc.
• Steering Column:
  • IDIDIT, LLC. - brushed aluminum tilt steering
• Trim:
  • Back Roads Fabrications
  • Danchuk Manufacturing, Inc.
• Wiring:
  • American Autowire
• Wiring Harness:
  • American Autowire

Equipment & Supplies

• Car Cover:
  • Covercraft - Weathershield HD
• Shop Tools:
  • Comp Cams
• Welders:
  • Lincoln Electric.us

Services

• Media:
  • Street Muscle Magazine - search 1PDQ55
• Photography:
  • Auto Enthusiast Network
