1969 Chevrolet Camaro RS “G-Code” | Ringbrothers
FollowVehicle Quick Facts
Profile ID: 35638
Year: 1969
Make: Chevrolet
Model: Camaro RS
Markets: Performance, Racing, Resto-Mod
Vehicle Type: American
Contact: Ringbrothers
Vehicle Story

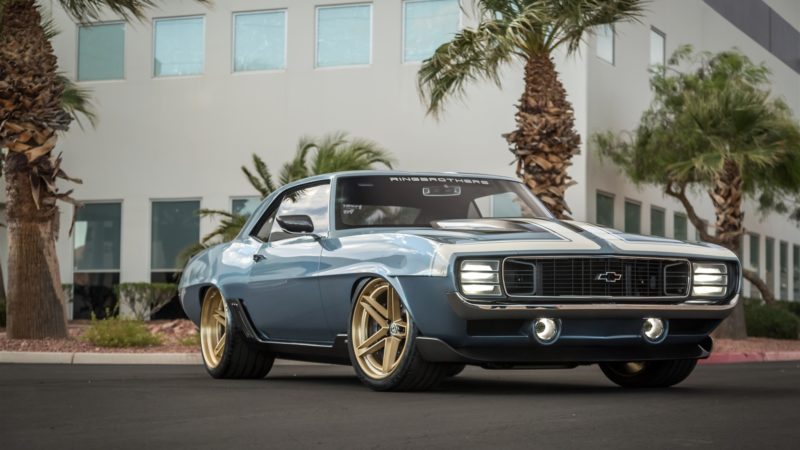

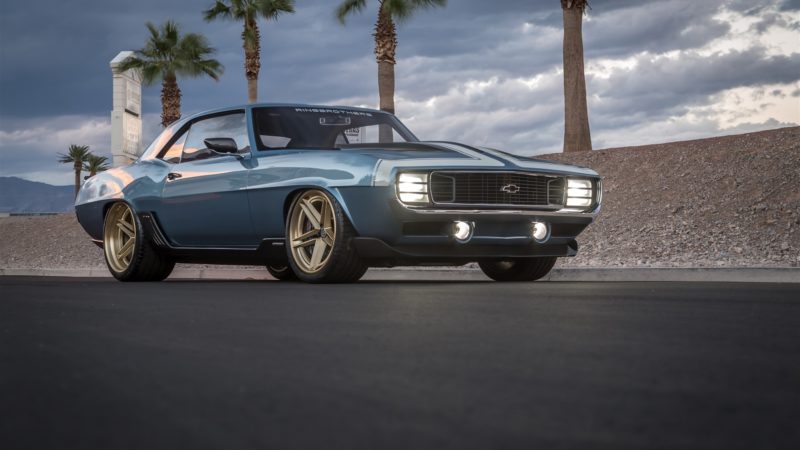

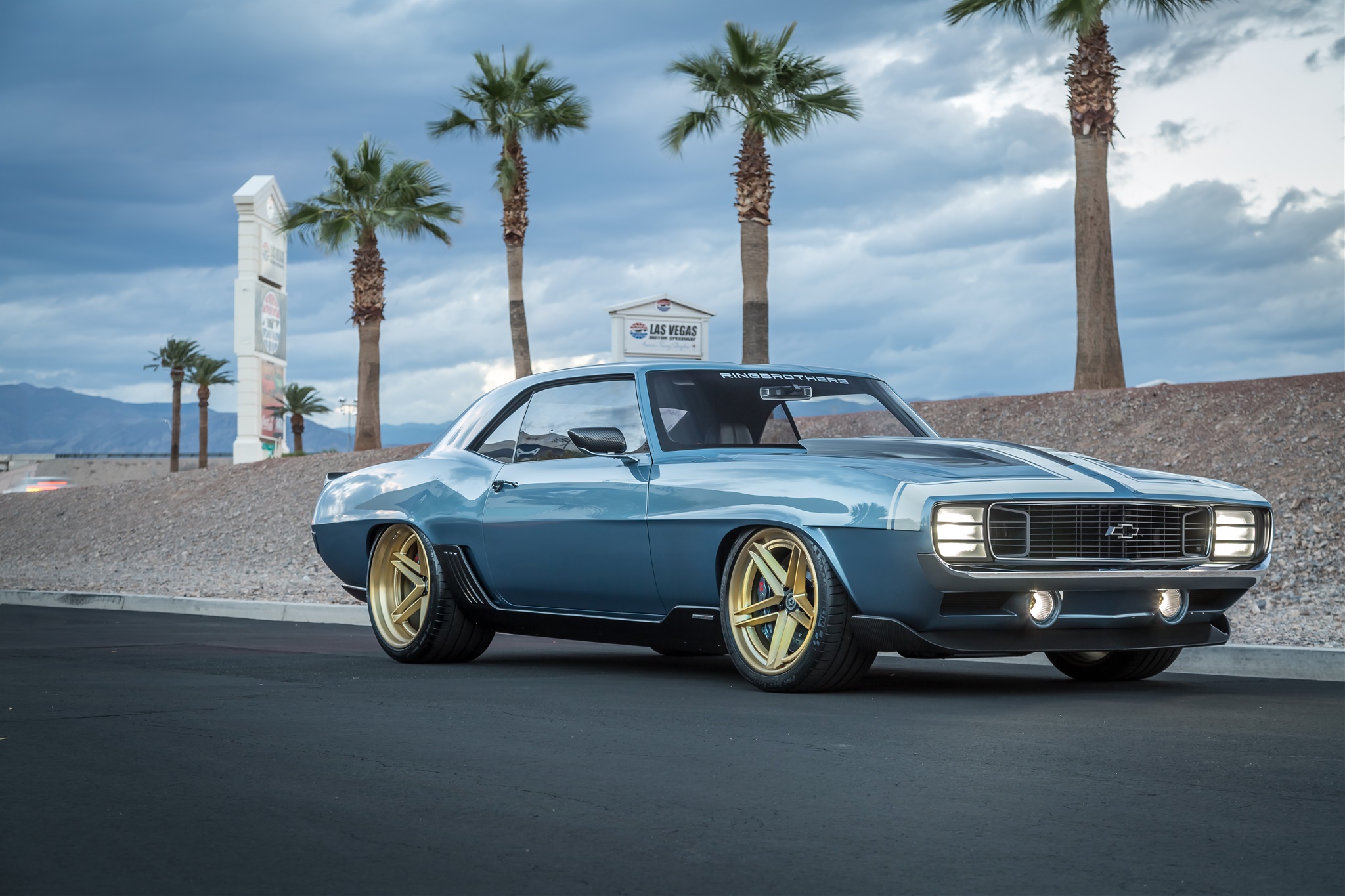

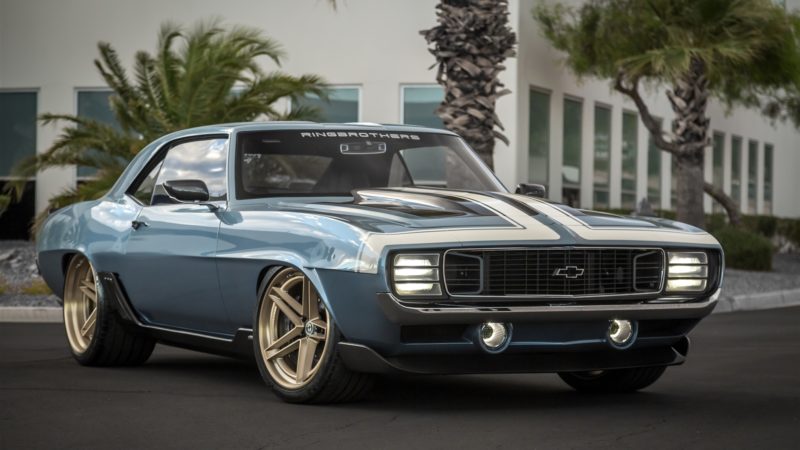

Wisconsin native and “G-Code” owner Don Atkinson always had a desire to own a 1969 Camaro RS. He loved the design by GM, but he didn’t want just any 1969 Camaro – he wanted a truly unique, one-of-a kind Camaro that no one else in the world would have, so he went to Ringbrothers.

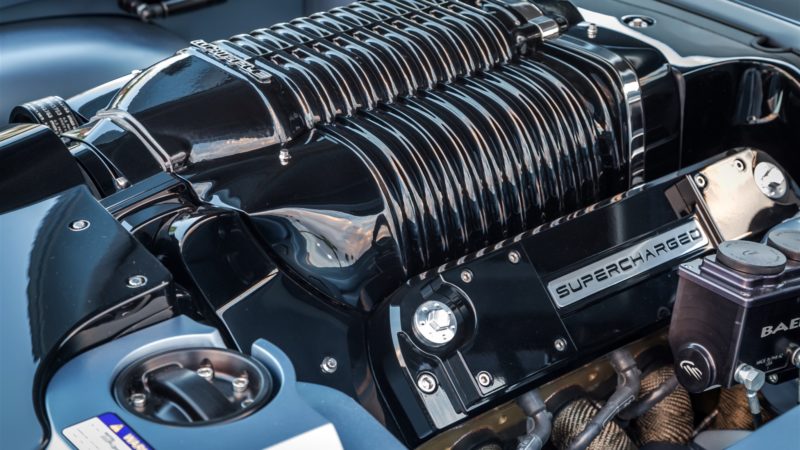

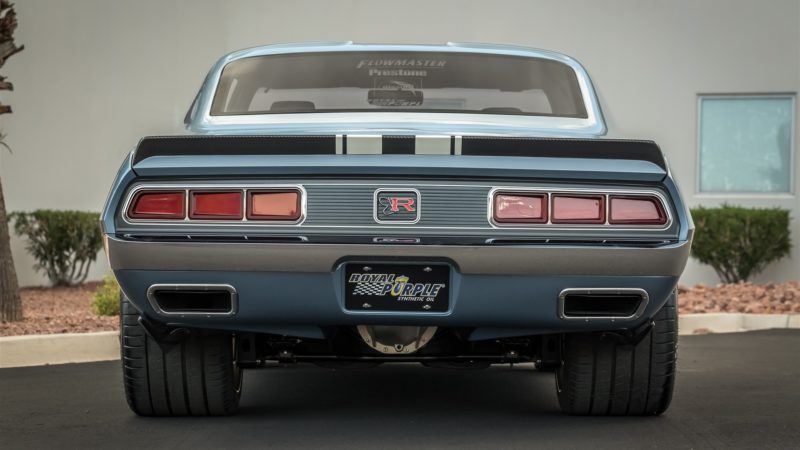

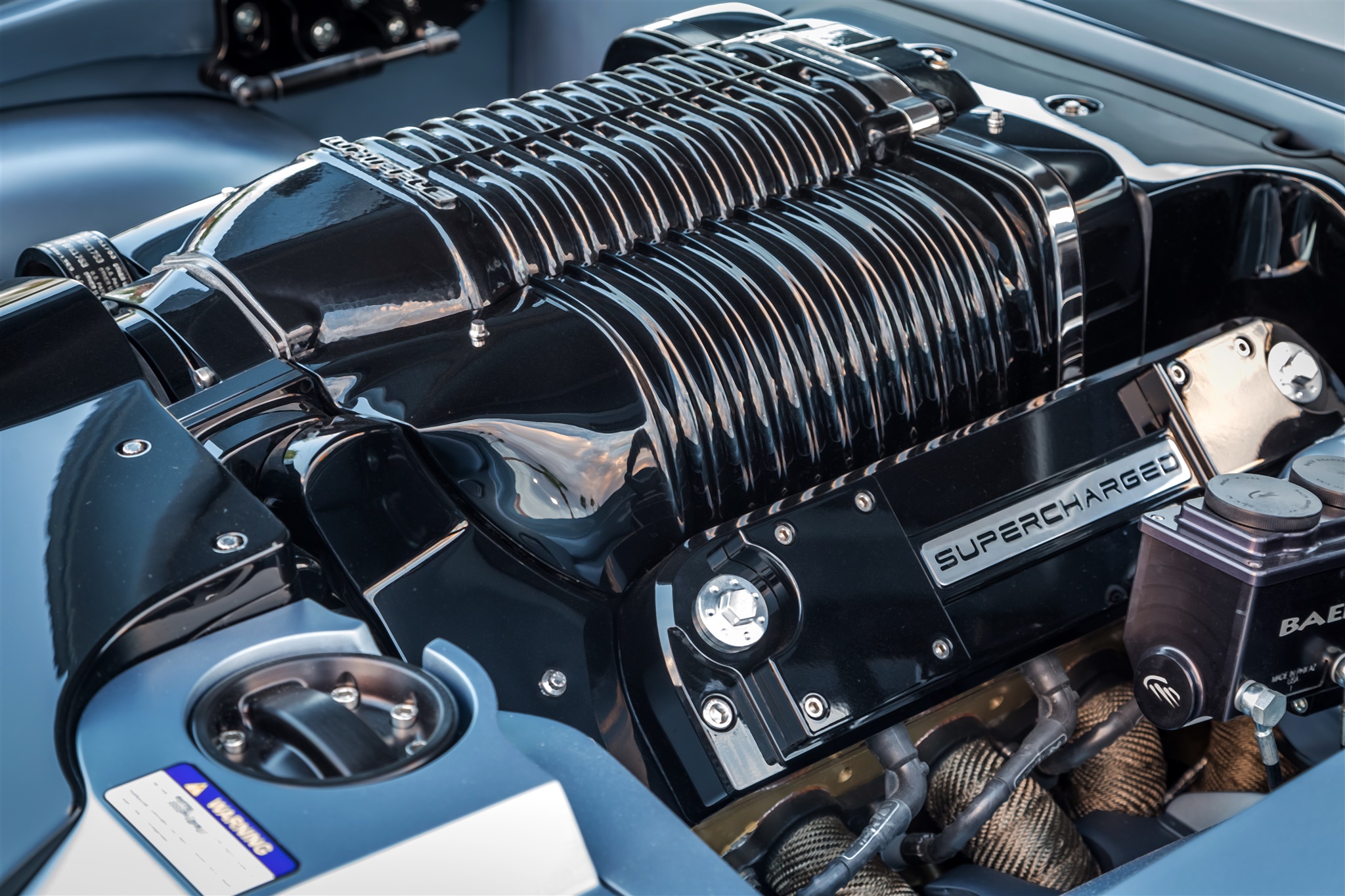

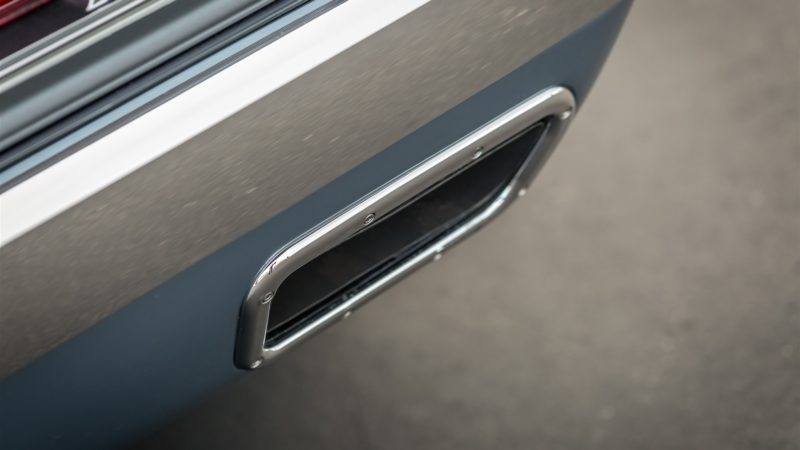

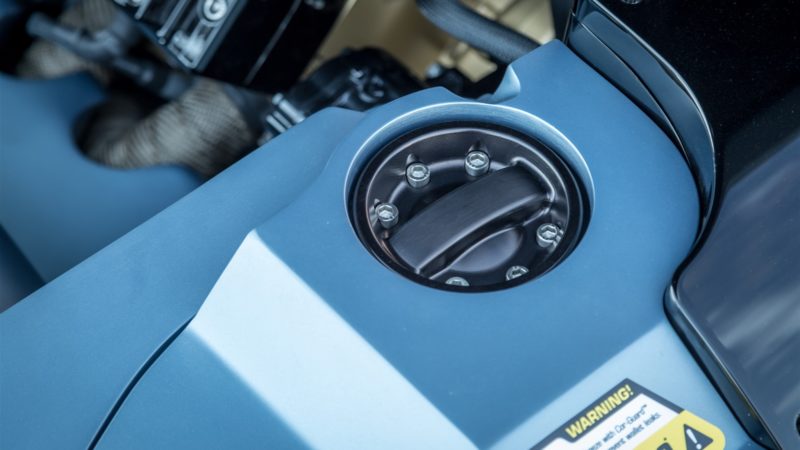

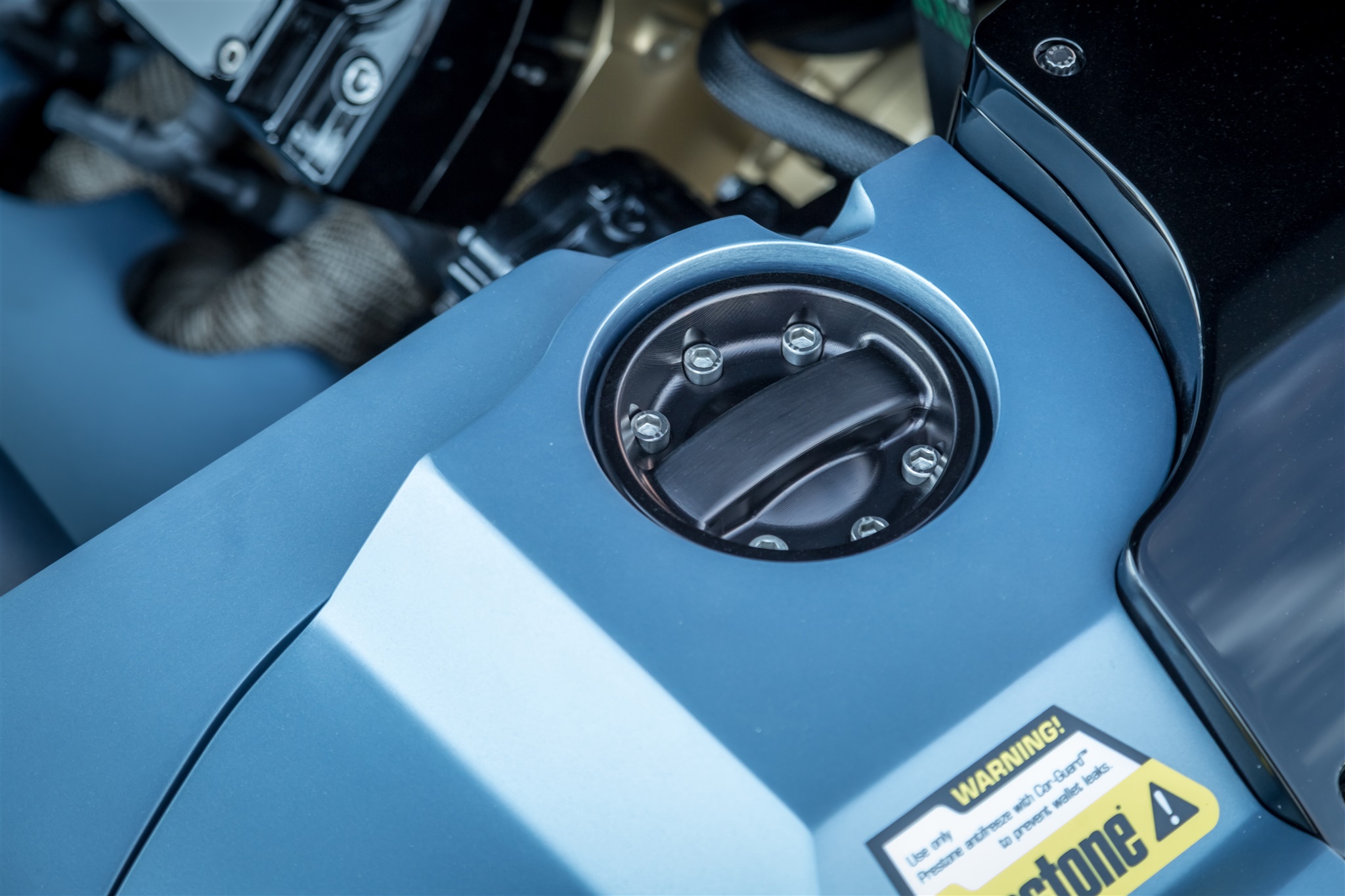

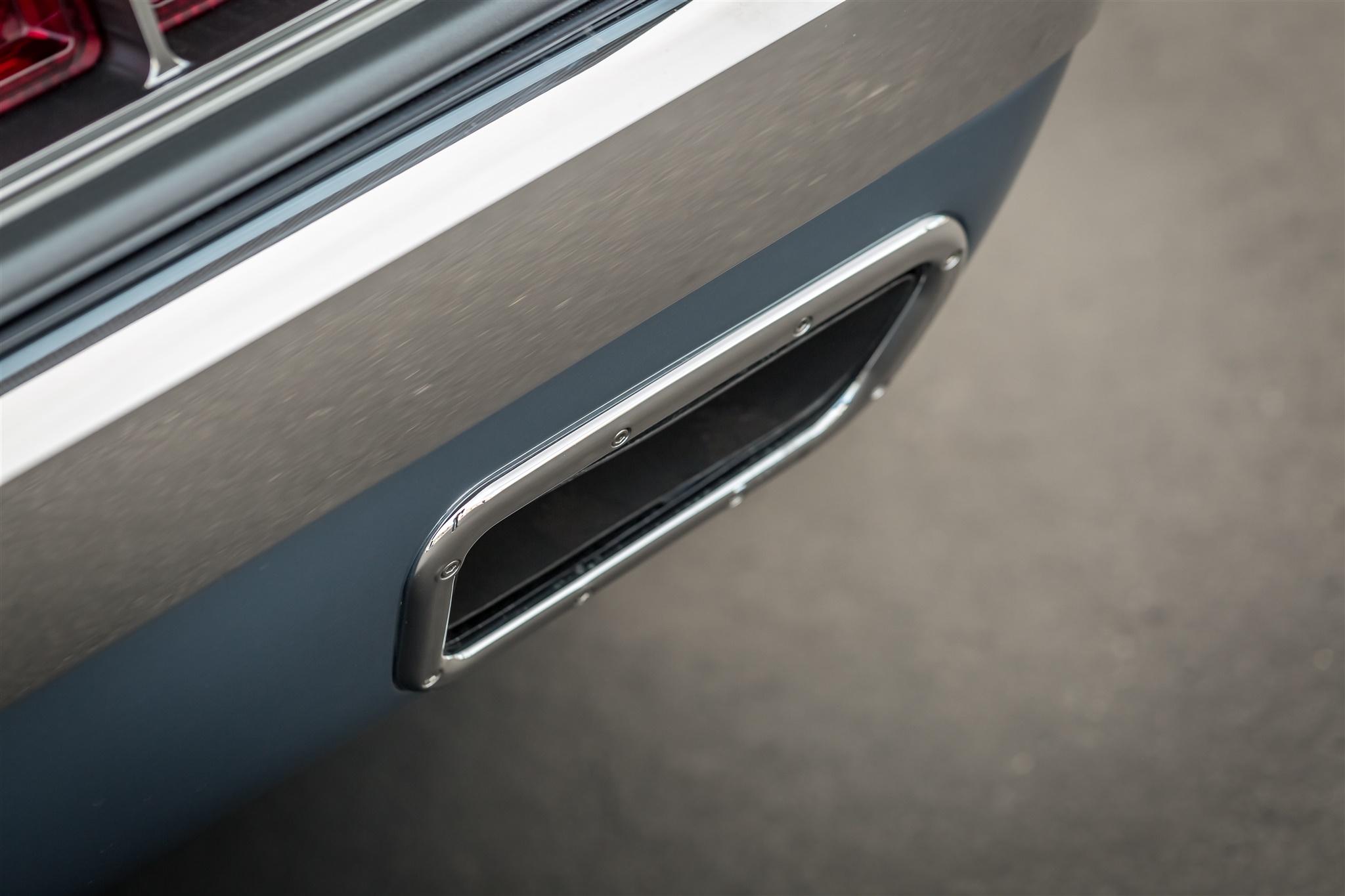

“G-Code’s” transformation began with the power plant – an LS3 motor from Chevrolet. Wegner Automotive beefed up the horsepower with a Whipper Supercharger and an increase in displacement to 416 cubic inches, bringing the output up to nearly 1,000 hp. All those ponies are then sent through a Bowler-built Tremec six-speed transmission and a Centerforce Clutch. The engine is kept cool with help from Prestone coolant and everything from the motor to the transmission are running at peak condition thanks to lubricants from Royal Purple. Exhaust is expelled though a set of custom headers designed by Ringbrothers and then into the custom Flowmaster stainless steel exhaust system.

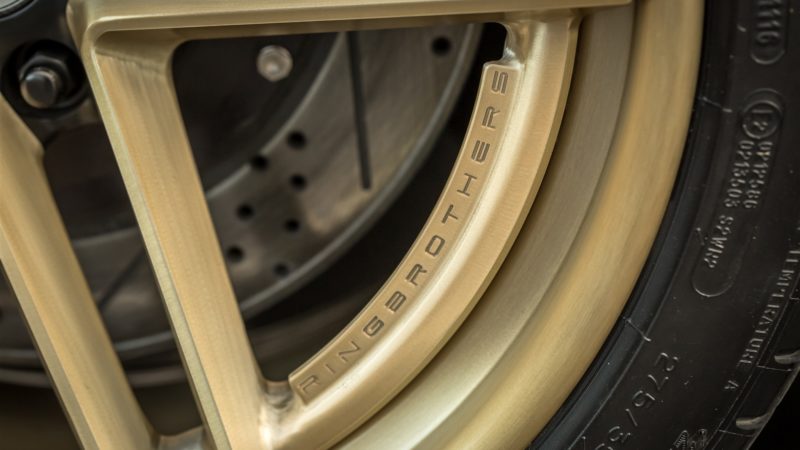

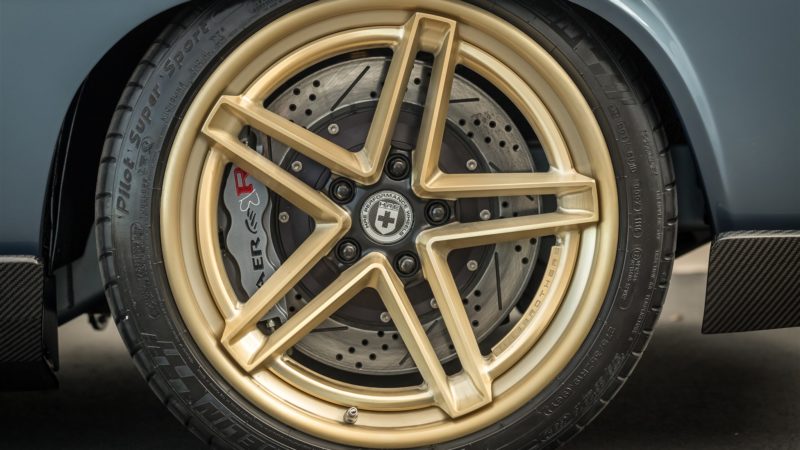

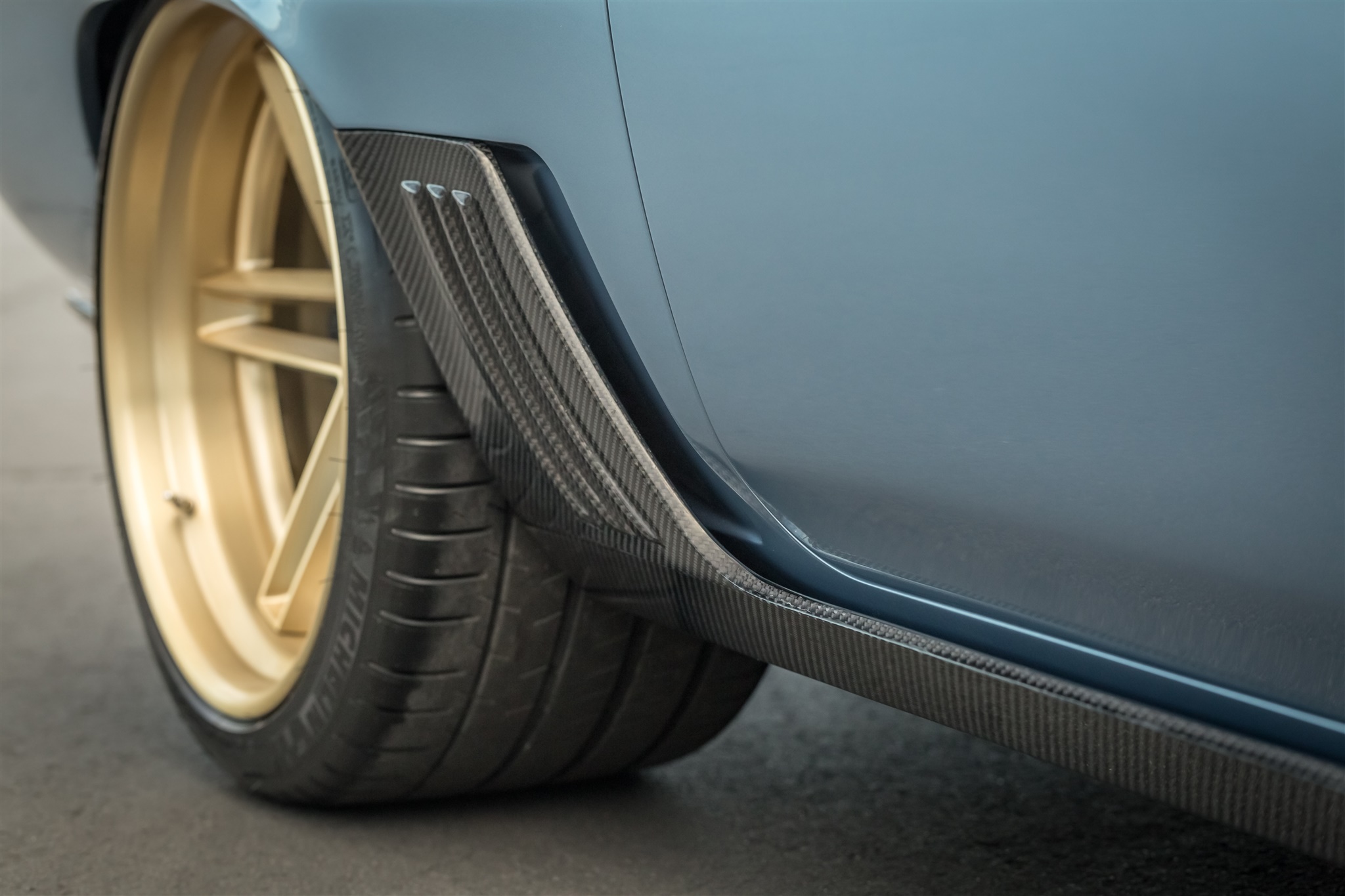

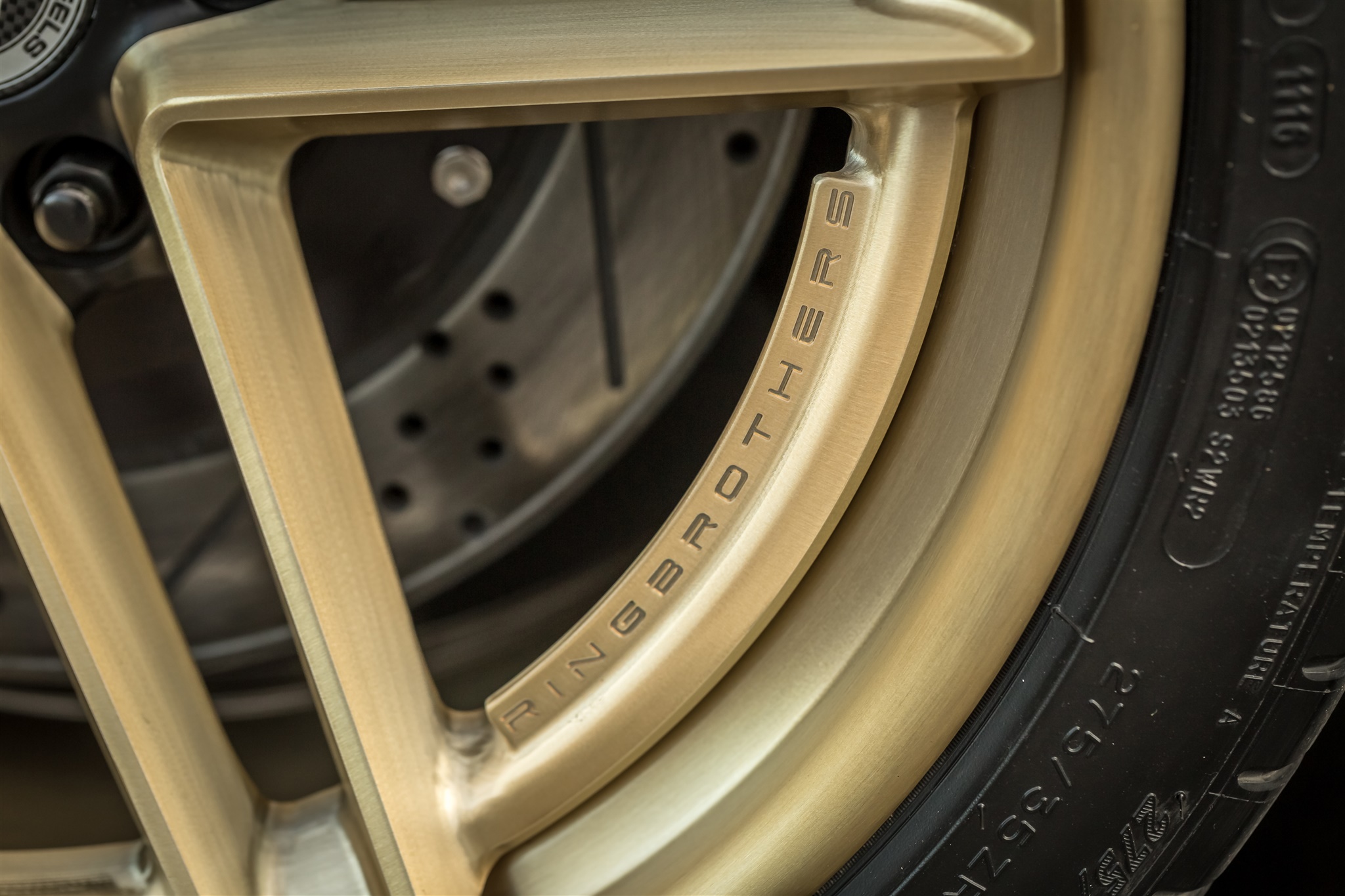

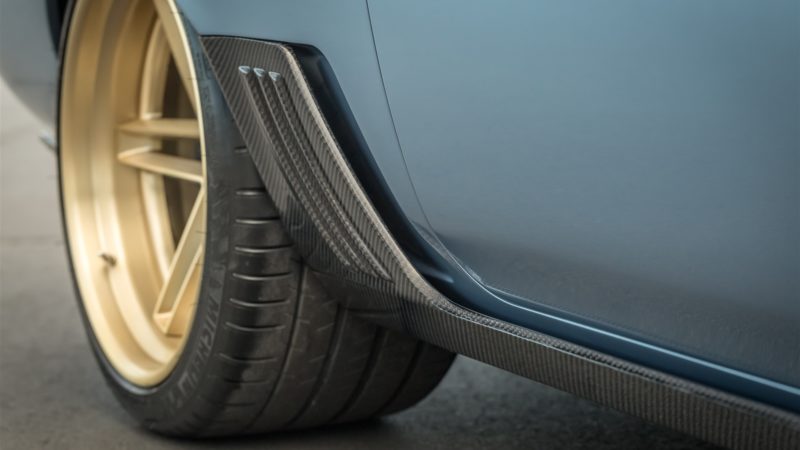

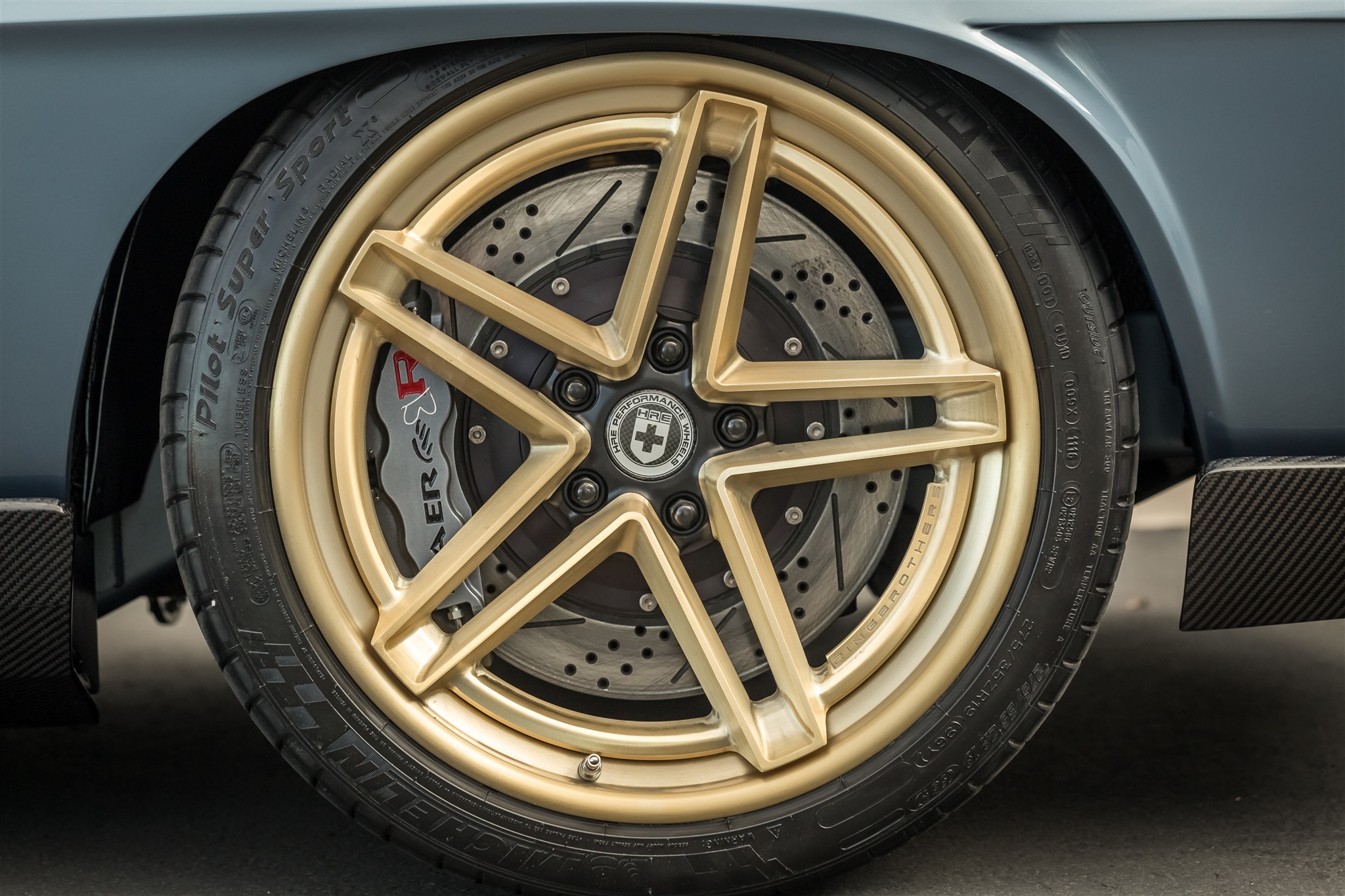

But “G-Code” isn’t all about straight-line speed. To make sure the car was equally as adept at going around a corner, Mike and Jim Ring used a Detroit Speed full suspension setup including a Hydro Form front clip and Quadra-Link rear with AFCO shocks on all four corners. To bring “G-Code” down from triple-digit speeds, massive Baer Brakes six-pot calipers were installed at all four corners with 15-inch rotors in the front and 14-inch rotors in the rear. The Rings worked with the folks at HRE Performance Wheels in California to design a custom set of forged wheels sized at 19x10 in the front an 20x13 at the rear, inspired by the IROC-Z Camaro wheels of the ‘80's and wrapped them in Michelin Pilot Super Sport tires measuring 275/35/19 up front and 335/30/20 out back.

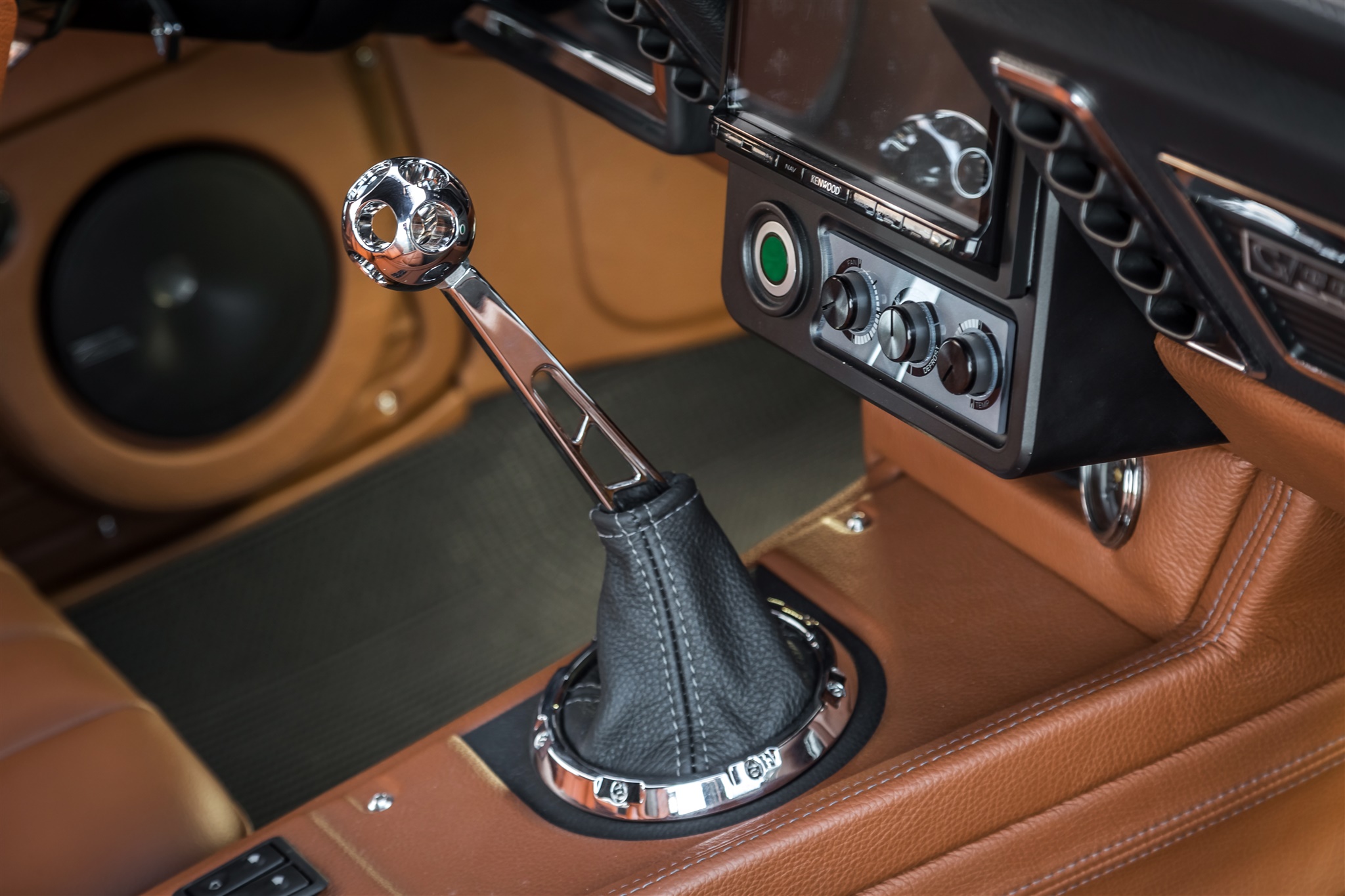

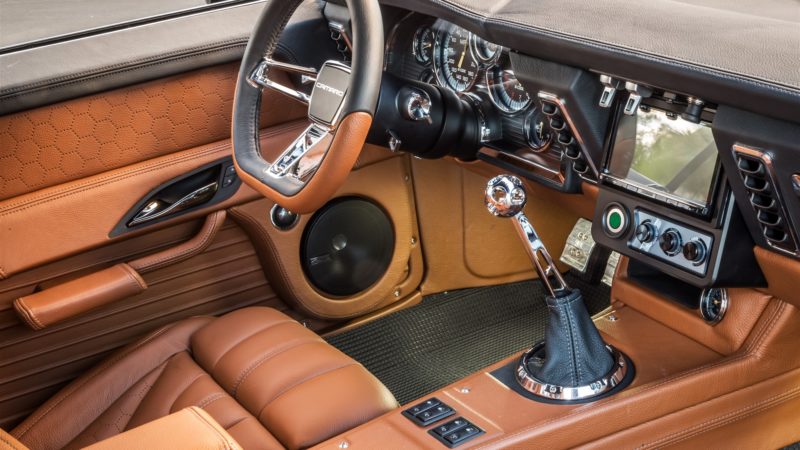

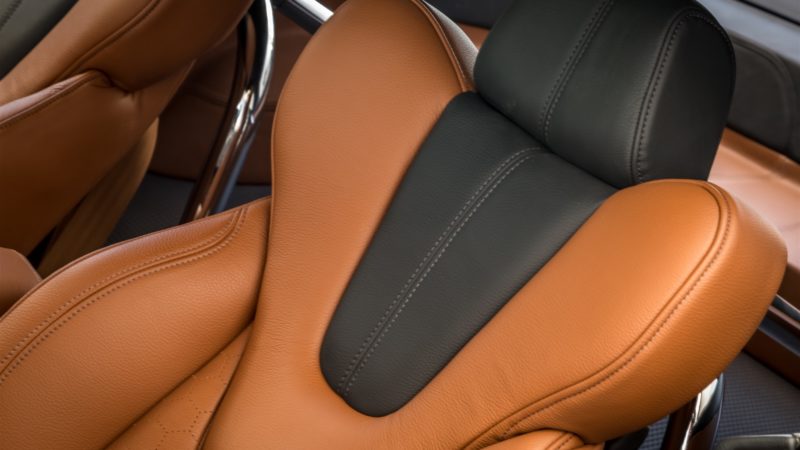

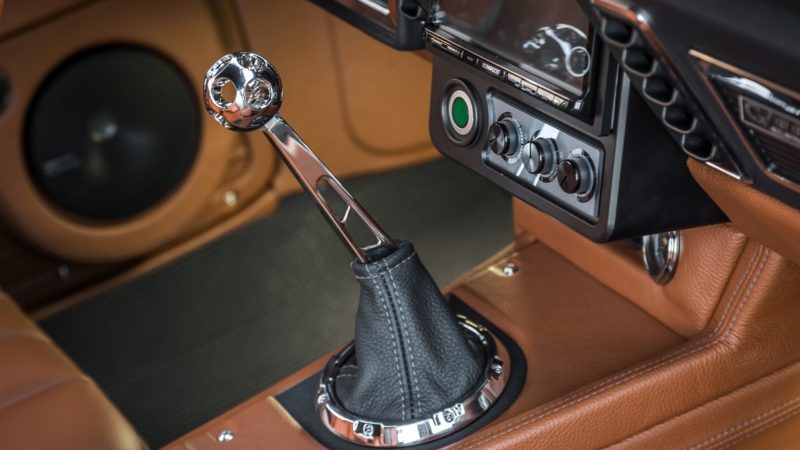

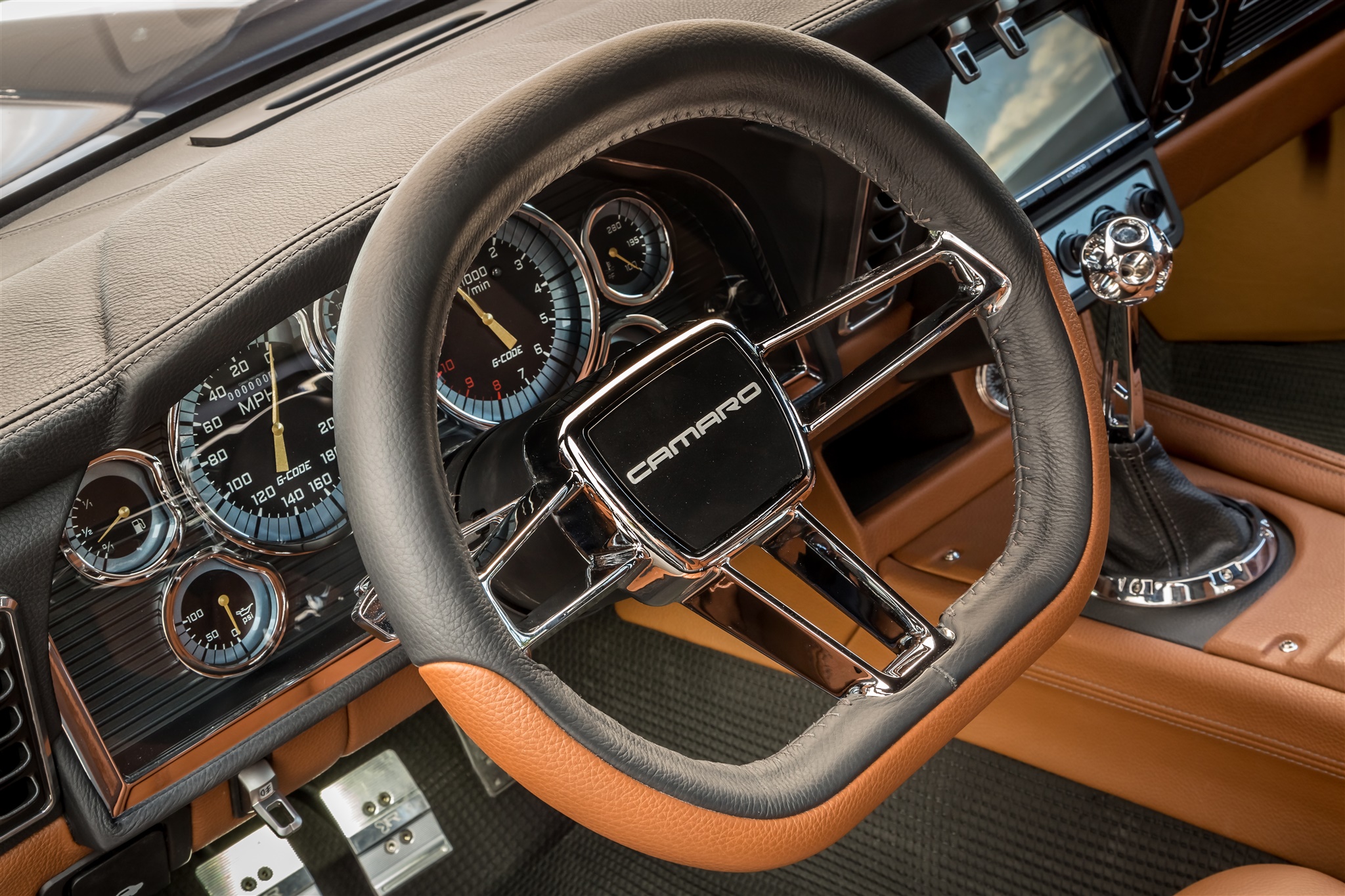

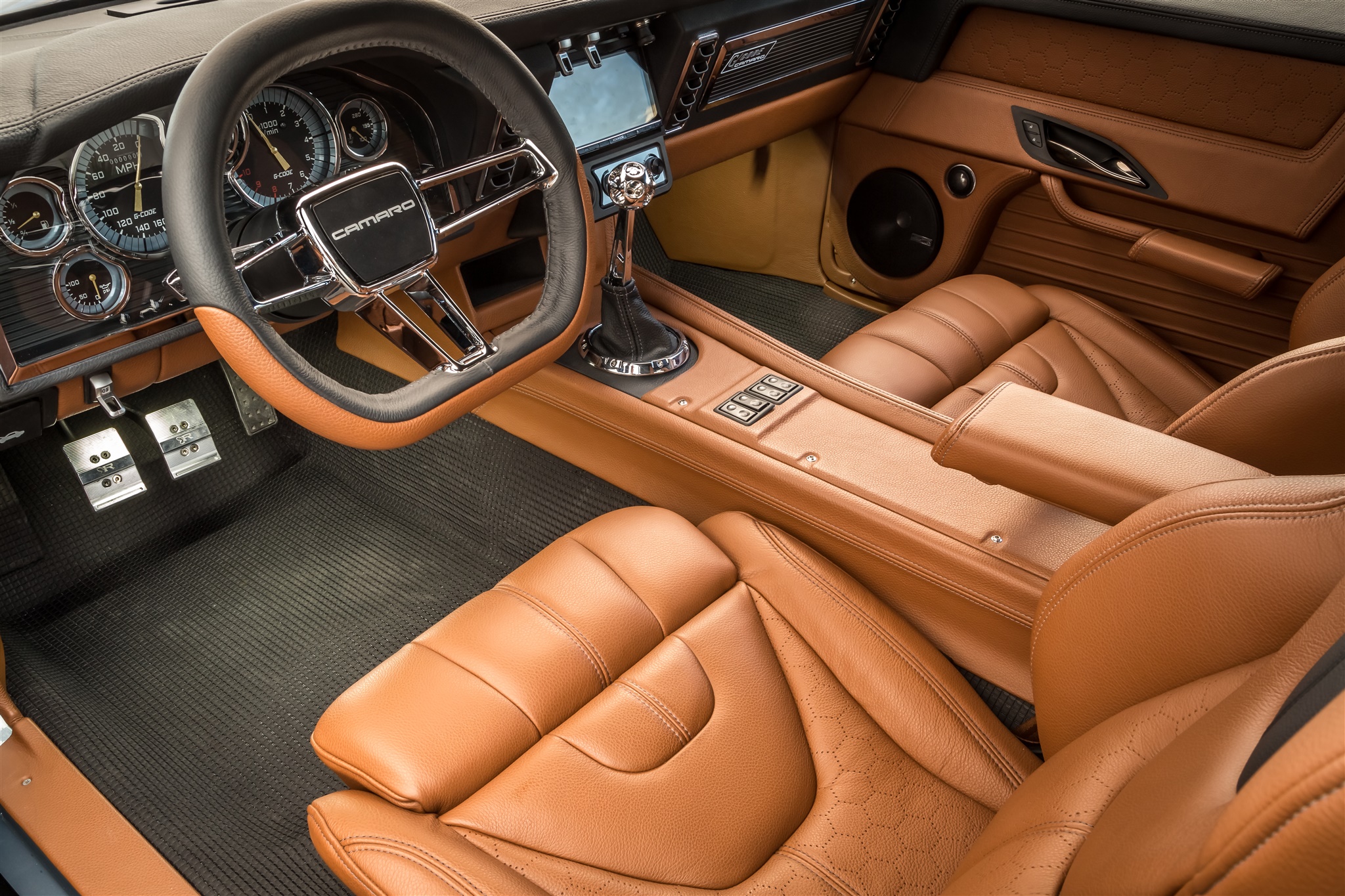

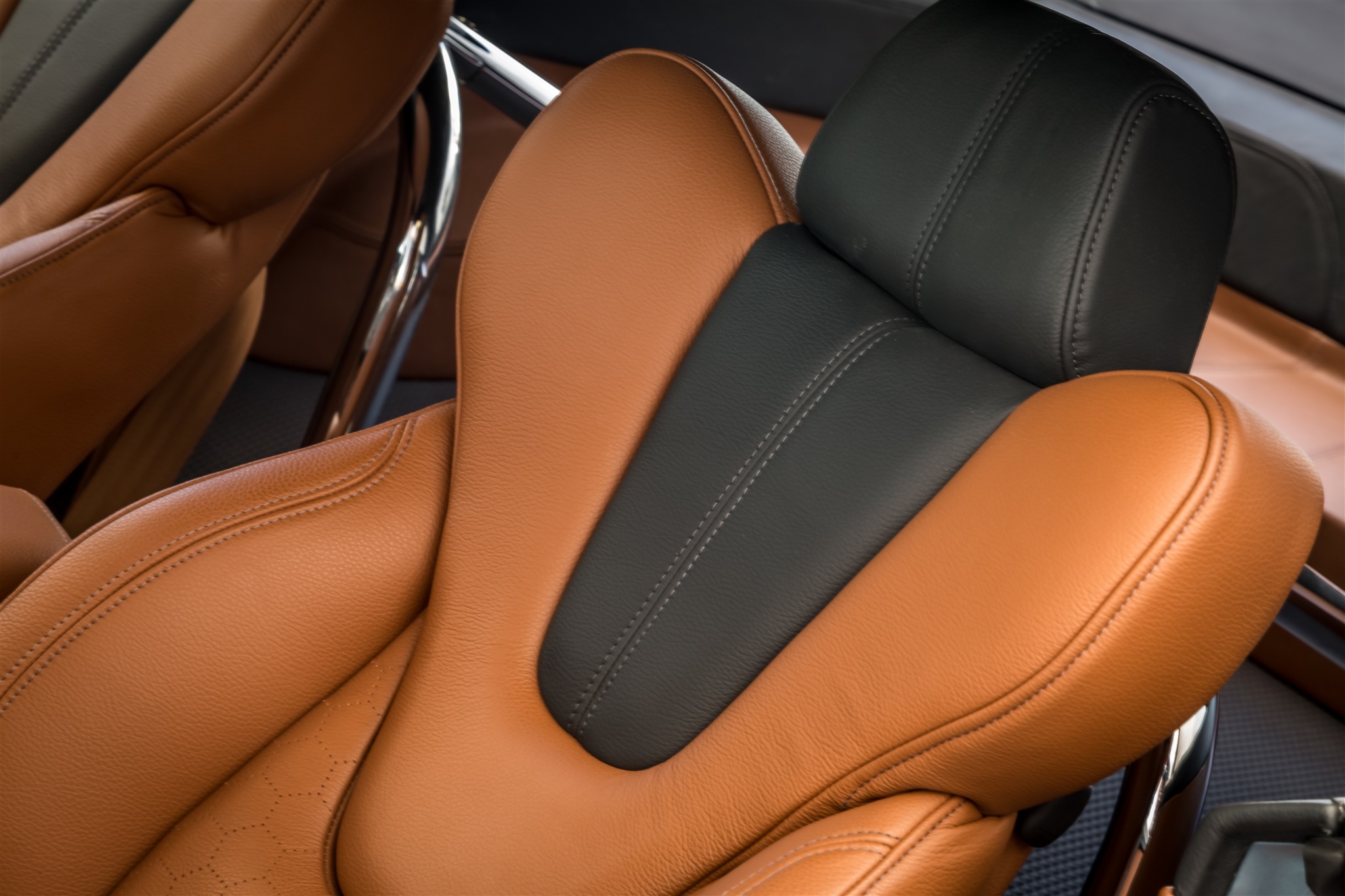

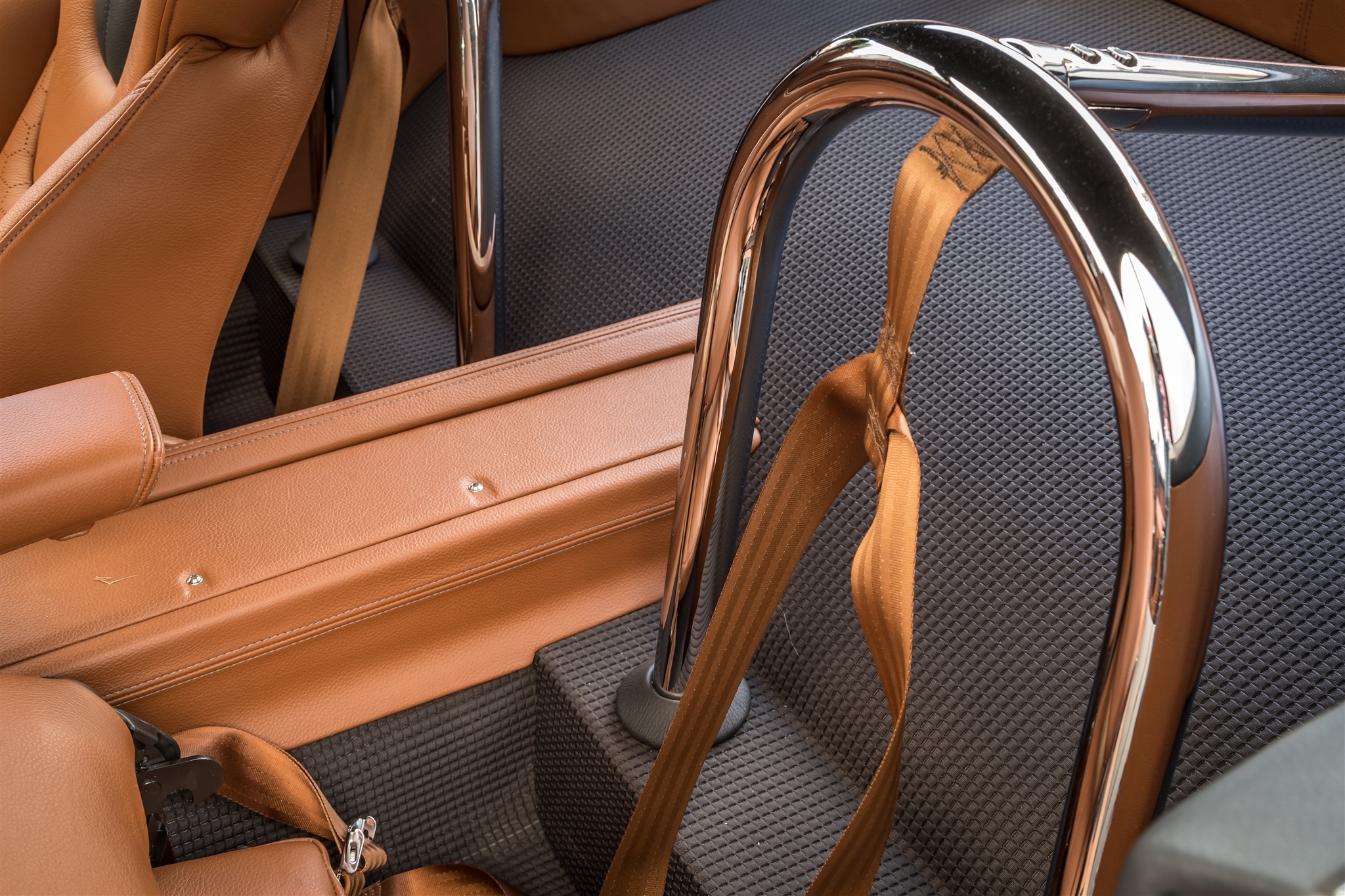

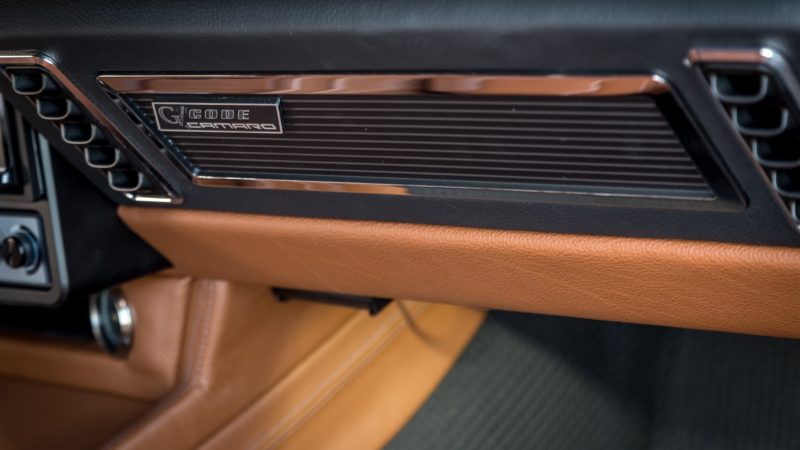

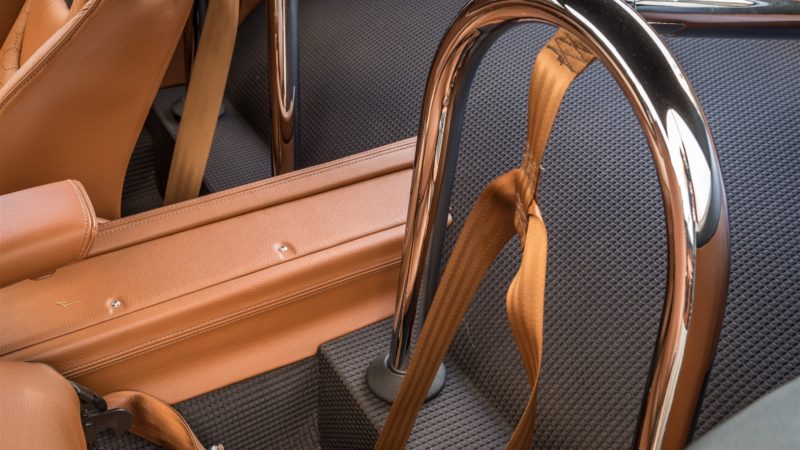

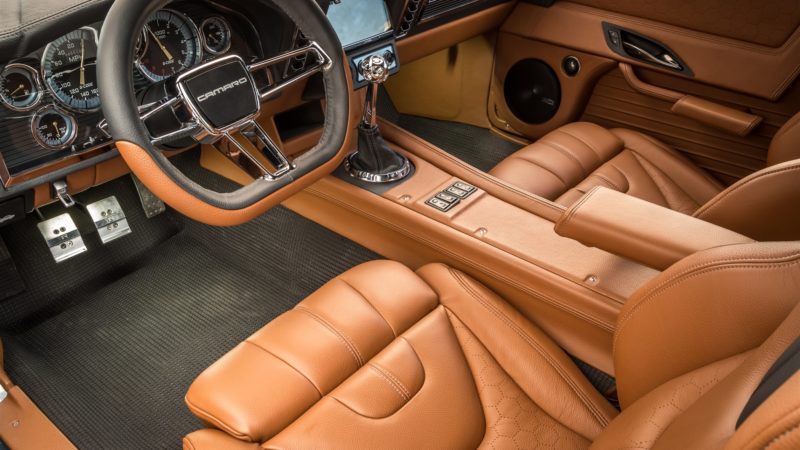

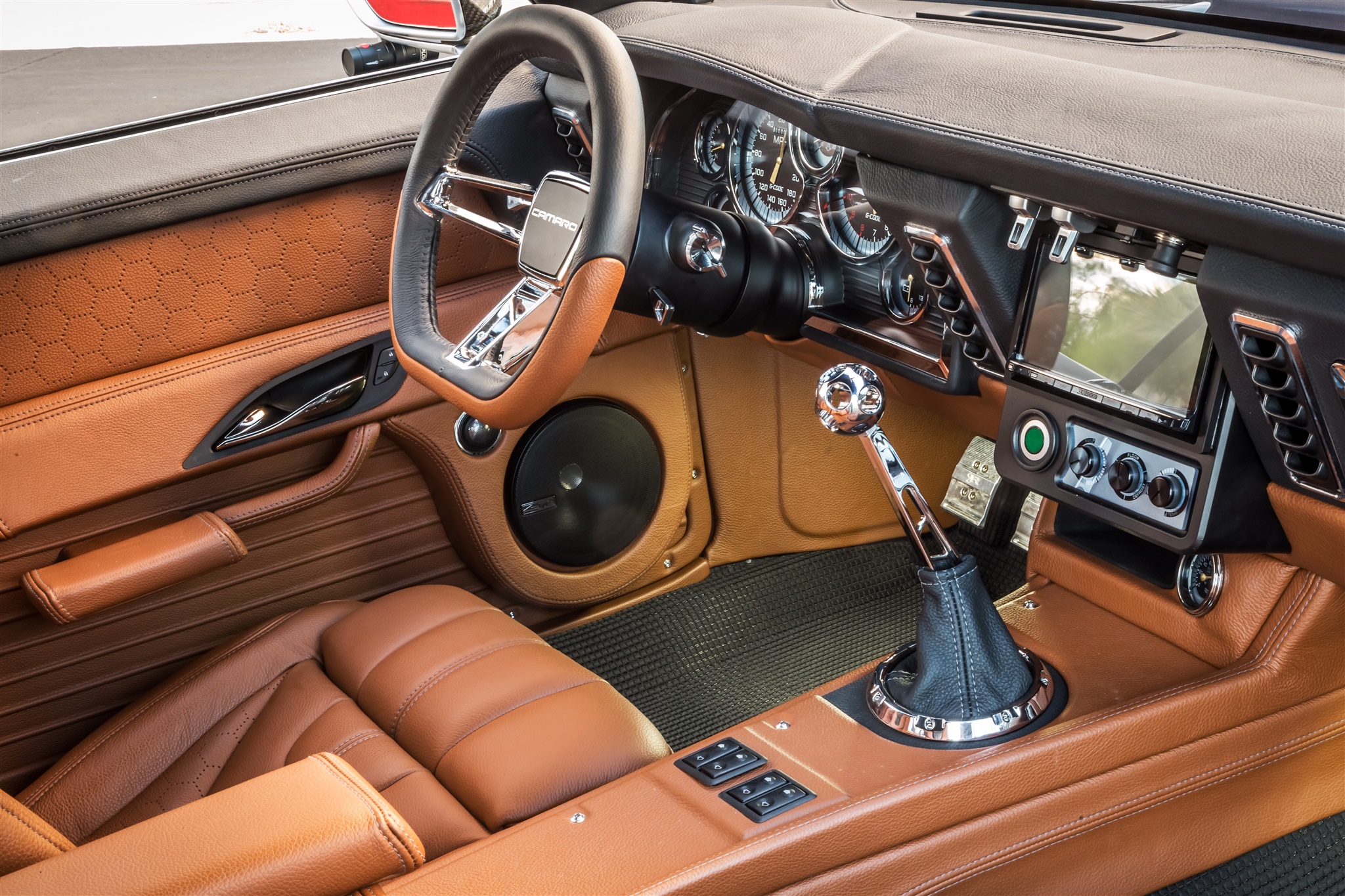

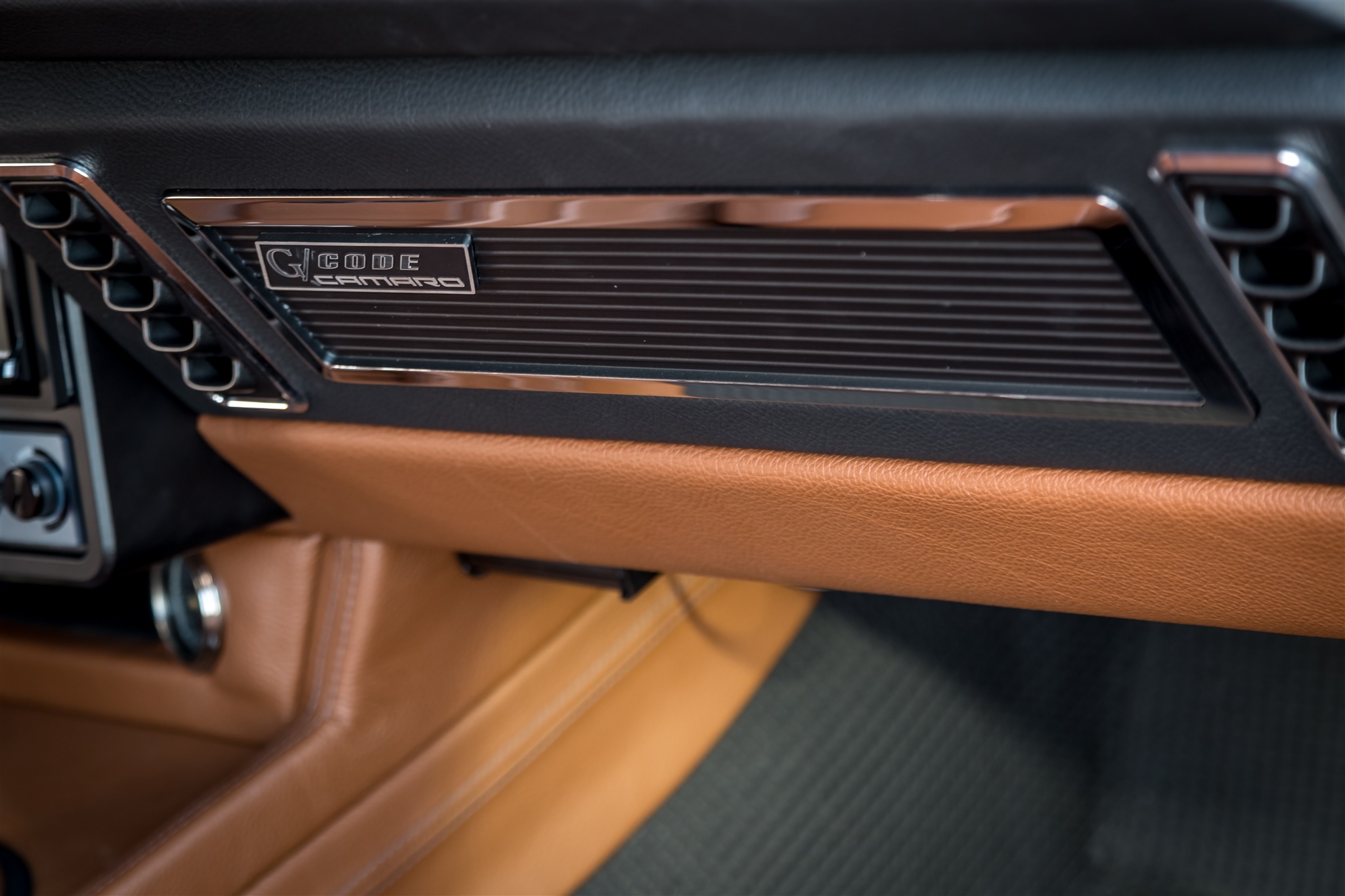

The cabin of the first generation Camaro was carefully designed with driver comfort in mind. The interior upholstery was custom crafted by Upholstery Unlimited and is kept at the perfect temperature with a Vintage Air climate control system.

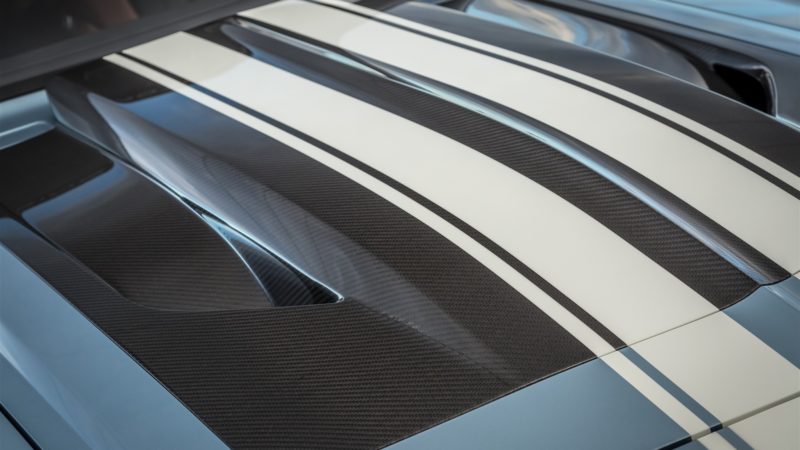

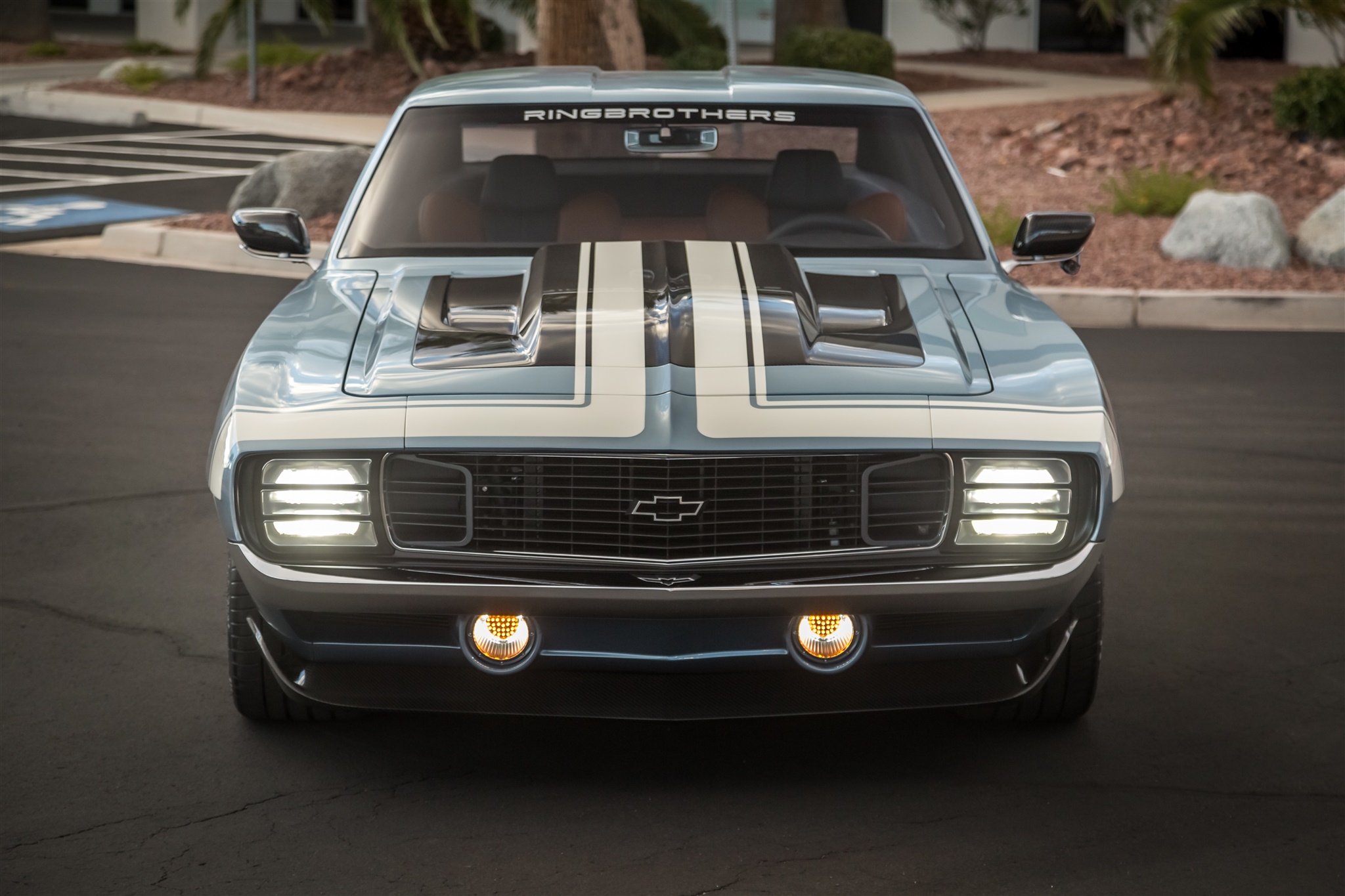

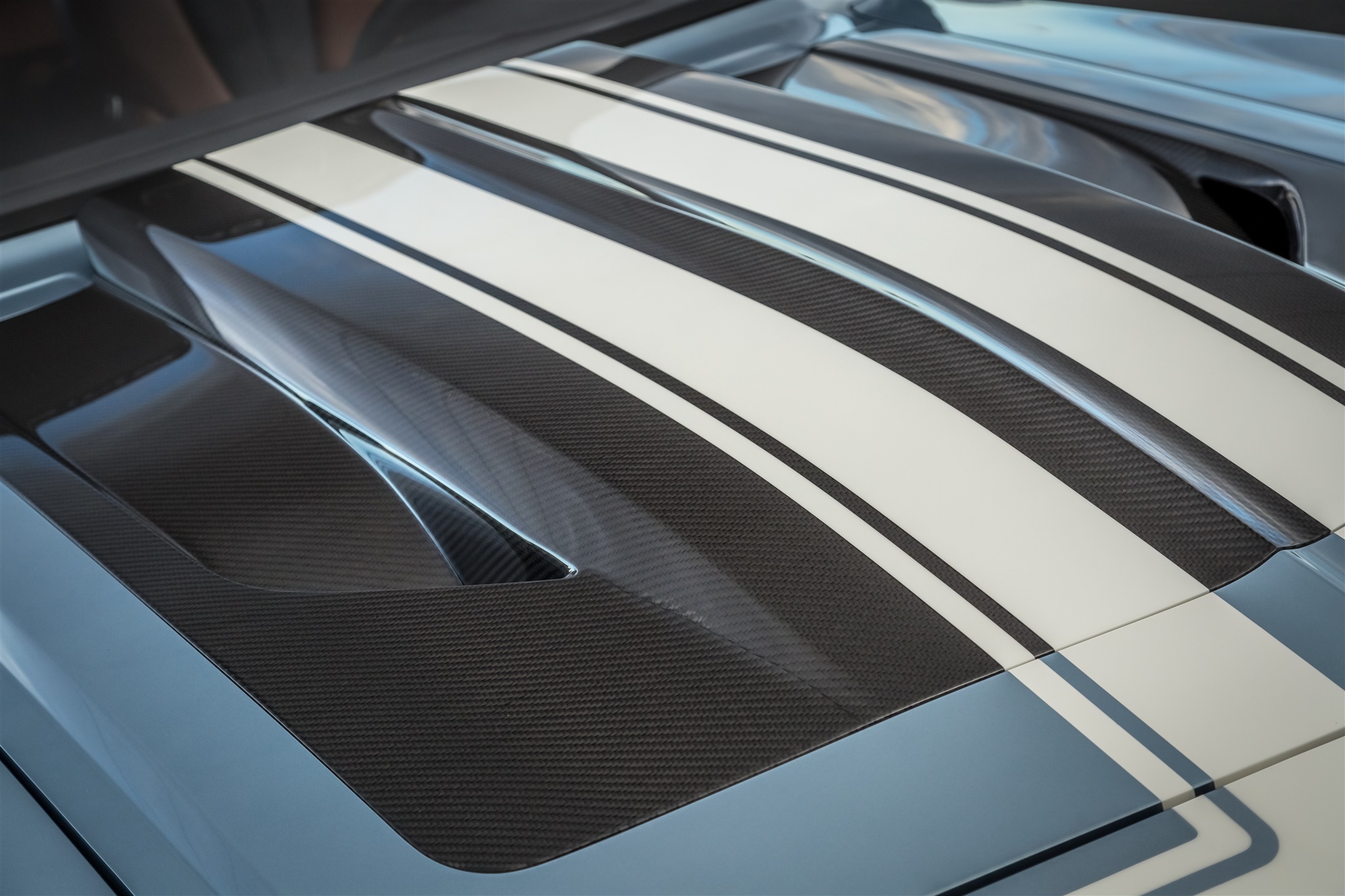

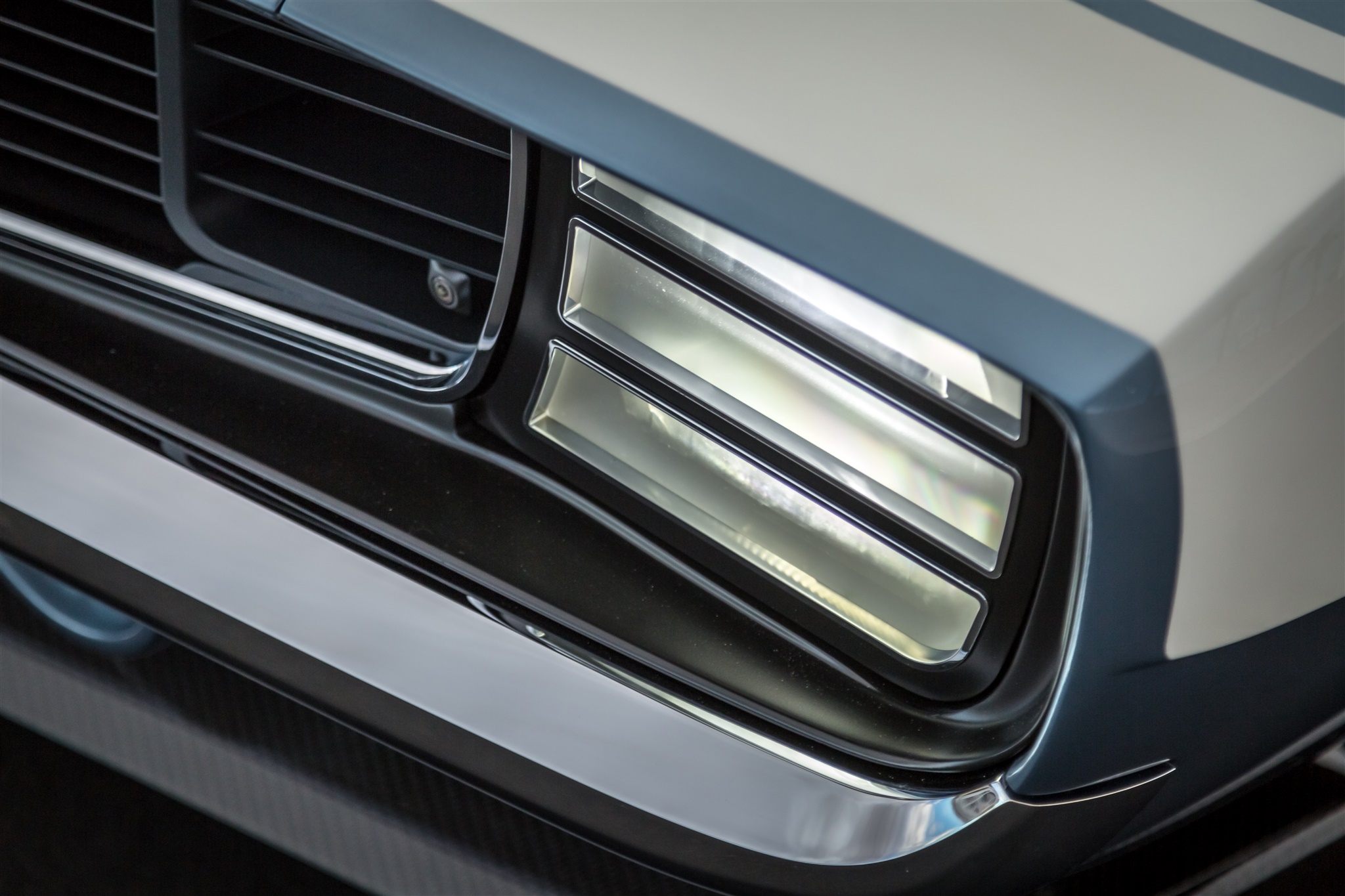

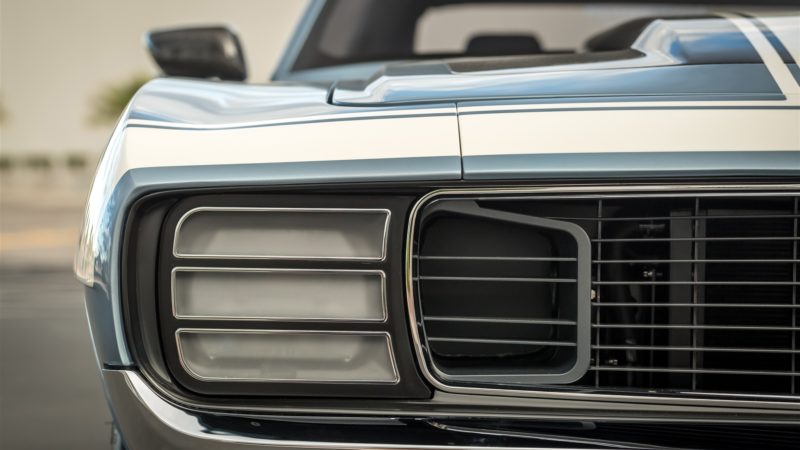

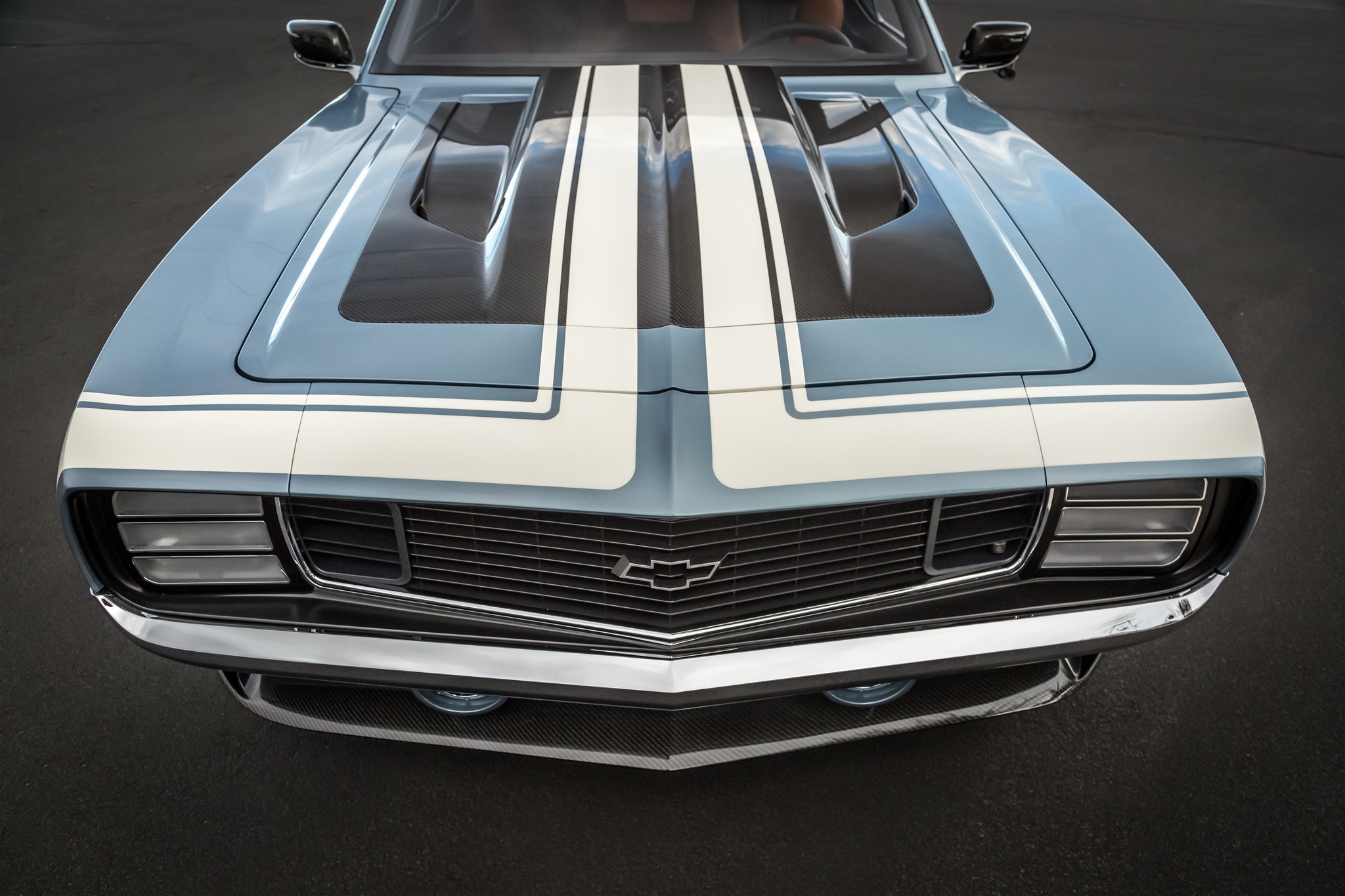

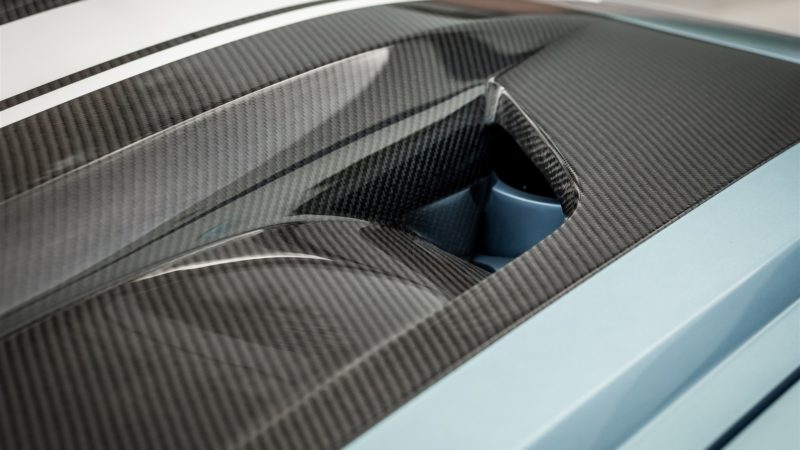

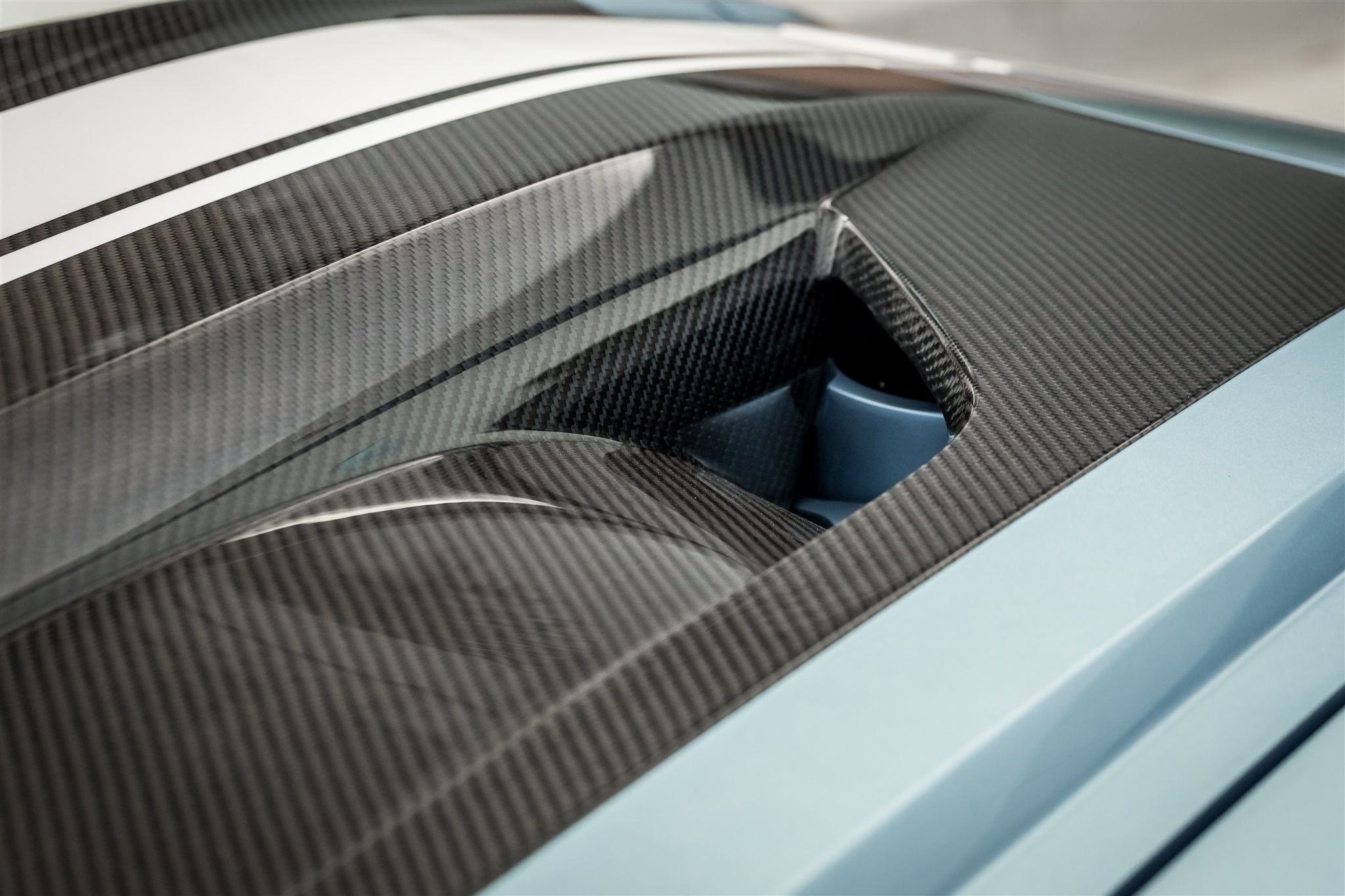

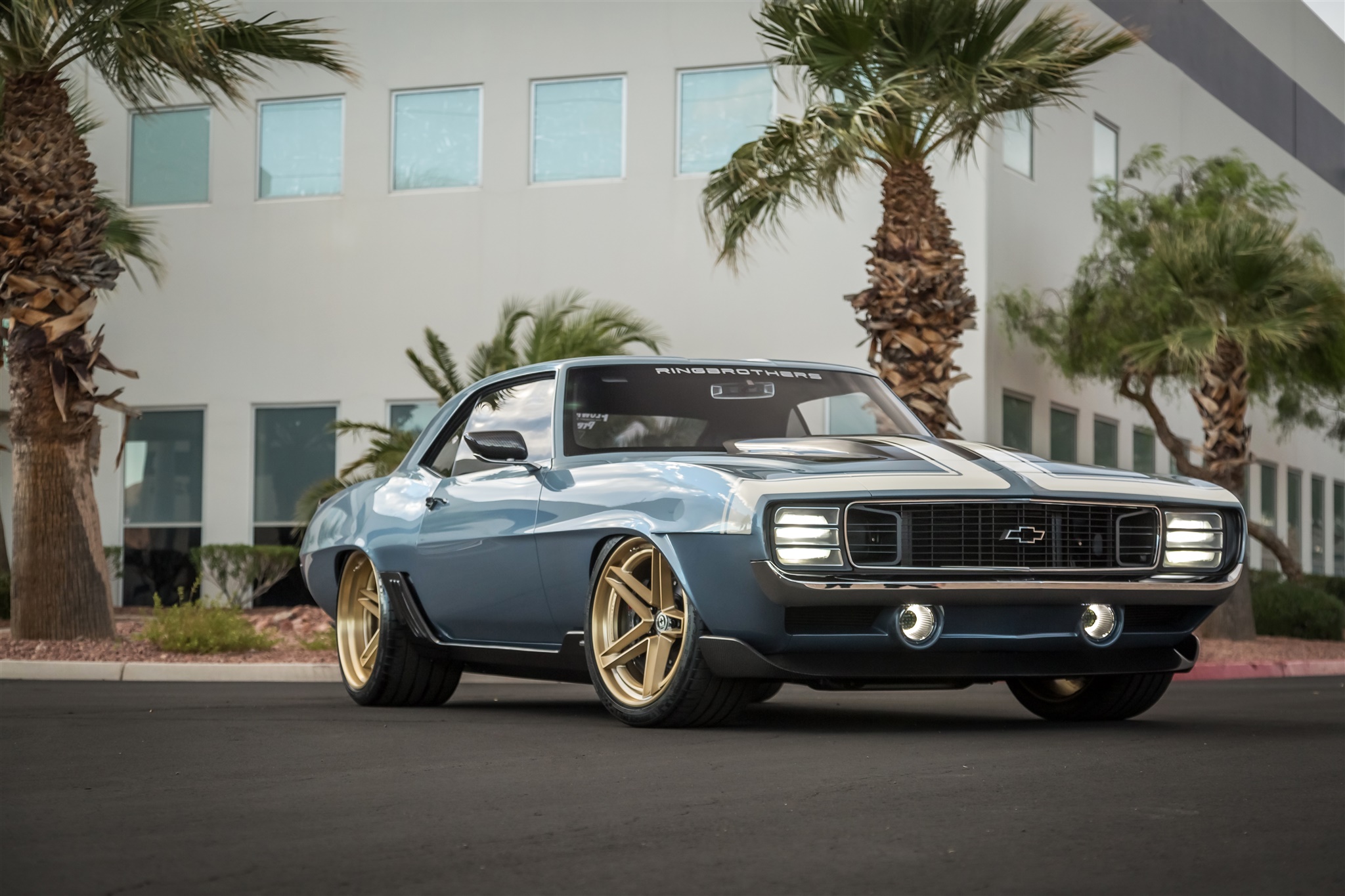

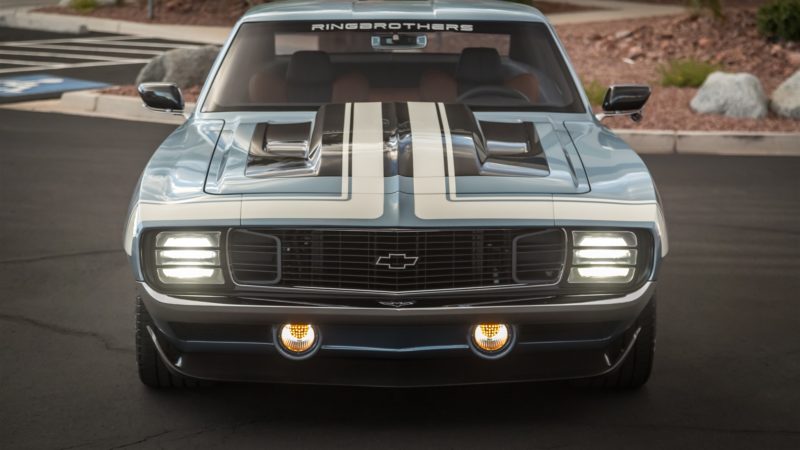

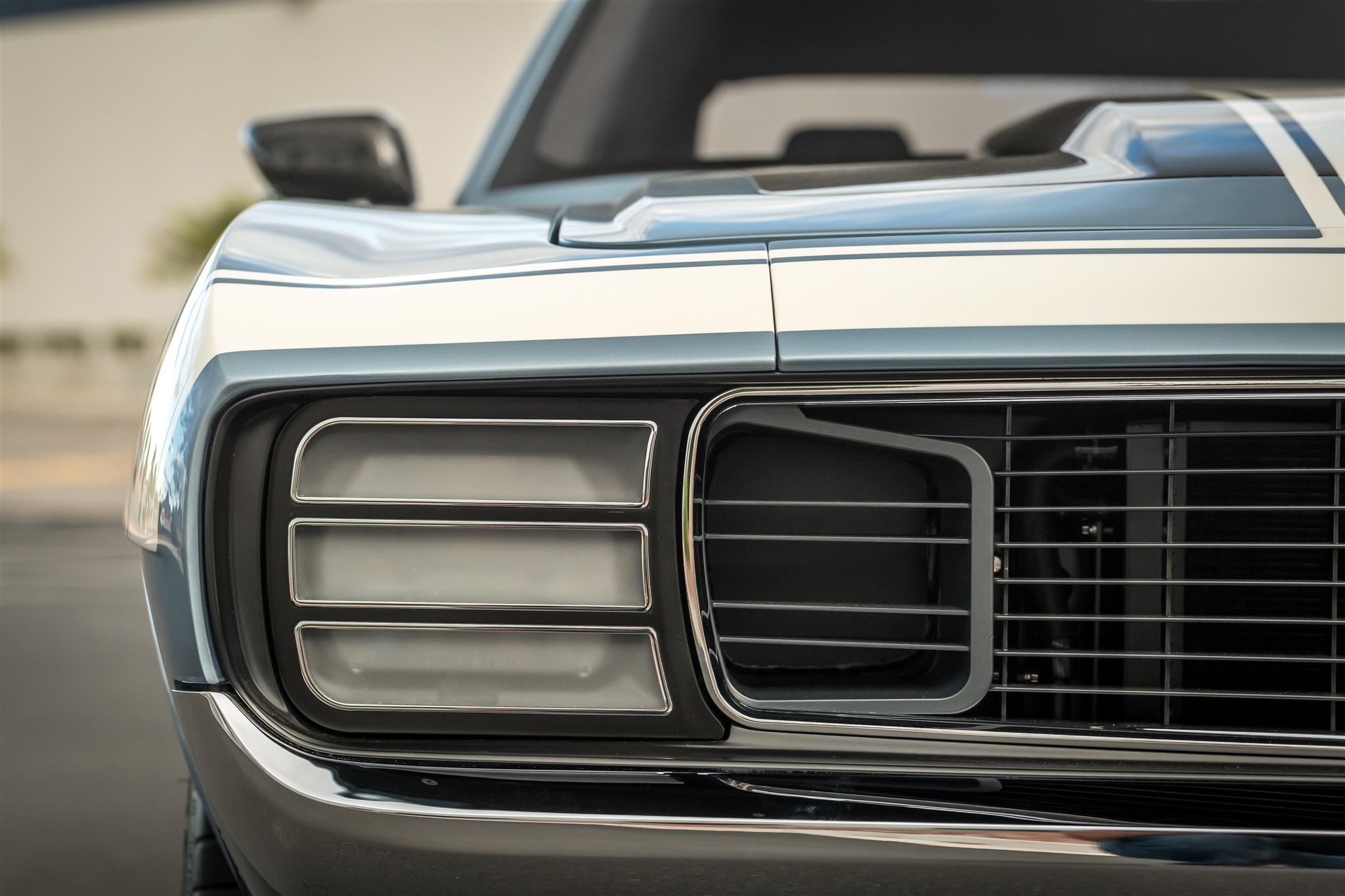

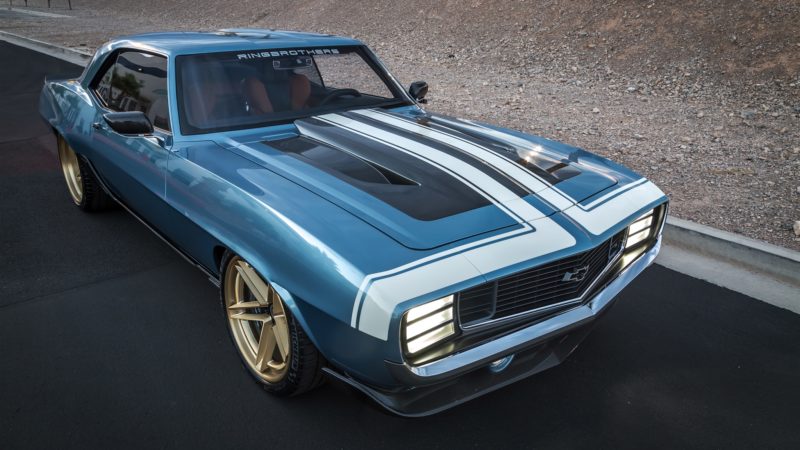

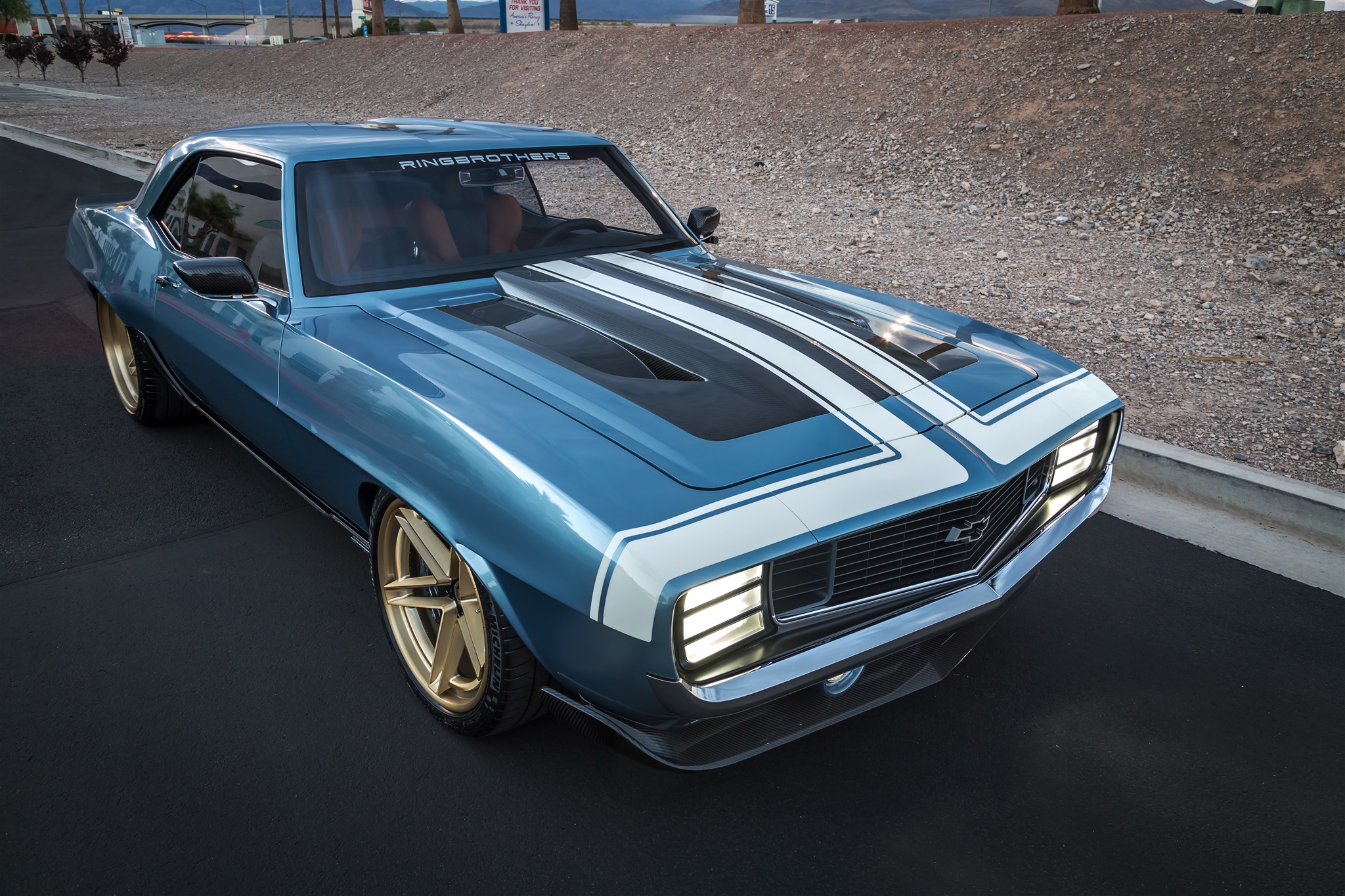

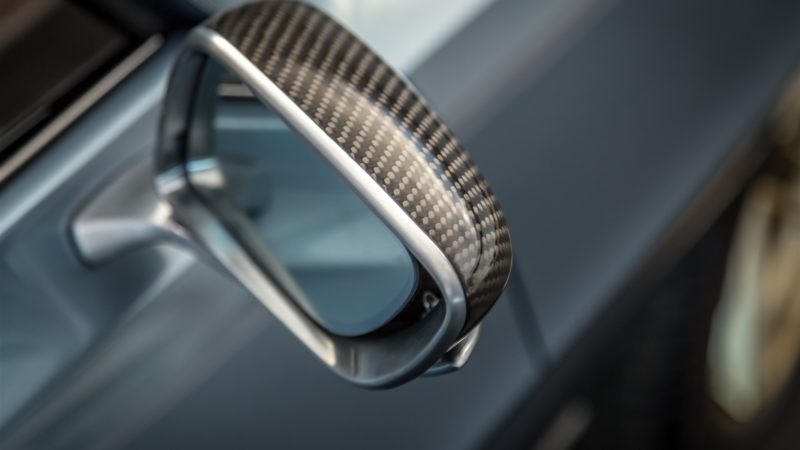

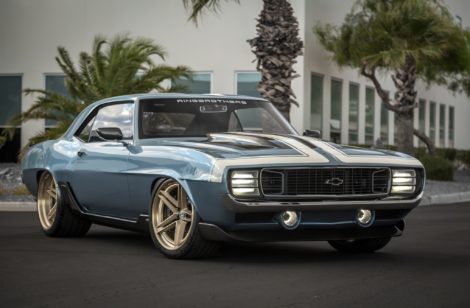

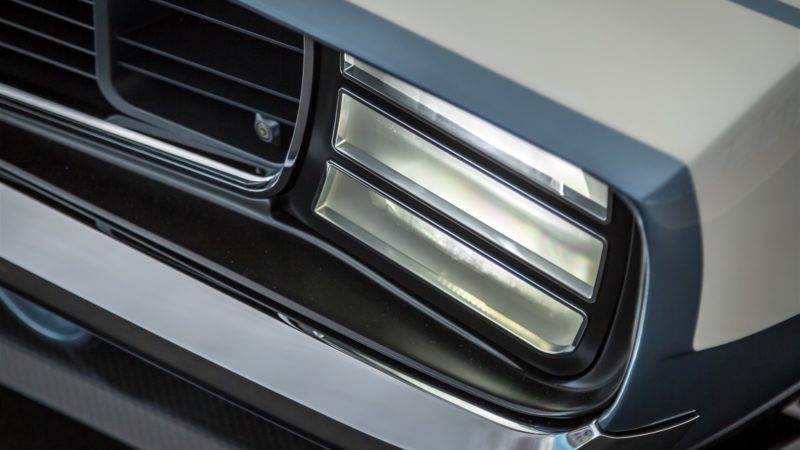

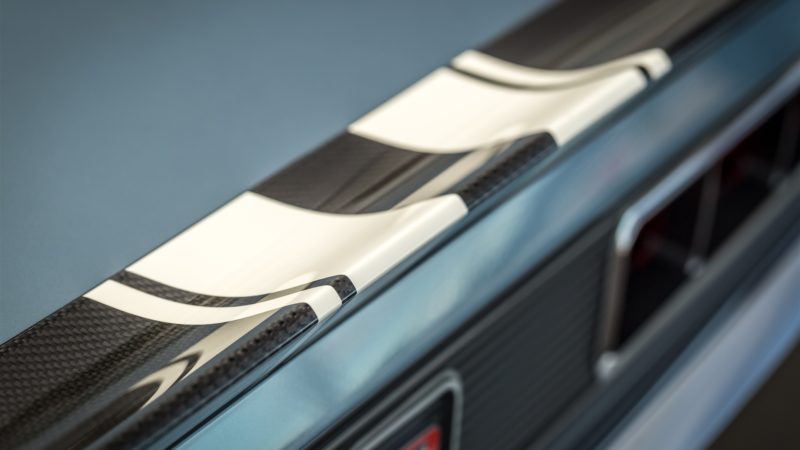

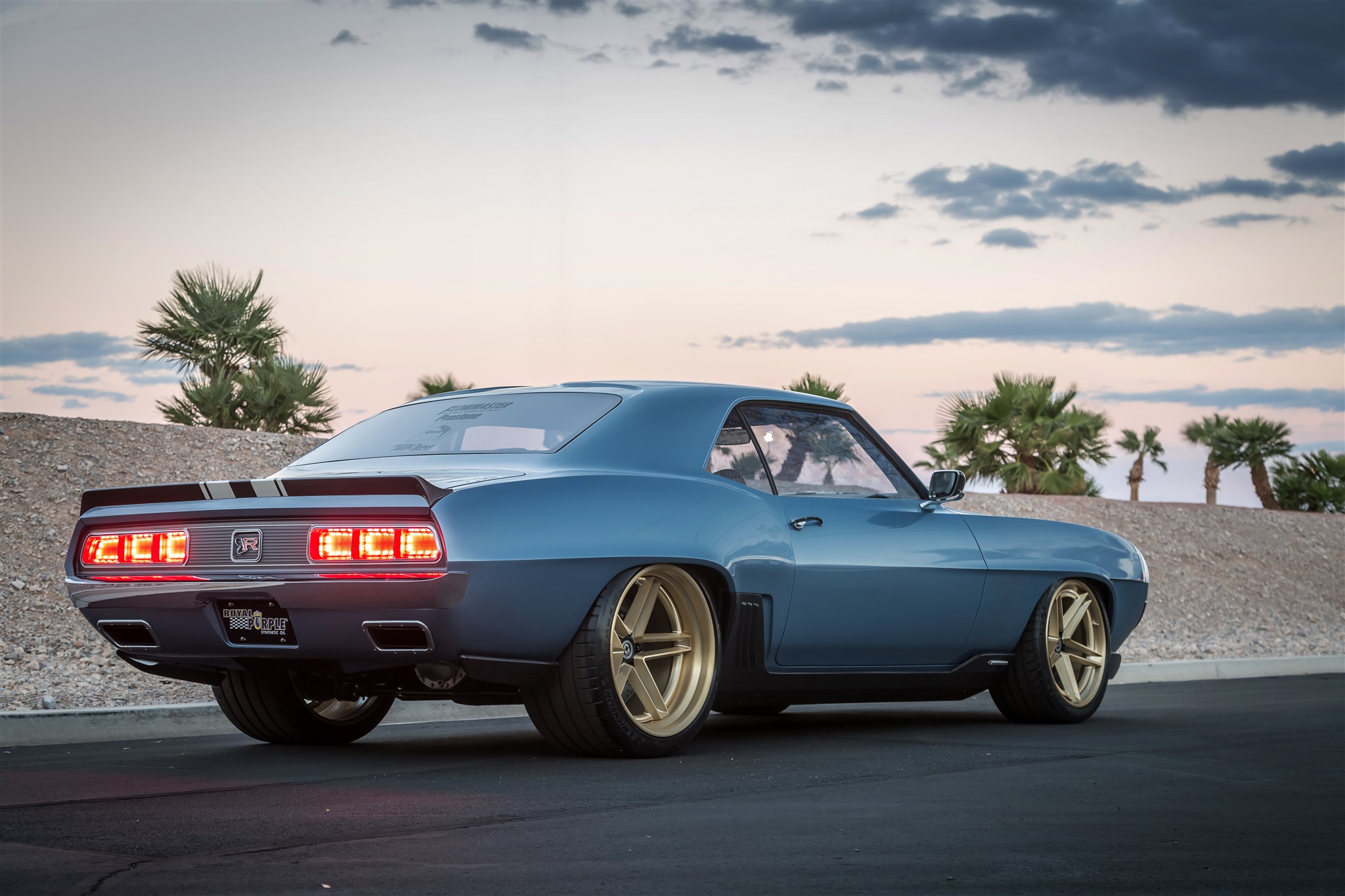

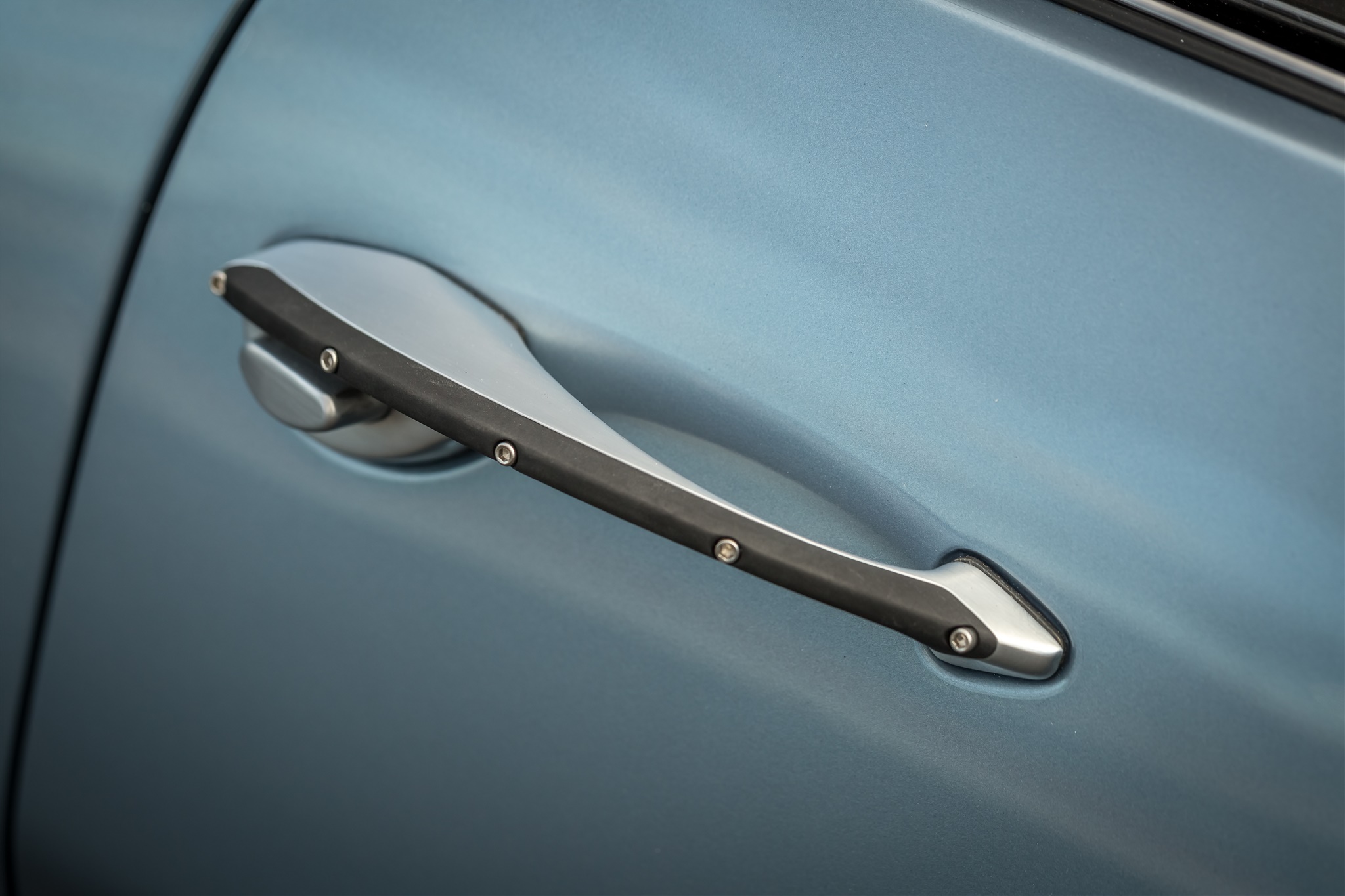

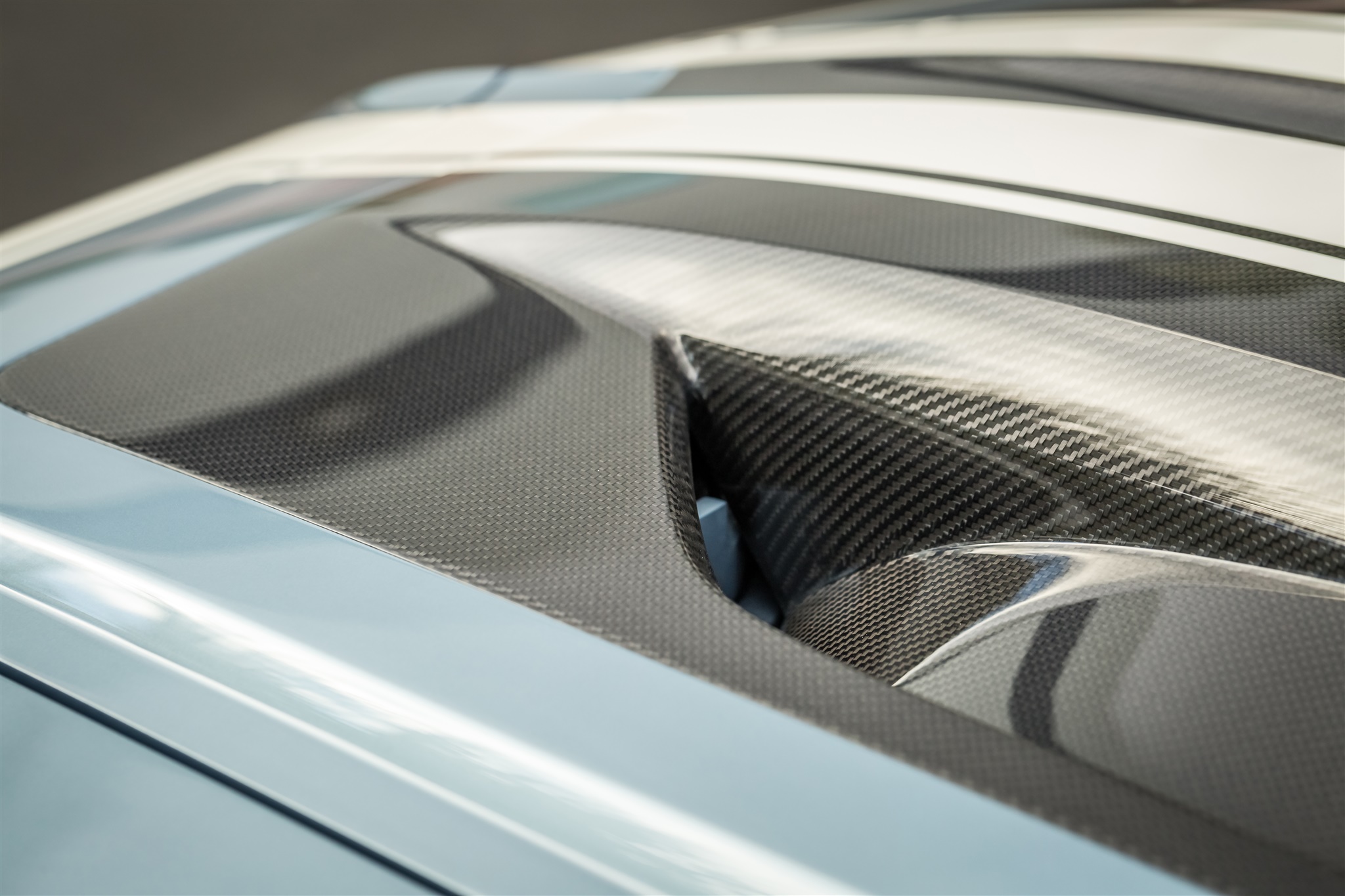

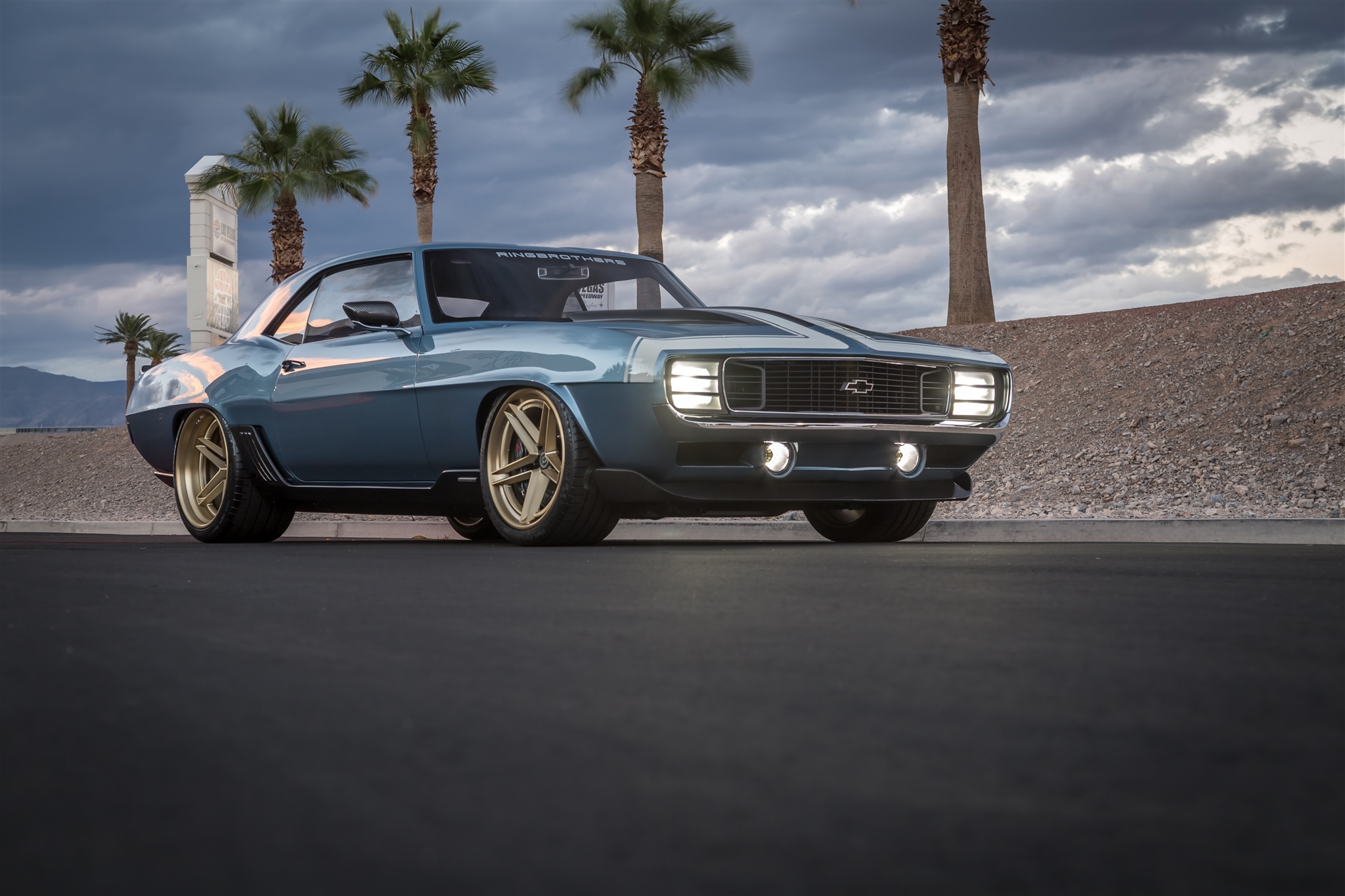

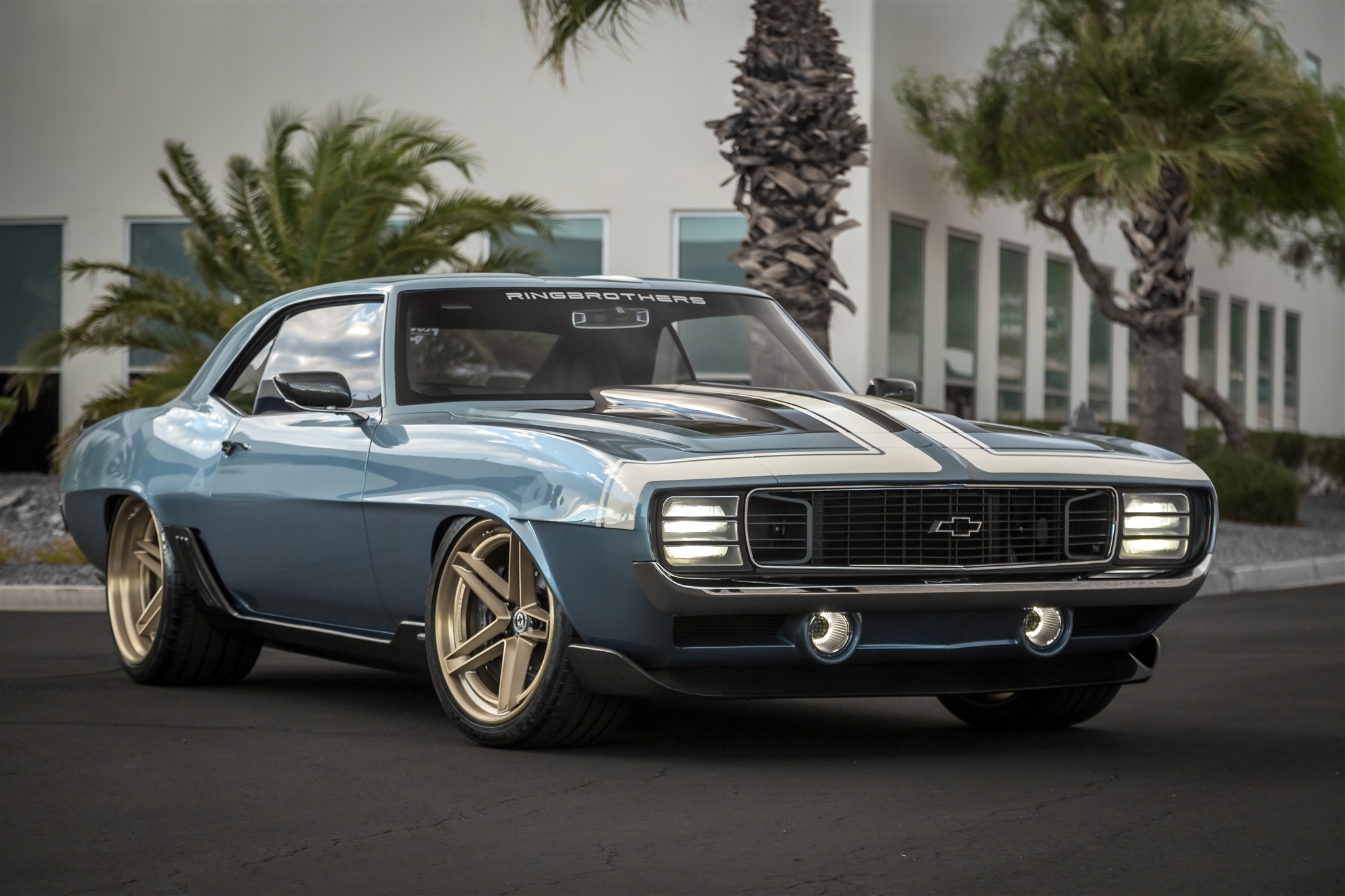

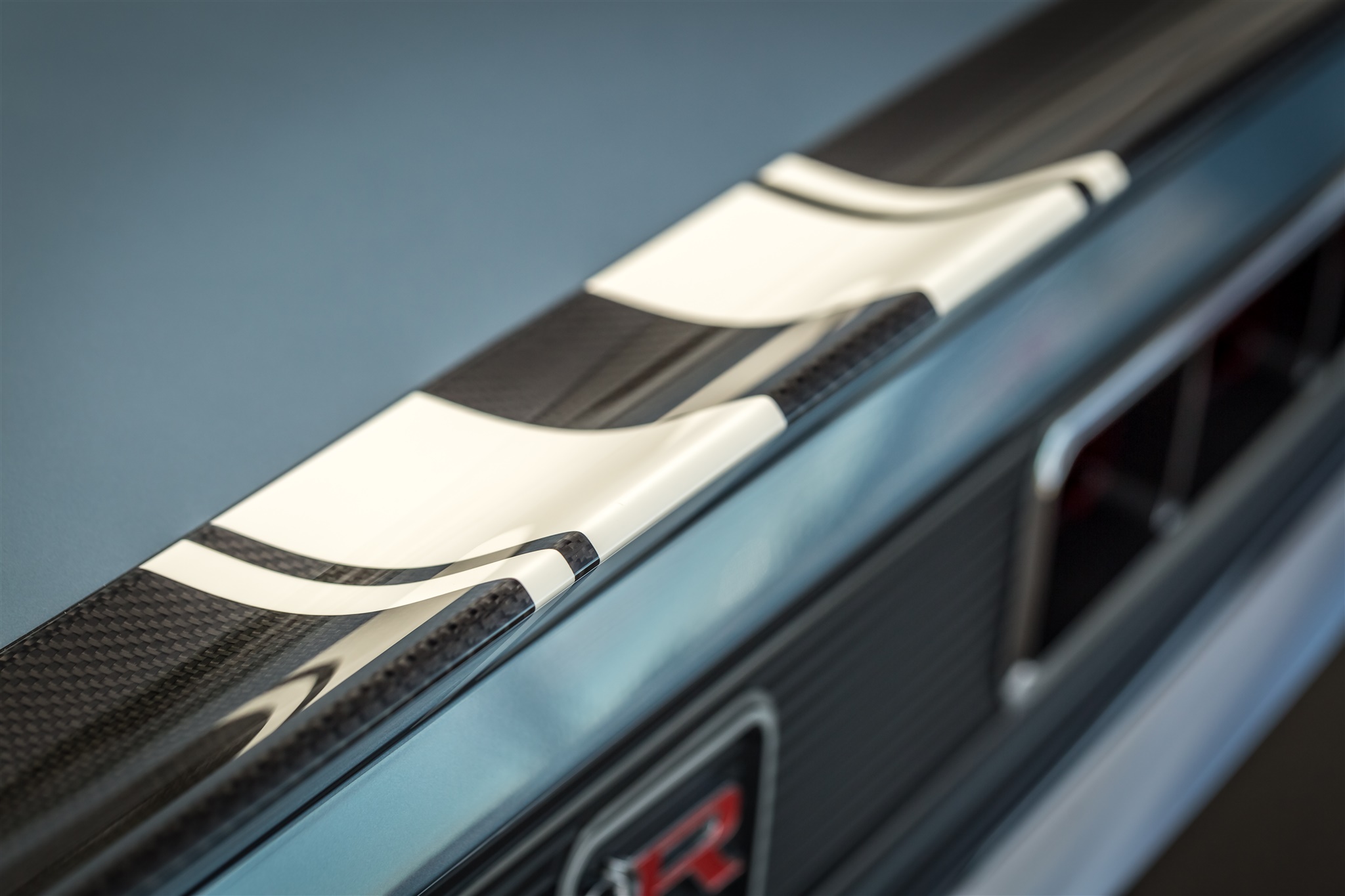

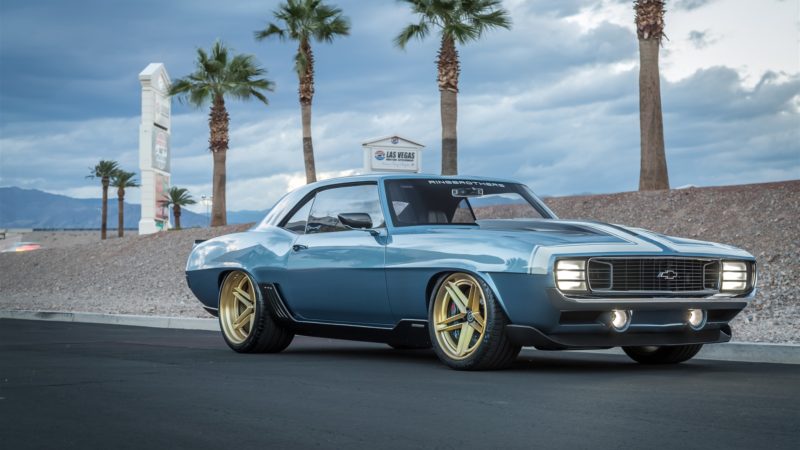

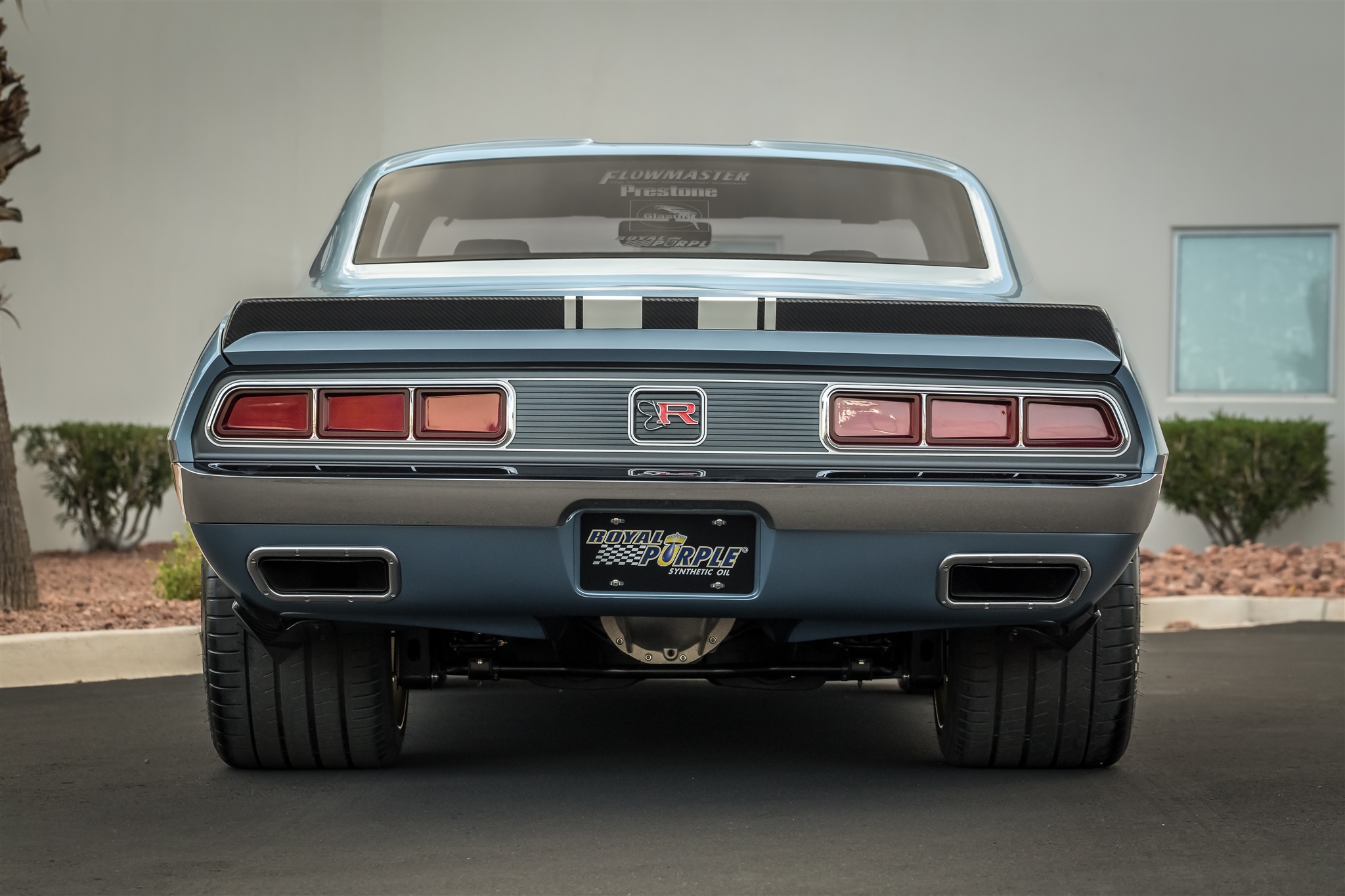

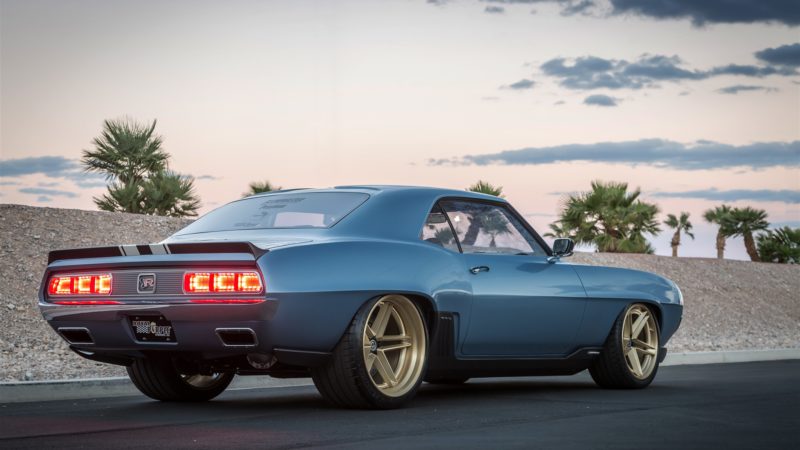

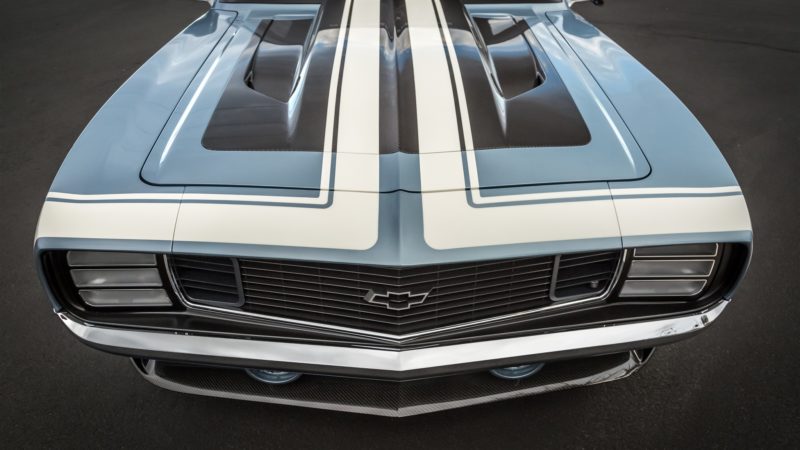

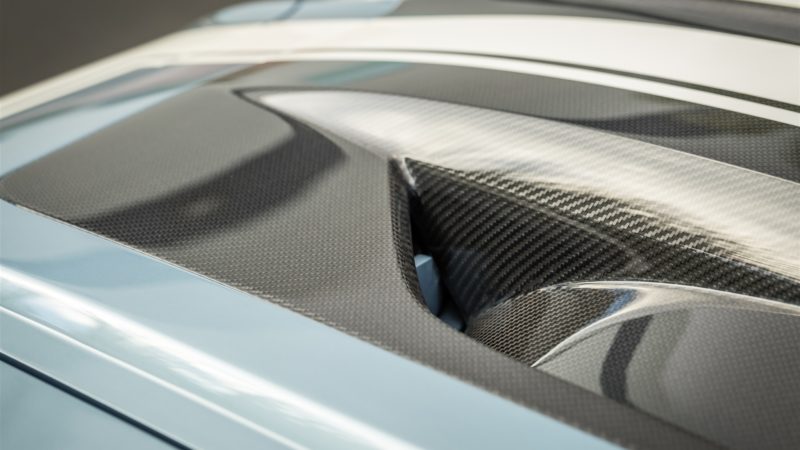

Ringbrothers walked a tight rope with the body of the “G-Code” Camaro. Mike and Jim Ring wanted to stay within the confines of what makes a ’69 Camaro a ’69 Camaro, but also wanted to push the boundaries of style to make the car stand apart. Every part of the car was customized including the bumpers and the grille, while the hood was crafted using hand-laid carbon fiber. To highlight the body work, “G-Code” was coated in a custom BASF Glasurit hue named “Blue Print.”
Build Sheet
Manufacturers
- 3M - Paint Products
- Aeromotive Inc. - Fuel Tank & Fuel Pump
- AFCO Racing Products - Radiator; Shocks
- ARP – Automotive Racing Products - Fasteners
- Baer Brakes - Brakes; Front Calipers Specs 6R-15" and Rear Calipers Specs 6R-14"
- BASF Automotive Refinish - Glasurit paint
- Bowler Performance - Transmission upgrades
- California Car Cover Co. - Cover
- Centerforce Clutches - Clutch

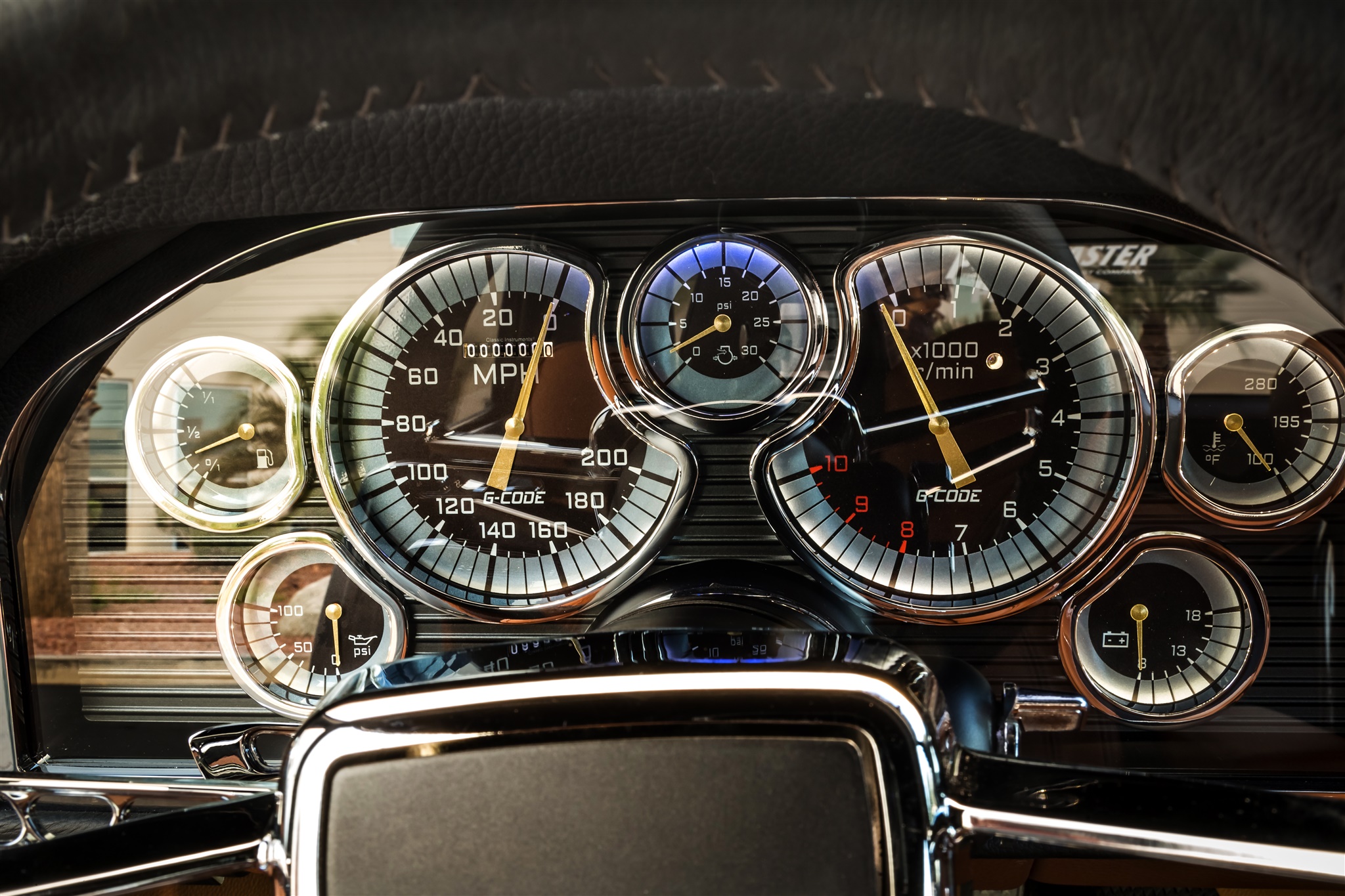

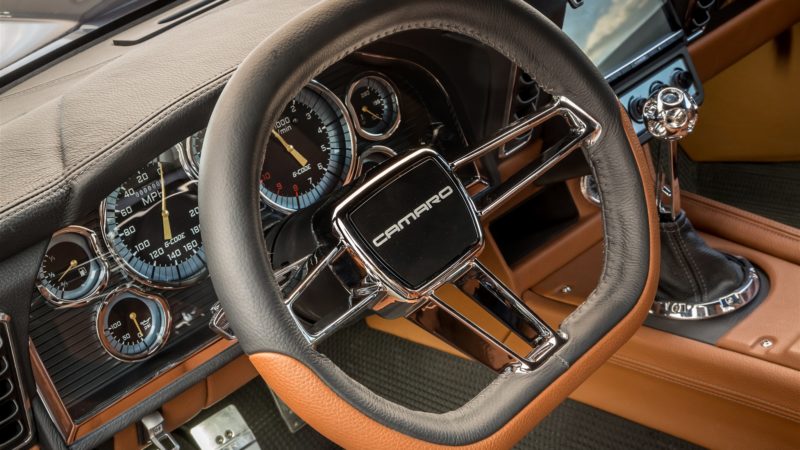

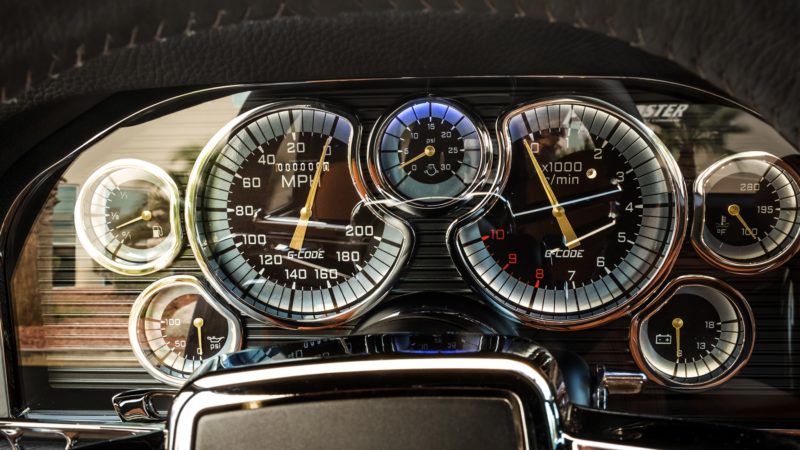

- Classic Instruments - Gauges
- Detroit Speed, Inc. - Rack & Pinion; Chassis; Front and Rear Suspension; Sway Bars
- Dynamat Inc. - Sound Deadening
- Flowmaster - Exhaust
- Global Finishing Solution | BFS - Paint Booth
- Heatshield Products, Inc. - Exhaust Heat Shield Insulation
- Holley Performance Products - Fuel Management
- HRE Performance Wheels - Wheels
- IDIDIT, LLC. - Steering Column
- JL Audio, Inc. - Head Unit; Speakers Amplifier
- John’s Industries Inc. - Rear End Mfg; GM 12 Bolt
- Michelin - Tires
- Miller - Welding Equipment
- MSD Performance - Ignition
- Optima Batteries - Battery in Trunk
- Painless Performance Products - Wiring
- Prestone - Cooling Fluids
- QA1 - Drive Shaft

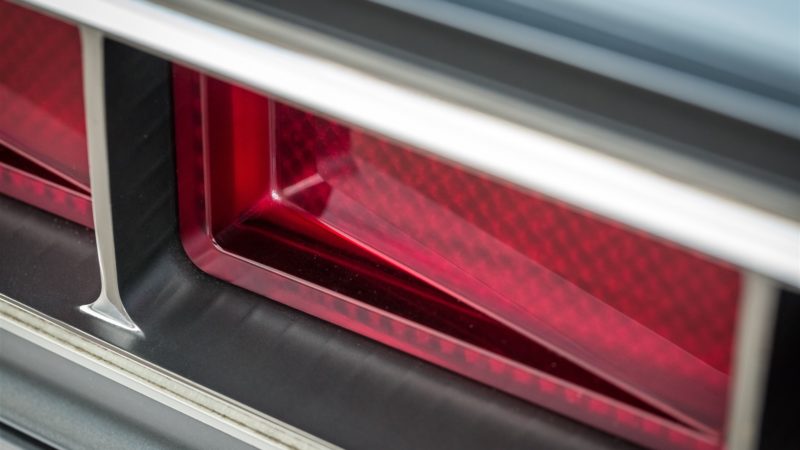

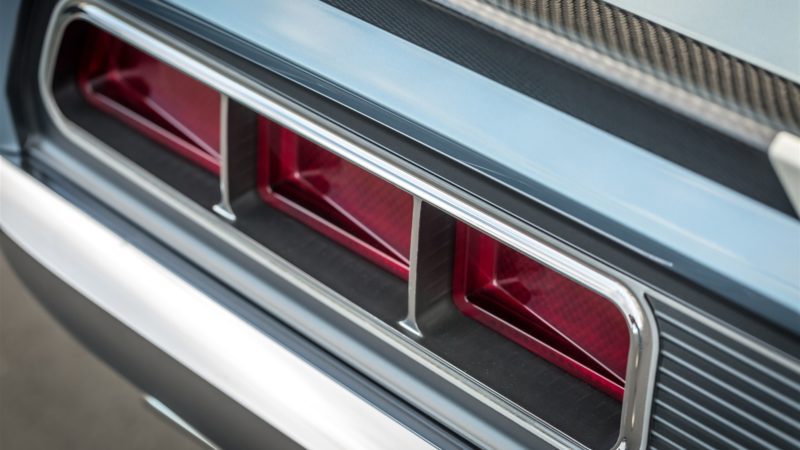

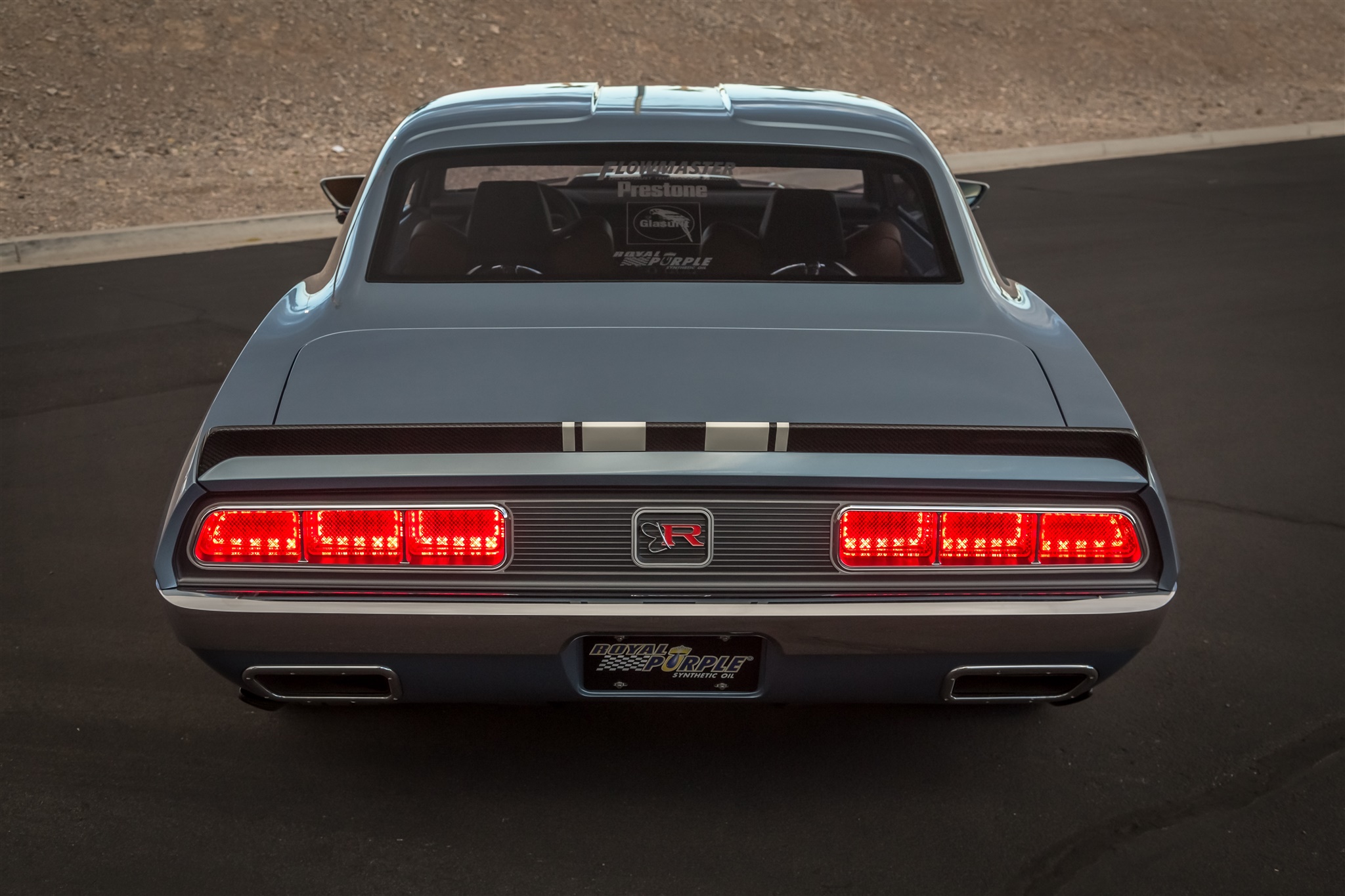

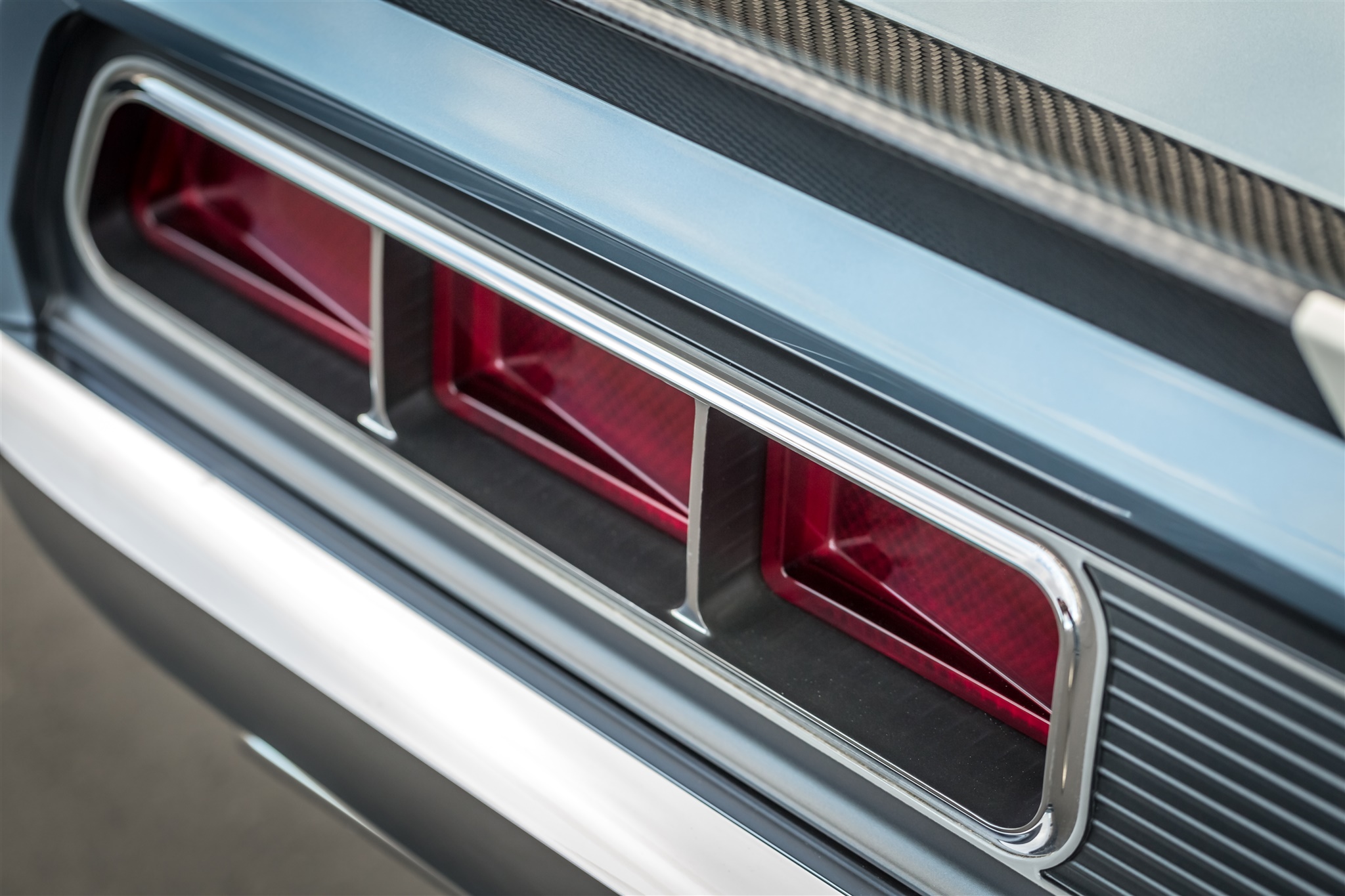

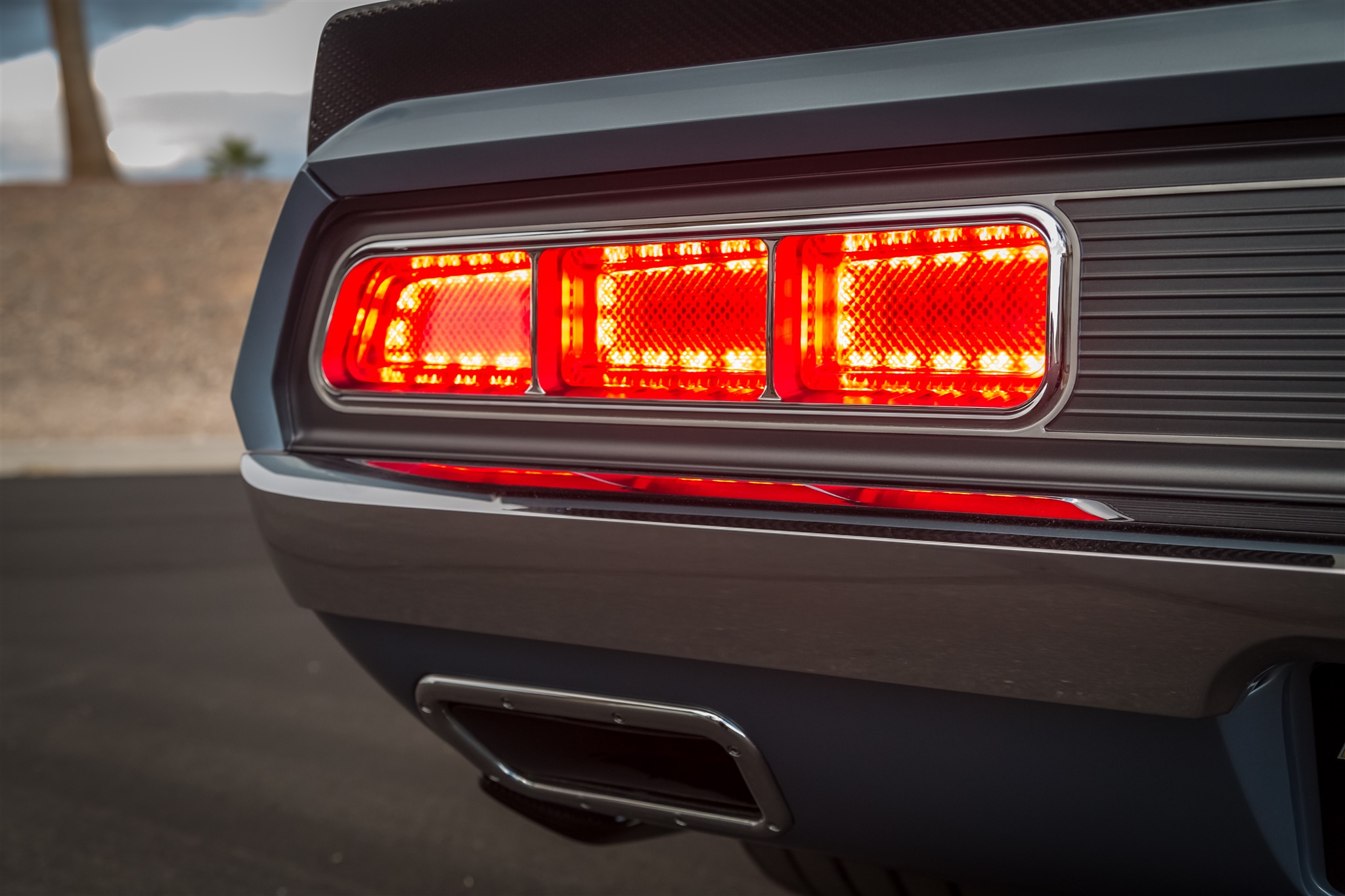

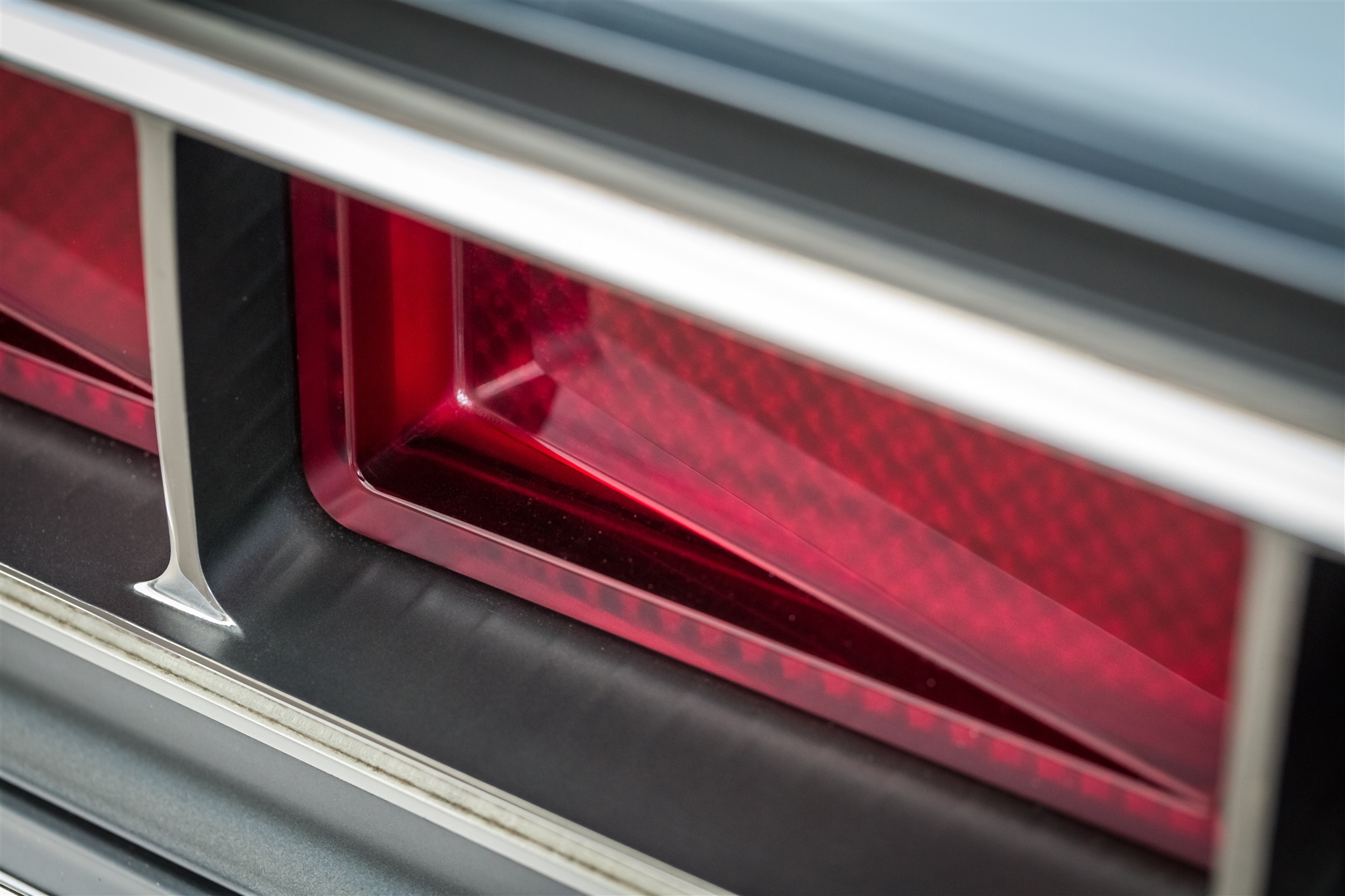

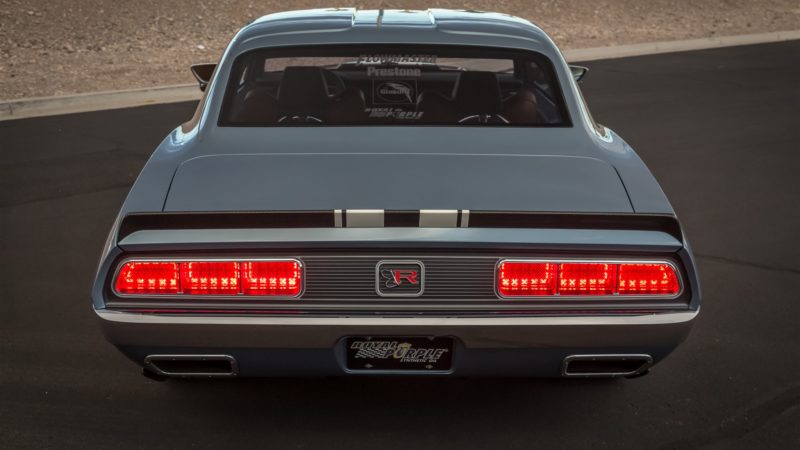

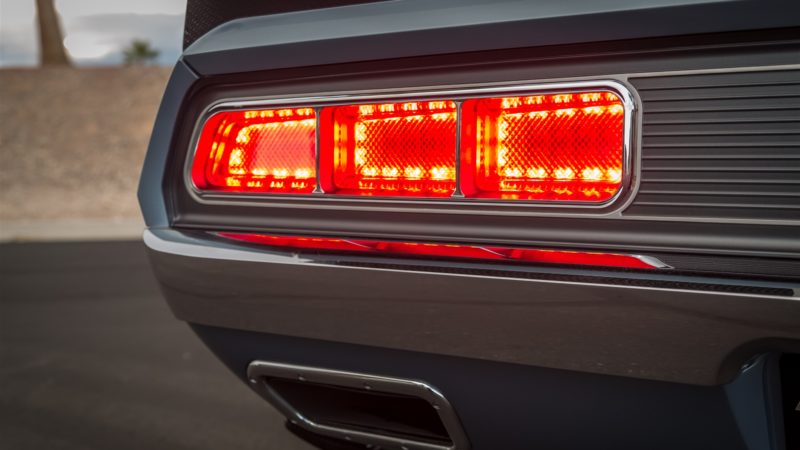

- Ringbrothers - Builder; Tail Light Lens; Exhaust Headers
- Royal Purple - Engine Oil; Differential Oil; Power Steering Fluid
- Spal Automotive USA - Fans
- Vintage Air - A/C System
- Wegner Motorsports - Engine, 416 LS3
- Whipple Superchargers - Forced Induction
