Vehicle Story

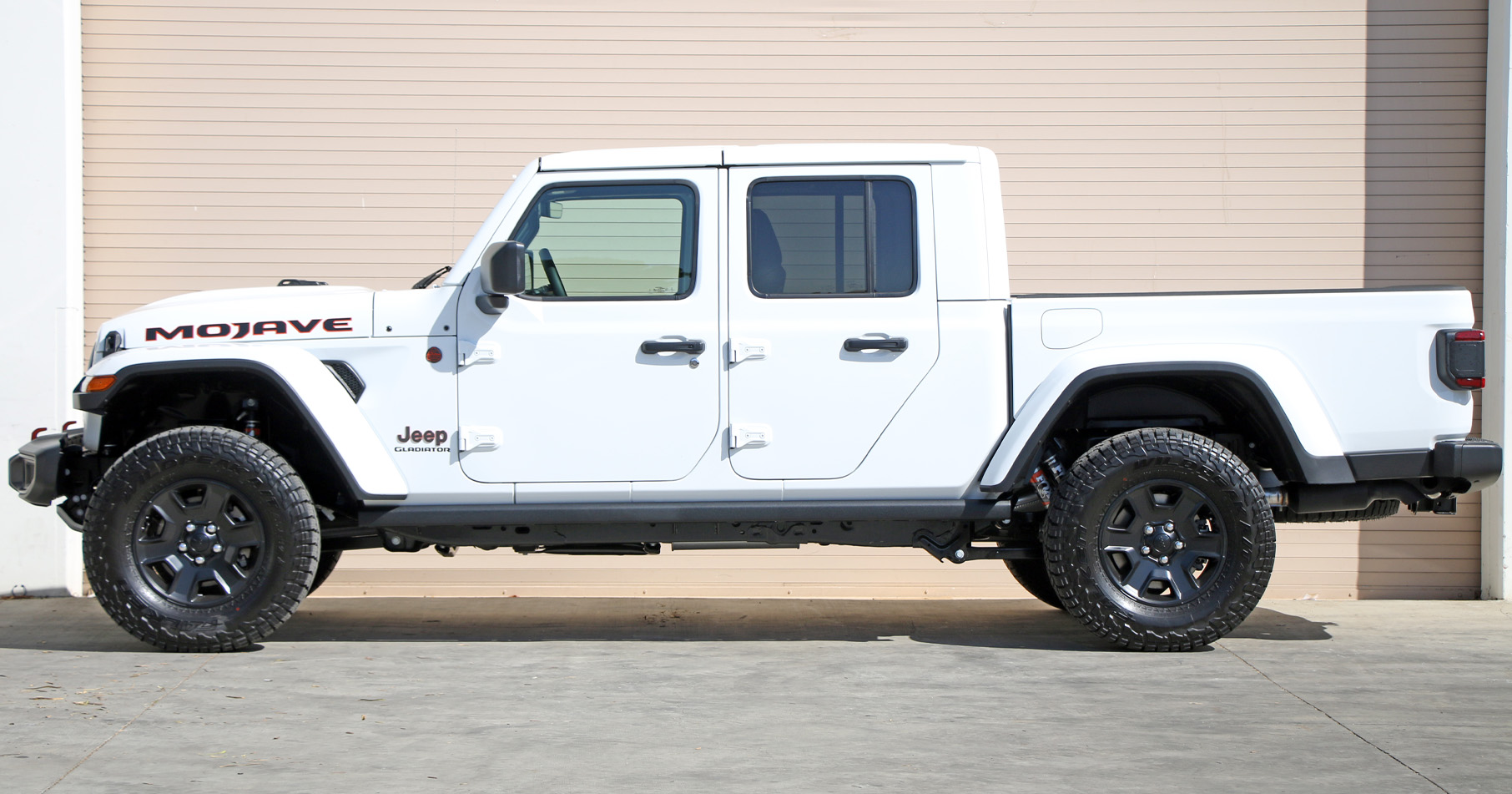

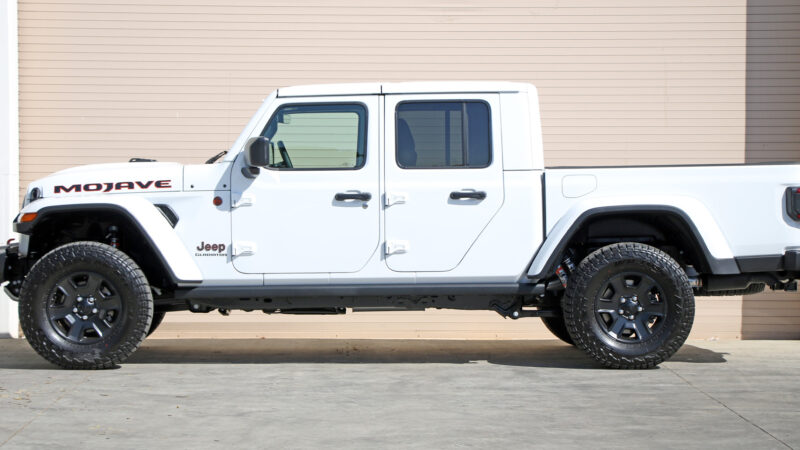

RockJock 4x4's 2020 JT Gladiator Mojave was purchased new in 2020 by John Currie. In stock configuration, it was used to develop all of our RockJock Gladiator components as well as researching and developing components that are specific to the Mojave model.

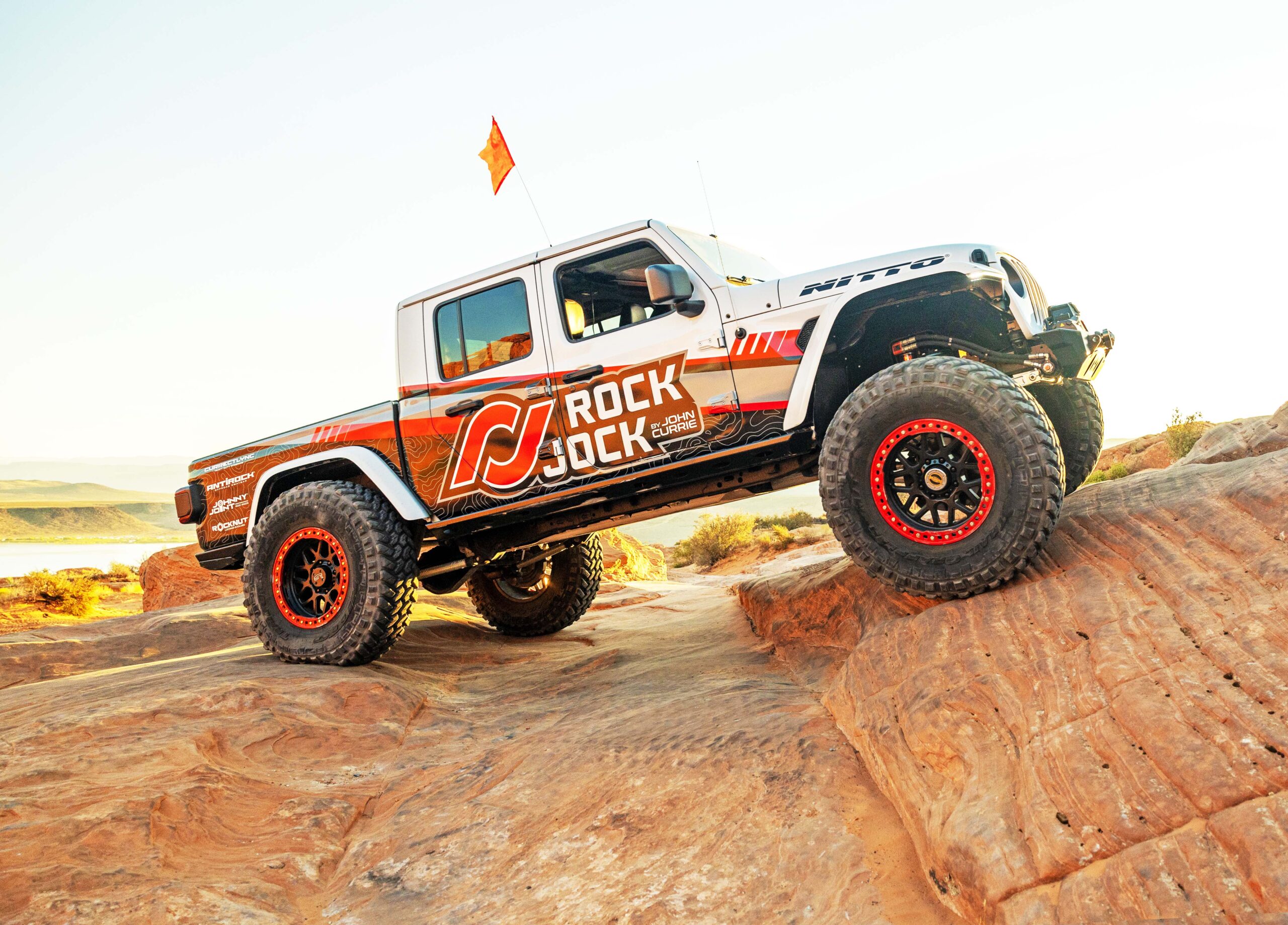

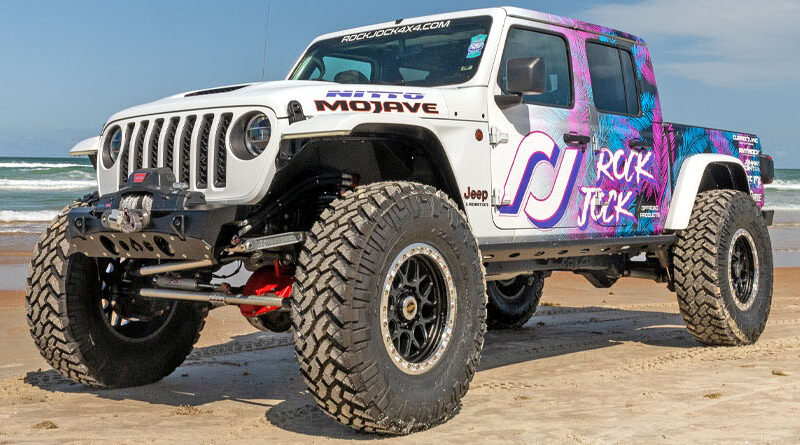

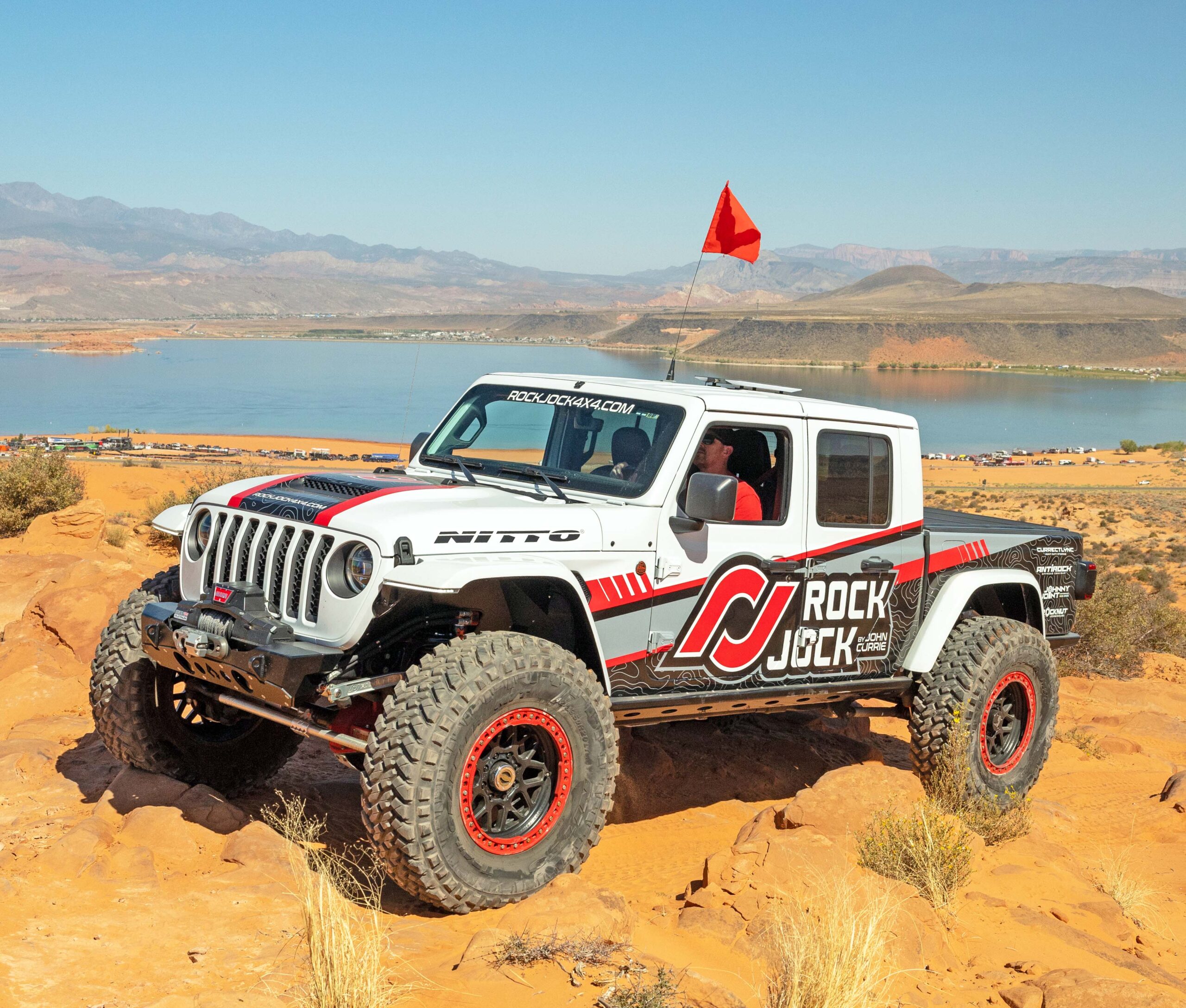

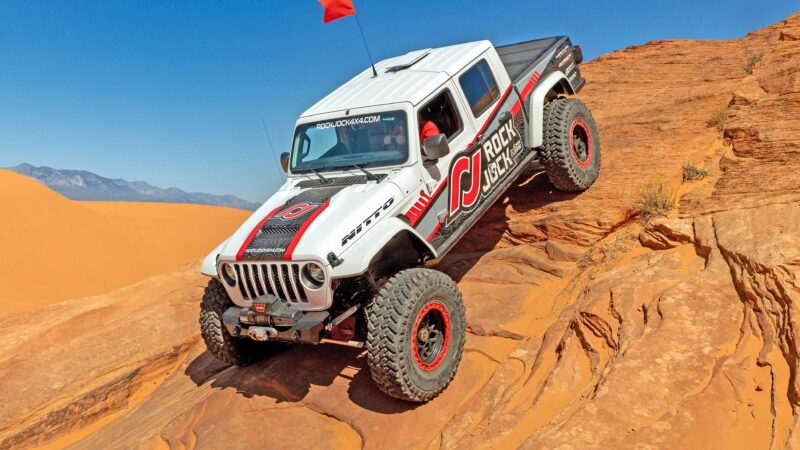

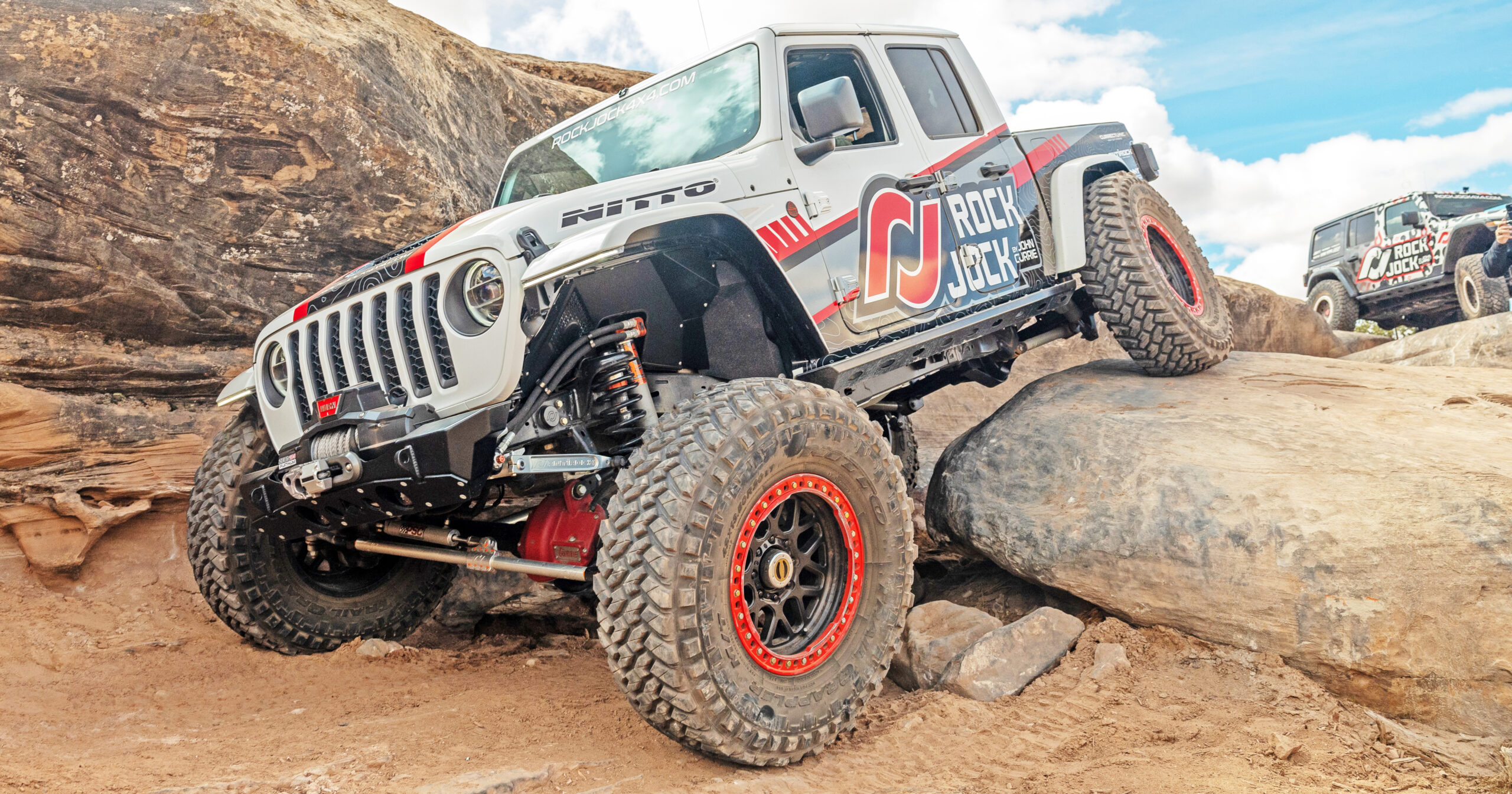

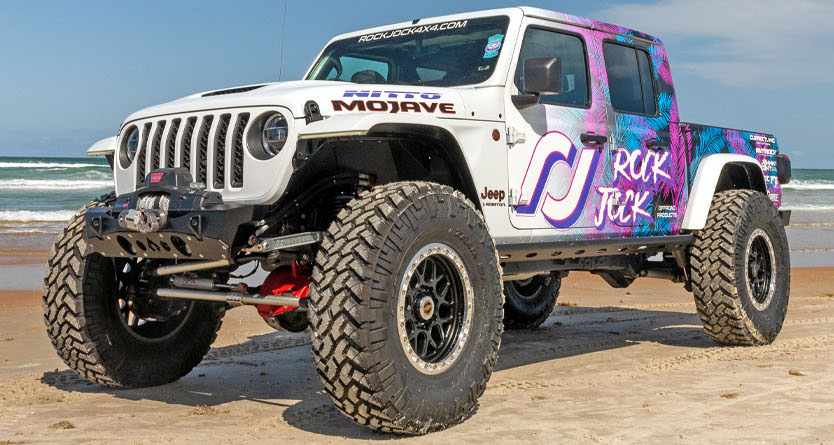

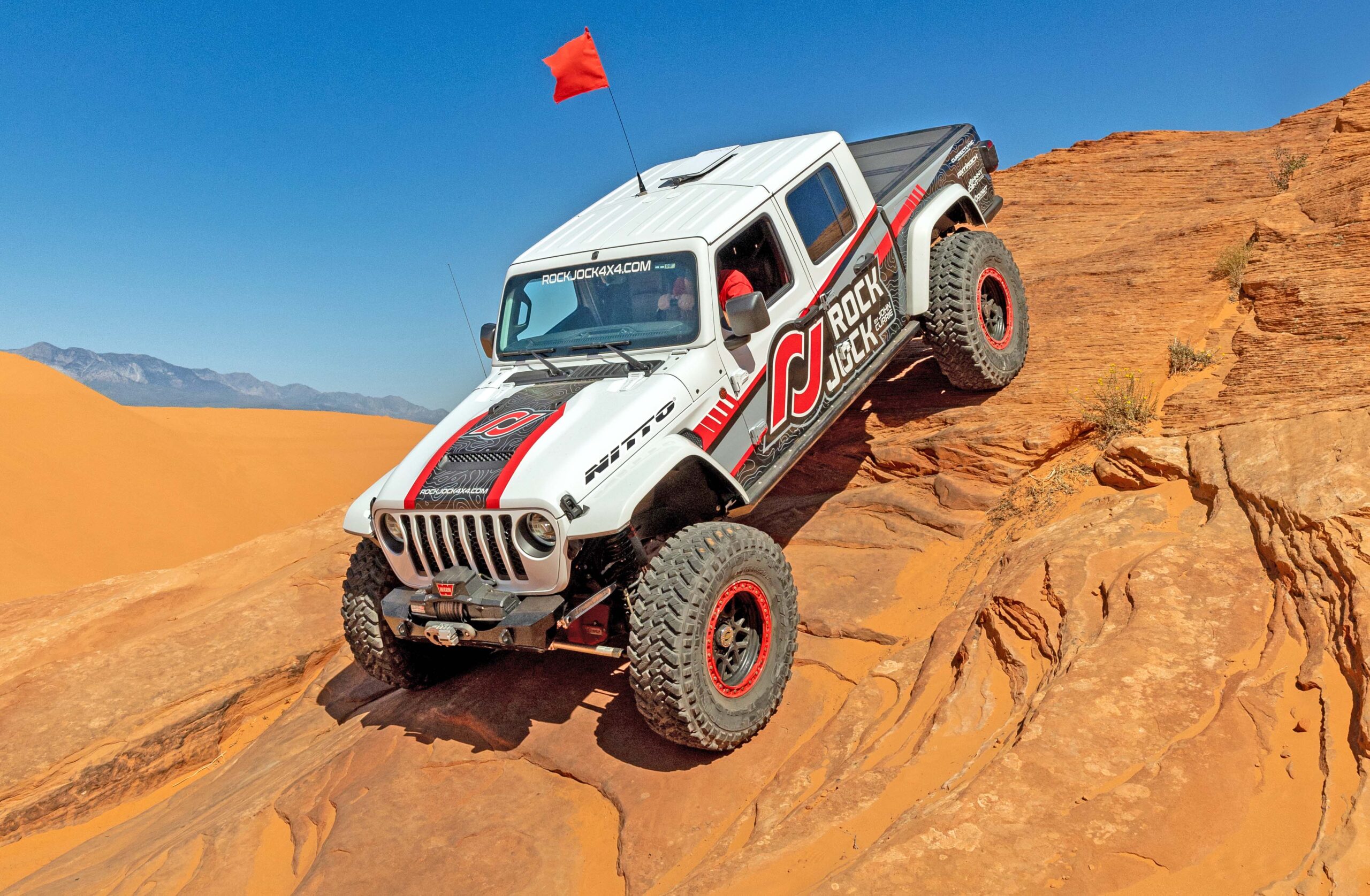

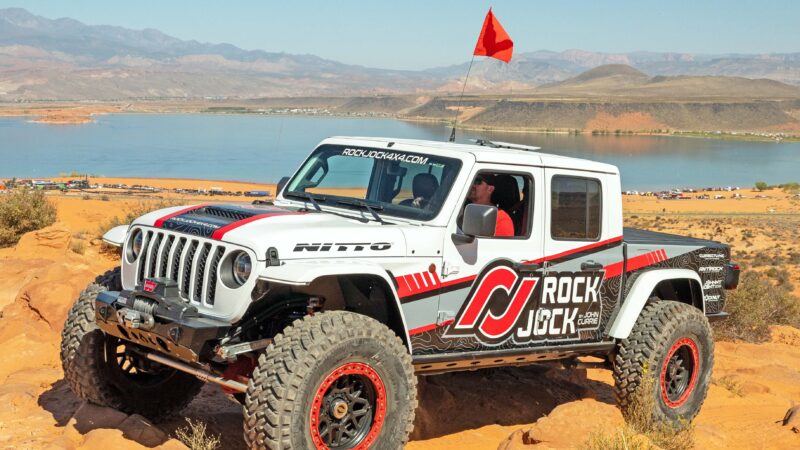

It's final configuration is what you see here, a 1-ton axle, 42" tire, literally go anywhere rock crawler - while still remaining a daily driver.
Drivetrain consists of the stock 3.6L V-6, stock automatic transmission and stock transfer case. Interior is 100% stock.
Our builds are constantly evolving when new ideas come along, so if you've seen this vehicle once - it'll probably be different by the next time you see it!
Tech Sheet
Chassis
- Body Mounts: JEEP - Stock Jeep JT Gladiator.
- Brackets: RockJock 4×4 by John Currie - RockJock 4x4 geometry correction brackets. All other brackets are stock Jeep JT Gladiator.
- Brake booster: JEEP - Mopar bolt-on upgrade kit.
- Brake Calipers: Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
JEEP - Brake Pads: Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
JEEP - Brake Rotors: Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
JEEP - Brakes: Ford Motor Company - Ford F-350 front, stock Jeep JT Gladiator rear.
JEEP - Bushings: RockJock 4×4 by John Currie - Replaced with RockJock 4x4 Johnny Joints.
- Cables: JEEP - Stock Jeep JT Gladiator.
- Control Arms: RockJock 4×4 by John Currie - Billet Aluminum RockNut Control Arms from RockJock 4x4 with Johnny Joints at all points.
- E-Brake: JEEP - Stock Jeep JT Gladiator.
- Frame: JEEP - Stock Jeep JT Gladiator.
- Fuel Tank: JEEP - Stock Jeep JT Gladiator.
- Gaskets: Mopar - Stock Jeep JT Gladiator.
- Links/Kits: RockJock 4×4 by John Currie - All 8 control arms and both trac bars are adjustable length Johnny Joint from RockJock 4x4 (billet aluminum RockNut control arms)
- Master Cylinder: JEEP - Mopar bolt-on upgrade kit.
- Panhard Rod: RockJock 4×4 by John Currie - Adjustable length front and rear with Johnny Joints at both ends from RockJock 4x4.
- Plumbing/Fittings/Hoses: JEEP - Stock Jeep JT Gladiator.
- Power Steering Pump: PSC Motorsports - PSC for ram assist steering.
- Power Steering Reservoir: PSC Motorsports - PSC for ram assist steering.
- Rod Ends: RockJock 4×4 by John Currie - Johnny Joints from RockJock 4x4 at every point.
- Shocks: Fox
- Skid Plates: Artec Industries
- Spindles: Ford Motor Company - F-350 ball joint knuckles and F-350 unit bearings.
- Springs: RockJock 4×4 by John Currie - 3.5" lift from RockJock 4x4.

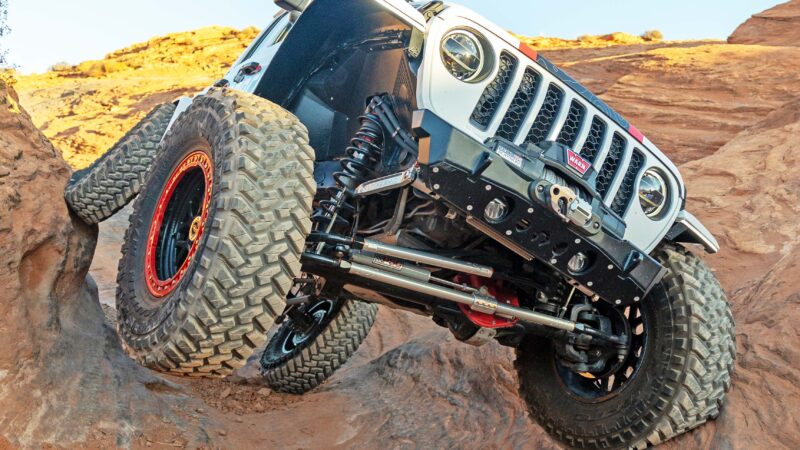

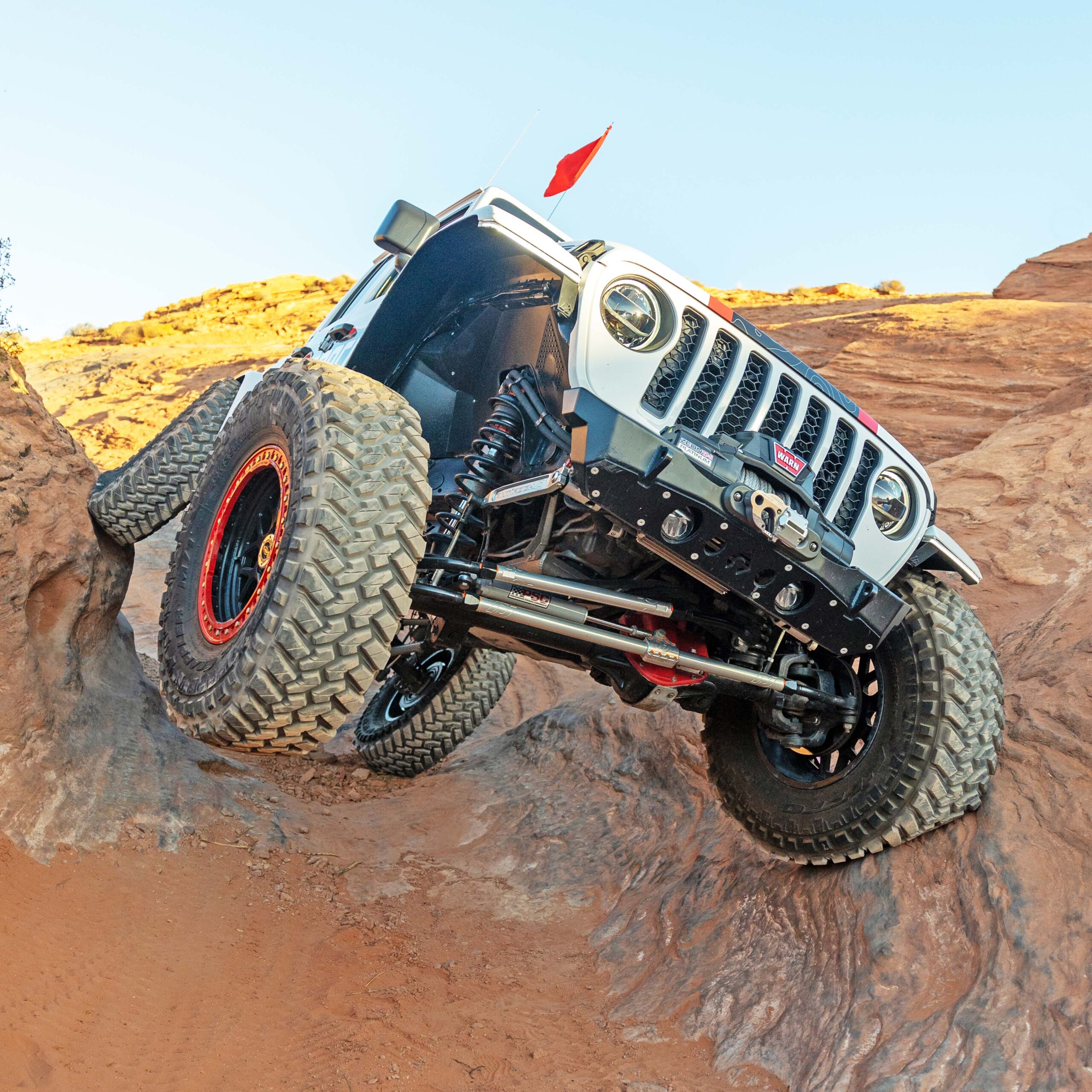

- Steering: PSC Motorsports - RockJock 4x4's RockNut Billet Aluminum Tie Rod and Drag Link. 8" stroke PSC ram.
RockJock 4×4 by John Currie - Suspension Kit: RockJock 4×4 by John Currie - RockJock 4x4's Pro Edition 3.5" lift Johnny Joint Suspension System upgraded with RockJock's billet aluminum RockNut control arms.
- Sway Bars: RockJock 4×4 by John Currie - RockJock's Antirock Sway Bars front and rear with all billet aluminum options (arms/frame brackets).
- Trailing Arms: RockJock 4×4 by John Currie - All 8 adjustable billet aluminum RockNut Johnny Joint arms from RockJock 4x4.
- Winch: Warn Industries, Inc.
Drivetrain
- Axle Housing: Currie Enterprises - Currie 60 front / Currie 70 rear.
- Axle/CV shaft: Currie Enterprises - 35 spline front w/ 1350 u-joints / 40 spline rear (full floating)
- Bearings: The Timken Company
- Differential: Currie Enterprises - Currie 60 front / Currie 70 rear.
- Differential Cover: Currie Enterprises - Currie 60 front / Currie 70 rear.
- Differential Vent: Currie Enterprises
- Driveshaft: JE Reel Driveline
- Fasteners: JEEP - Stock Jeep JT Gladiator.
- Locker: EATON - Eaton E-Lockers front and rear.
- Locking Hubs: Warn Industries, Inc.
- Lubricants: Torco
- Ring/Pinion: Motive Gear - 5.38 ratio.
- Shifter: JEEP - Stock Jeep JT Gladiator.
- Tires: Nitto Tire U.S.A. Inc. - 42" x 13.50" x 20".
- Transfer Case: JEEP - Stock Jeep JT Gladiator.
- Transmission: JEEP - Stock Jeep JT Gladiator.
- U Joints: Spicer Drivetrain Products - 1350.
- Wheels: KMC Wheels - 17" x 9 1/2" x 4.5" backspace.
- Yoke: Spicer Drivetrain Products - 1350.
Engine
- Alternator: JEEP - Stock Jeep JT Gladiator.
- Block: Mopar - Stock Jeep JT Gladiator.
- Brackets: JEEP - Stock Jeep JT Gladiator.
- Cables: JEEP - Stock Jeep JT Gladiator.
- Camshaft: JEEP - Stock Jeep JT Gladiator.
- Catalytic Converter: JEEP - Stock Jeep JT Gladiator.
- Connecting Rods: JEEP - Stock Jeep JT Gladiator.
- Cooling - Radiator: JEEP - Stock Jeep JT Gladiator.
- Crankshaft: JEEP - Stock Jeep JT Gladiator.
- Cylinder Heads: JEEP - Stock Jeep JT Gladiator.
- Dipstick: JEEP - Stock Jeep JT Gladiator.
- ECU: JEEP - Stock Jeep JT Gladiator.
- Exhaust Components: JEEP - Stock Jeep JT Gladiator.
- Exhaust Mufflers: JEEP - Stock Jeep JT Gladiator.
- Exhaust system: JEEP - Stock Jeep JT Gladiator.
- Fan Shroud: JEEP - Stock Jeep JT Gladiator.
- Fans: JEEP - Stock Jeep JT Gladiator.
- Fasteners: JEEP - Stock Jeep JT Gladiator.
- Filters: JEEP - Stock Jeep JT Gladiator.
- Fuel Filler Neck: JEEP - Stock Jeep JT Gladiator.
- Fuel Filter: JEEP - Stock Jeep JT Gladiator.
- Fuel Injection: JEEP - Stock Jeep JT Gladiator.
- Fuel Lines: JEEP - Stock Jeep JT Gladiator.
- Fuel Management: JEEP - Stock Jeep JT Gladiator.
- Fuel Pump: JEEP - Stock Jeep JT Gladiator.
- Fuel Rails: JEEP - Stock Jeep JT Gladiator.
- Fuel Regulator: JEEP - Stock Jeep JT Gladiator.
- Gaskets: JEEP - Stock Jeep JT Gladiator.
- Heat Barrier: JEEP - Stock Jeep JT Gladiator.
- Hoses: JEEP - Stock Jeep JT Gladiator.
- Ignition: JEEP - Stock Jeep JT Gladiator.
- Ignition Coils: JEEP - Stock Jeep JT Gladiator.
- Injectors: JEEP - Stock Jeep JT Gladiator.
- Intake Manifold: JEEP - Stock Jeep JT Gladiator.
- Lifters: JEEP - Stock Jeep JT Gladiator.
- Lubricants: Torco
- Motor Mounts: JEEP - Stock Jeep JT Gladiator.
- Oil Pump: JEEP - Stock Jeep JT Gladiator.
- Overflow Tank: JEEP - Stock Jeep JT Gladiator.
- Pistons: JEEP - Stock Jeep JT Gladiator.
- Plumbing/Fittings: JEEP - Stock Jeep JT Gladiator.
- Pulleys: JEEP - Stock Jeep JT Gladiator.
- Pushrods: JEEP - Stock Jeep JT Gladiator.
- Rings: JEEP - Stock Jeep JT Gladiator.
- Rocker Arms: JEEP - Stock Jeep JT Gladiator.
- Serpentine System: JEEP - Stock Jeep JT Gladiator.
- Spark Plug Wires: JEEP - Stock Jeep JT Gladiator.
- Spark Plugs: JEEP - Stock Jeep JT Gladiator.
- Starter: JEEP - Stock Jeep JT Gladiator.
- Surge Tank: JEEP - Stock Jeep JT Gladiator.
- Throttle Body: JEEP - Stock Jeep JT Gladiator.
- Timing Components: JEEP - Stock Jeep JT Gladiator.
- Tuning: JEEP - Stock Jeep JT Gladiator.
- Valve Covers: JEEP - Stock Jeep JT Gladiator.
- Valve Springs: JEEP - Stock Jeep JT Gladiator.
- Valves: JEEP - Stock Jeep JT Gladiator.
- Water Pump: JEEP - Stock Jeep JT Gladiator.
- Wiring Harness - Engine: JEEP - Stock Jeep JT Gladiator.
Exterior
- Body Panels: JEEP - Stock Jeep JT Gladiator.
- Bumpers: Artec Industries
- Door Handles: JEEP - Stock Jeep JT Gladiator.
- Doors: JEEP - Stock Jeep JT Gladiator.
- Emblems: JEEP - Stock Jeep JT Gladiator.
- Fender Flares: American Adventure Lab - High-line fender braces with daytime running lights.
- Grille: JEEP - Stock Jeep JT Gladiator.
- Headlights: JEEP - Stock Jeep JT Gladiator.
- Hinges - Hood: JEEP - Stock Jeep JT Gladiator.
- Hood: JEEP - Stock Jeep JT Gladiator.
- Hood Latch: JEEP - Stock Jeep JT Gladiator.
- Mirrors: JEEP - Stock Jeep JT Gladiator.
- Paint & Primers: JEEP - Stock Jeep JT Gladiator.
- Rock sliders: EVO Manufacturing
- Tail Lights: JEEP - Stock Jeep JT Gladiator.
- Trim: JEEP - Stock Jeep JT Gladiator.
- Weather Stripping: JEEP - Stock Jeep JT Gladiator.
- Windows: JEEP - Stock Jeep JT Gladiator.
- Windshield Wipers: JEEP - Stock Jeep JT Gladiator.
Interior
- Cage: JEEP - Stock Jeep JT Gladiator.
- Carpeting: JEEP - Stock Jeep JT Gladiator.
- Center Console: JEEP - Stock Jeep JT Gladiator.
- Dash: JEEP - Stock Jeep JT Gladiator.
- Door Handles: JEEP - Stock Jeep JT Gladiator.
- Door Panels: JEEP - Stock Jeep JT Gladiator.
- Floor Mats: JEEP - Stock Jeep JT Gladiator.
- Gauges: JEEP - Stock Jeep JT Gladiator.
- Harnesses/Belts: JEEP - Stock Jeep JT Gladiator.
- Head Unit: JEEP - Stock Jeep JT Gladiator.
- Heat & AC: JEEP - Stock Jeep JT Gladiator.
- Lighting: JEEP - Stock Jeep JT Gladiator.
- Navigation: JEEP - Stock Jeep JT Gladiator.
- Pedal Assembly: JEEP - Stock Jeep JT Gladiator.
- Pedals: JEEP - Stock Jeep JT Gladiator.
- Power Windows: JEEP - Stock Jeep JT Gladiator.
- Seat Covers: JEEP - Stock Jeep JT Gladiator.
- Seats: JEEP - Stock Jeep JT Gladiator.
- Shift Knob: JEEP - Stock Jeep JT Gladiator.
- Speakers: JEEP - Stock Jeep JT Gladiator.
- Steering Column: JEEP - Stock Jeep JT Gladiator.
- Steering Wheel: JEEP - Stock Jeep JT Gladiator.
- Switch Control: JEEP - Stock Jeep JT Gladiator.
- Trim: JEEP - Stock Jeep JT Gladiator.
- Upholstery: JEEP - Stock Jeep JT Gladiator.
- Wiring: JEEP - Stock Jeep JT Gladiator.
- Wiring Harness: JEEP - Stock Jeep JT Gladiator.
