Vehicle Quick Facts

Profile ID: 42948
Year: 2015
Make: ULTRA4
Model: 4400 Unlimited
Markets: Off Road, Racing
Vehicle Type: American
Contact: Projects CBN 2

Loading

Advertisement

Vehicle Story

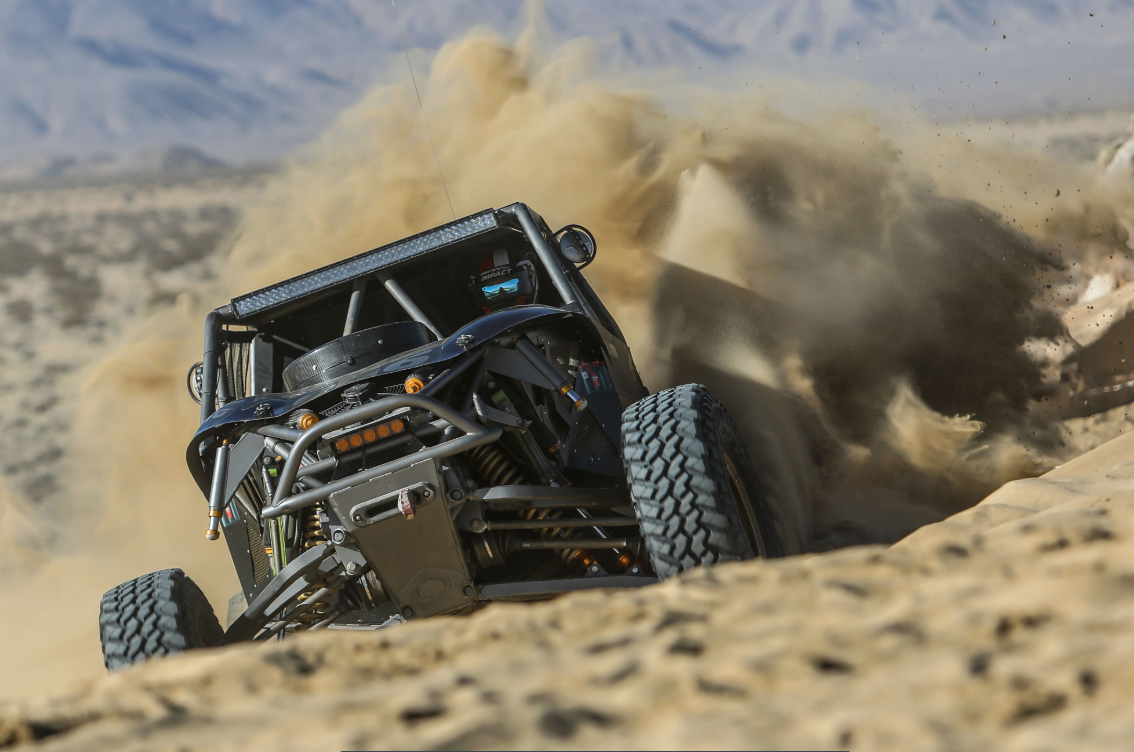

Jimmys 2 seat dragon

Front engine

20” front travel, 22” rear travel

  • Engine- All aluminum Dart Big Block 583ci, Short deck raised cam, Winberg crank, Callies connecting rods, JE pistons, Bullet custom cam, T&D rockers , AFR heads, Holley intake, Oiler valve covers, ATI dampener, Moroso 5 stage dry sump, 13:1 comp, Holley Dominator engine management, Holley brushless fuel pump, 2x Holley EFI dashes, Meziere billet water pump, DC power Alternator, ID Designs front engine accessory plate
  • Trans- Gearworks Reid SH400, billet internals, Cone converter
  • Atlas 3:1 Race case
  • Spidertrax rear axle, 40spline Spidertrax 300m shafts
  • Spidertrax front diff, 40 spline Spidertraxs 300m shafts
  • RCV series 30 cvs
  • Spidertrax chromoly Brake’s with StopTech calipers
  • King Shocks. 3.0 5 tube 14” front bypasses, 3.5” 5 tube 16” rear bypasses, 2.0” air bumps. All shocks newly rebuild and coated by KDM Shocks
  • Elrods limiting straps
  • Pyrotec 50gal fuel cell
  • Power steering solutions TT pump, servo and rack
  • Ron Davis radiator
  • Ron Davis heat exchanger for trans, and 24x14 radiator
  • Ron Davis engine oil radiator
  • CBR steering radiator
  • Spidertrax Pro series unit bearings 6 on 5.5”
  • Trailready 17” beadlocks 9 total wheels
  • 150w Rugged Radios radio and intercom
  • Lowrance 7.5” Touch screen GPS
  • OMP rally seats
  • Brand new Crow seat 5 point belts
  • 2x Optima yellow top batteries



Spare parts

  • Front and rear Spidertrax 300m axles shafts
  • 2 New Spidertrax unit bearings
