Aldan American C10
FollowVehicle Quick Facts
Profile ID: 39703
Year: 1971
Make: Chevrolet
Model: C-10 Pickup
Markets: Driven Daily, Performance, Racing, Resto-Mod, Truck
Vehicle Type: American
Contact: Projects CBN 2
Vehicle Story
Notes:
Engine - 1999 Chevy Camaro 5.7L LS1, Transmission - 2001 Chevy Camaro T56 6-Speed, Clutch - 2014 Chevy Corvette LS7
Custom trailing arms with coil-over setup, c-notch.
Build Sheet
Manufacturers
- Aldan American - Front: Regulator Series coil-overs, Part # AS-656RS (13.0") coil-springs, Part # 9-600BK2 (2.5" ID x 9" x 600 lb) Rear: Regulator Series coil-overs, Part # AS-658RS (16.5"), coil-springs, Part # 12-300BK2 (2.5" ID x 12" x 300 lb)
- Dakota Digital - Gauges
- EATON - 4:11 Ring & pinnion
- Hurst Shifters - Shifter
- Intro Wheels - "Bullet" - 18x10 Front, 18x12" Rear (Powdercoated Black)
- McLeod Racing - RST Twin Disc Clutch with McLeod Hydraulic Throwout Bearing
- Nitto Tire U.S.A. Inc. - 555R, 285/35ZR18 front, 335/30ZR18 rear
- Performance Online (POL) - 1960-72 C10 tubular trailing arms (Set), Part # TTA6072, 1963-72 trailing arm crossmember, Part # DDX6372
- RECARO - Seats
- Scott’s Hotrods - 67-72, C10 Bolt-In IFS
- Sparco - Steering Wheel

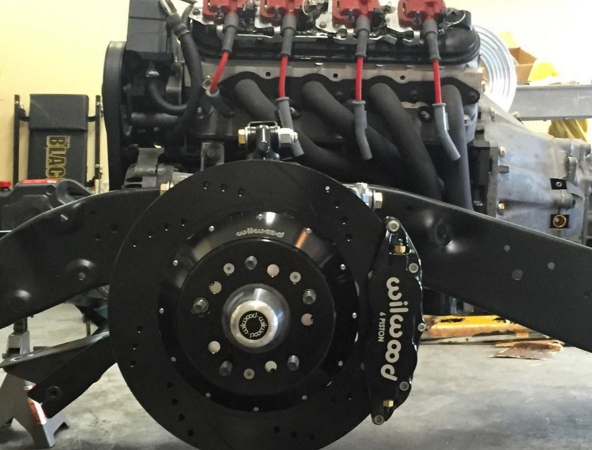

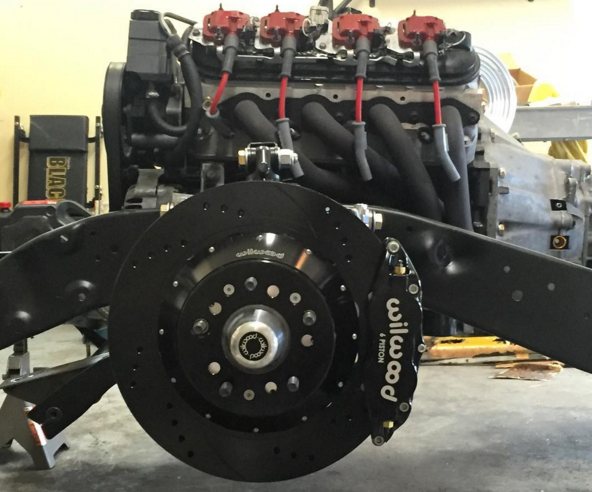

- Wilwood Disc Brakes - Wilwood master cylinder, Part # 260-9439, Pro Spindles (2 Inch Drop) Part # 830-9807, Disc Brakes, 14" Front, Part # 140-9920-D, E-Coat & BP-20 brake pads, 12" Rear, Part # 140-12569-D, E-Coat & BP-20 brake pads
Shops
Services
- Brothers Mail Order Inc - Sheet Metal
- Busted Knuckles Design - Design Rendering
- Outlaw Kustoms - Watts Link
